THE GF-MAXI SHOCK ABSORBER.

Reduce high & low frequency vibrations and hard impact shocks during high speed chases on rough and bumpy terrain.

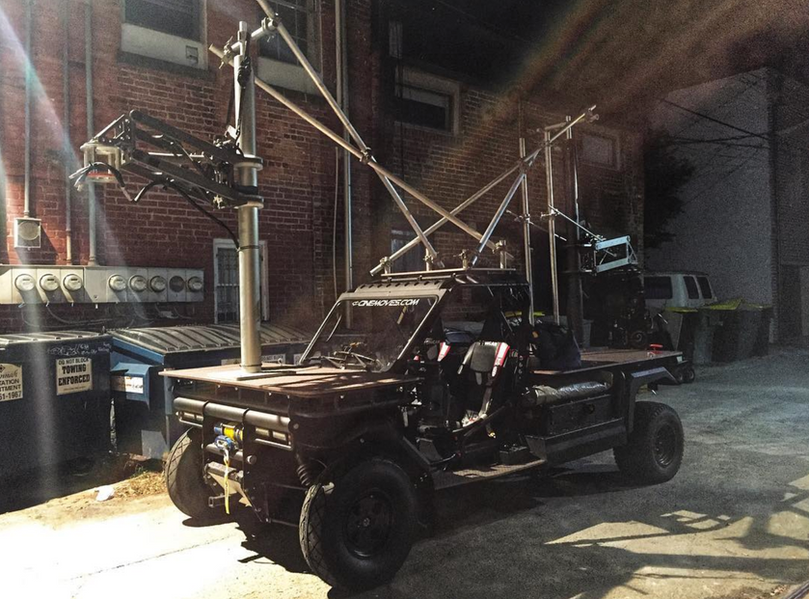

TRACKING VEHICLE CONNECTION

maxi-shock-tracking-vehicle-connection

OVERSLUNG / UNDERSLUNG

OVERSLUNG MODE
UNDERSLUNG MODE

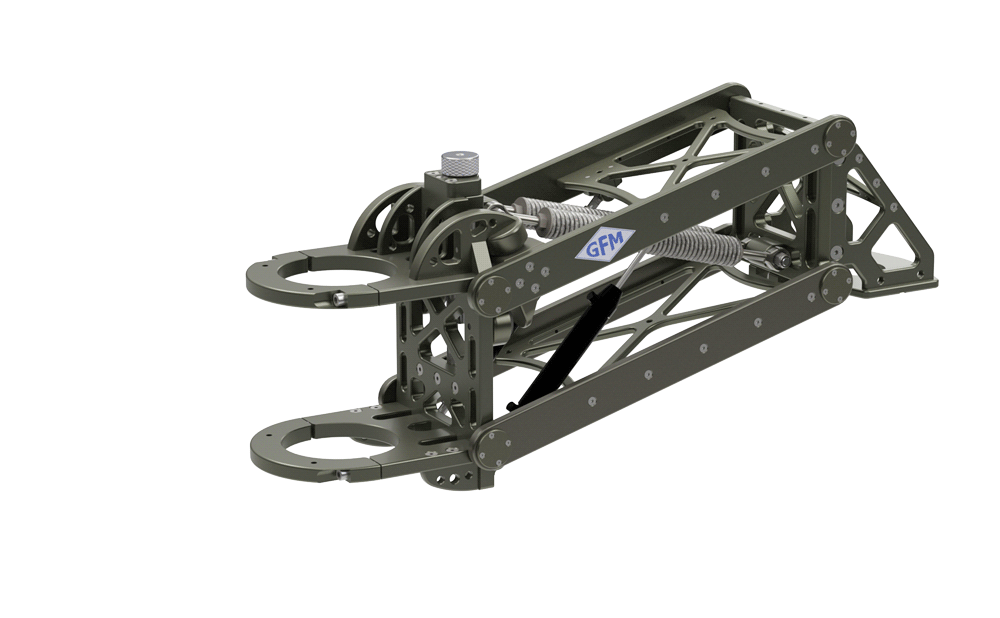

GF-MAXI SHOCK ABSORBER
TECH SPECS.

The GF-MAXI SHOCK ABSORBER is for use with stabilized heads to reduce high & low frequency vibrations and hard impact shocks during high speed chases on rough and bumpy terrain. The best results are achieved when used with the GF-ISO DAMPENER.



The Maxi Shock Absorber allows for individual adjustment and setting, depending on the choice of stabilized head and taking into consideration the terrain of the shooting environment.

​

It connects to 48 mm scaffold tubes or 150/130 mm pole systems. It allows for 180° horizontal adjustment range as well as over- and underslung operation.

WEIGHT
41 kg / 90 lbs

PAYLOAD
up to 100 kg / 220 lbs

LIFT RANGE
30 cm / 11"

TEMPERATURE RANGE
-20 to 50°C / -4 to 122°F

DIMENSIONS
103 x 26 x 40 cm / 40" x 10" x 15"

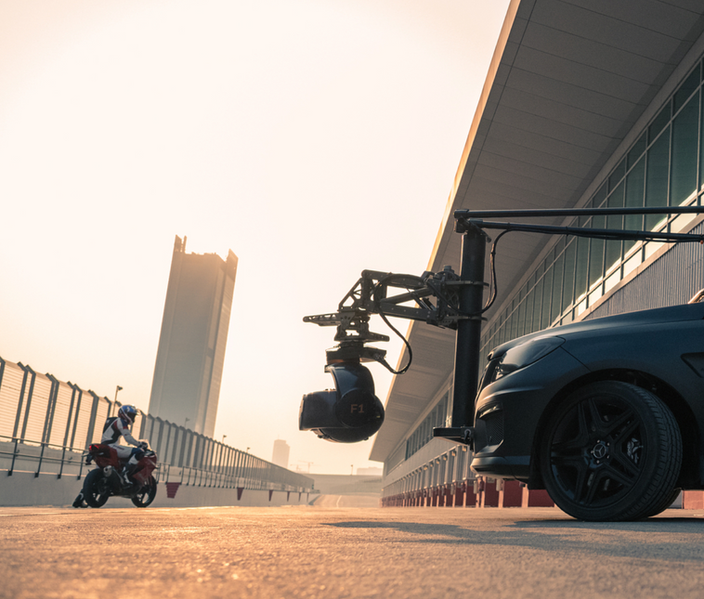

GF-MAXI SHOCK ABSORBER ON SET.
