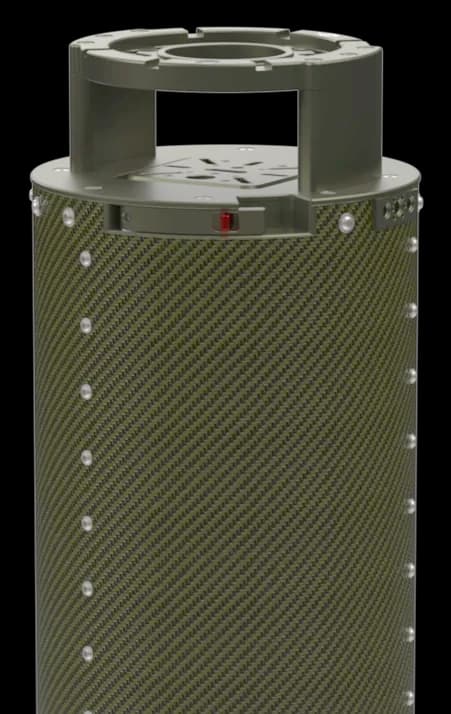

GFM top mount
The GFM top mounting system takes all existing GFM inserts.
GF-NEO Column
Ultra-light carbon power for every production.
A 16 kg carbon column that lifts 32 kg through 780 mm of travel in about 1.5 seconds. Overslung or underslung, it works on film sets, in broadcast studios and on live stages.
- Weight
- 16 kg
- Payload
- 32 kg
- Lift
- 780 mm
- Full travel
- 1.5 s

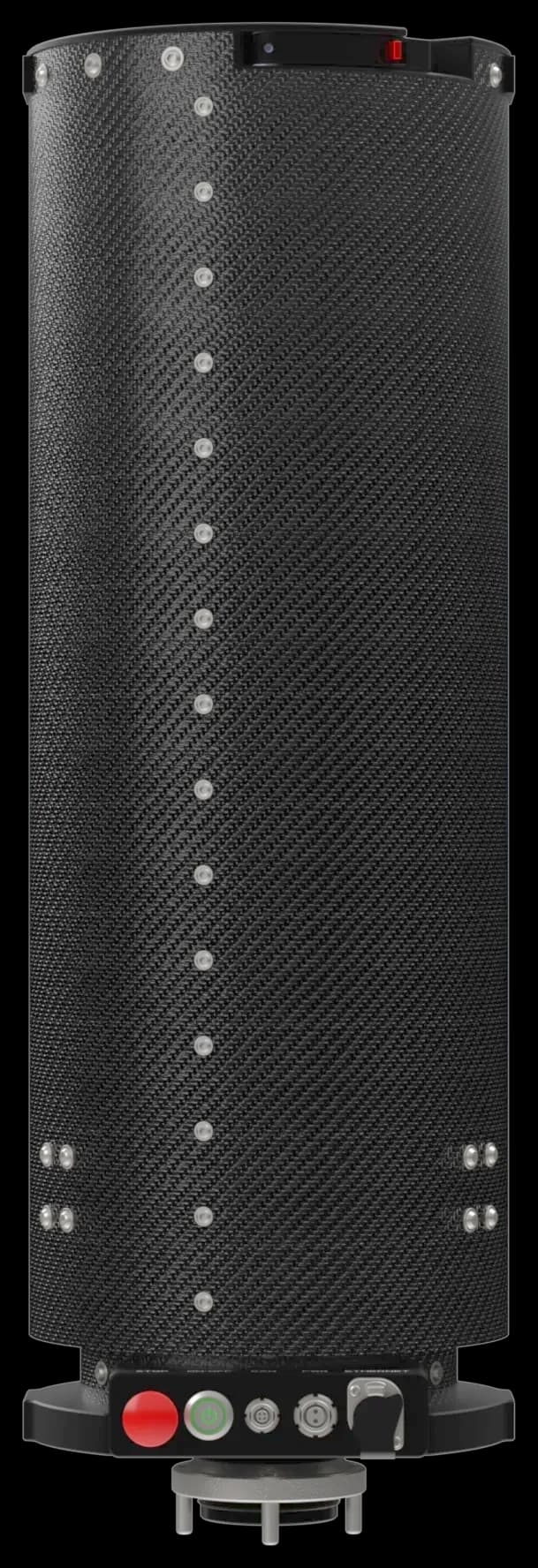

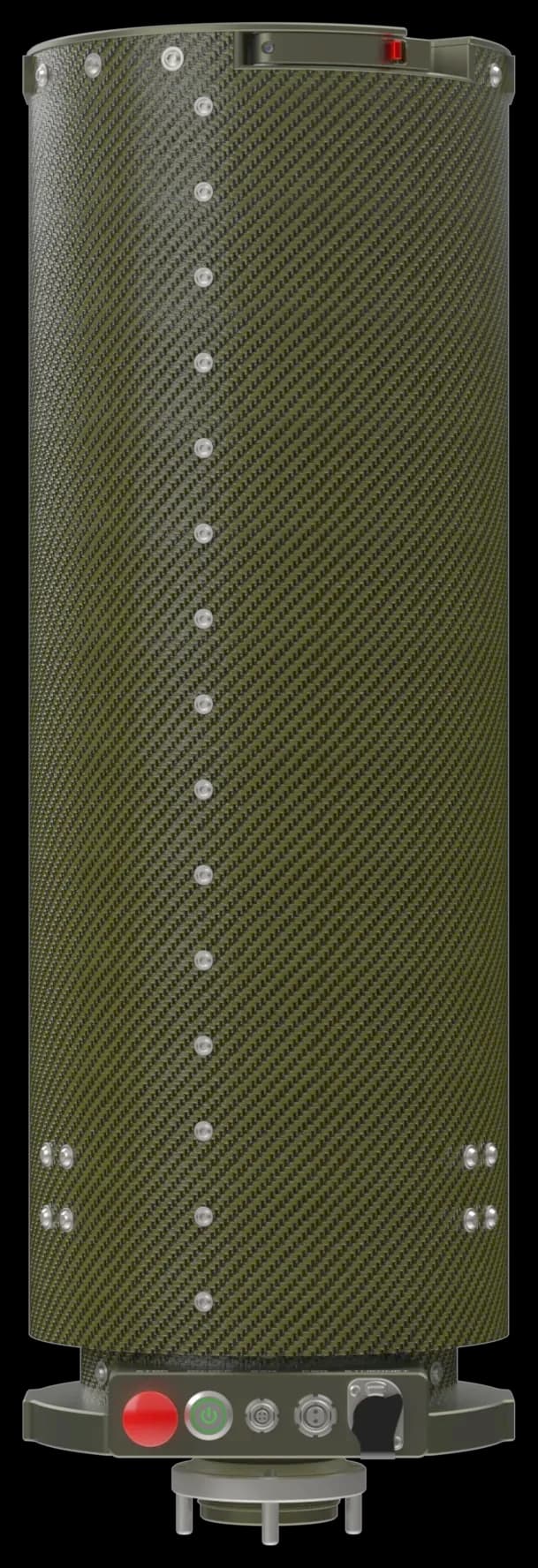

Sixteen kilos of column, in carbon.
Carbon fiber is a first for GFM. It brings the column to 16 kg, light enough for one grip to carry and stiff enough for a 32 kg remote head. The 48 V drive is quiet under way, and the 240 mm column takes up little floor on a crowded set.
One column. Every rig.
The column stays. The rig changes — overslung or underslung, on the gear you already own.

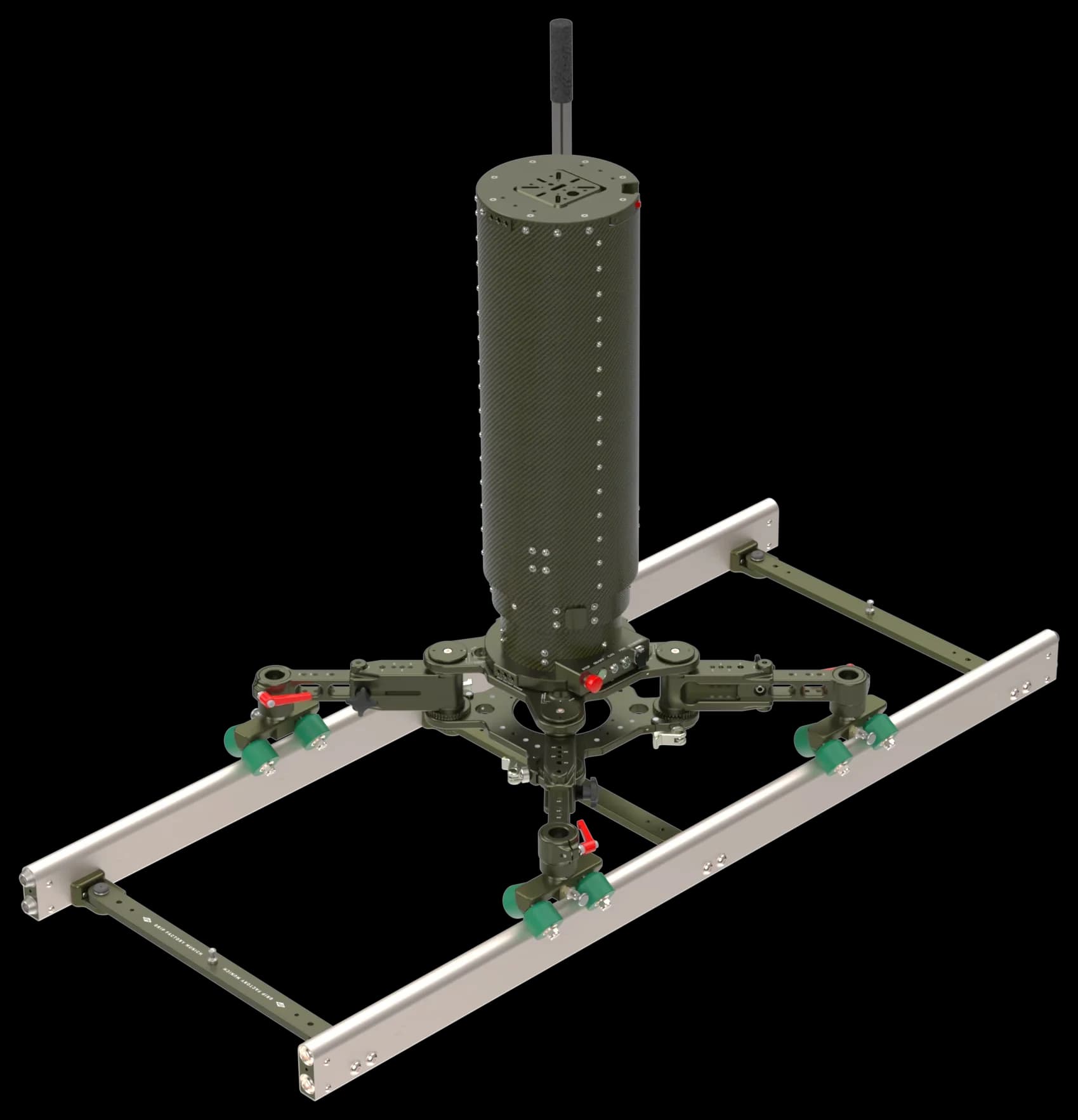

01 Turtle base on track · overslungLow mode on track for ground-level moves.

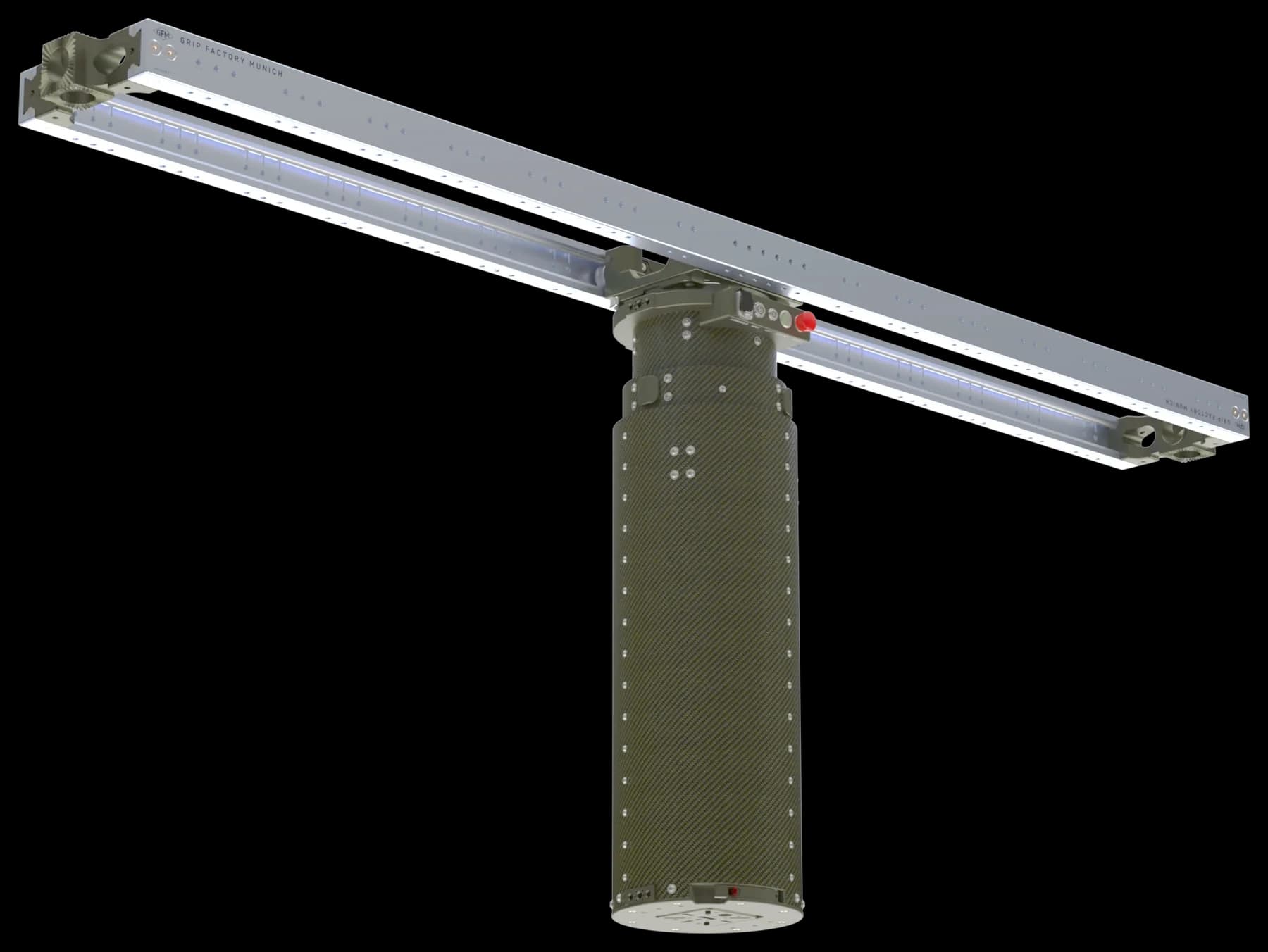

02 Slider · underslungHung under a slider: inverted travel over the set.

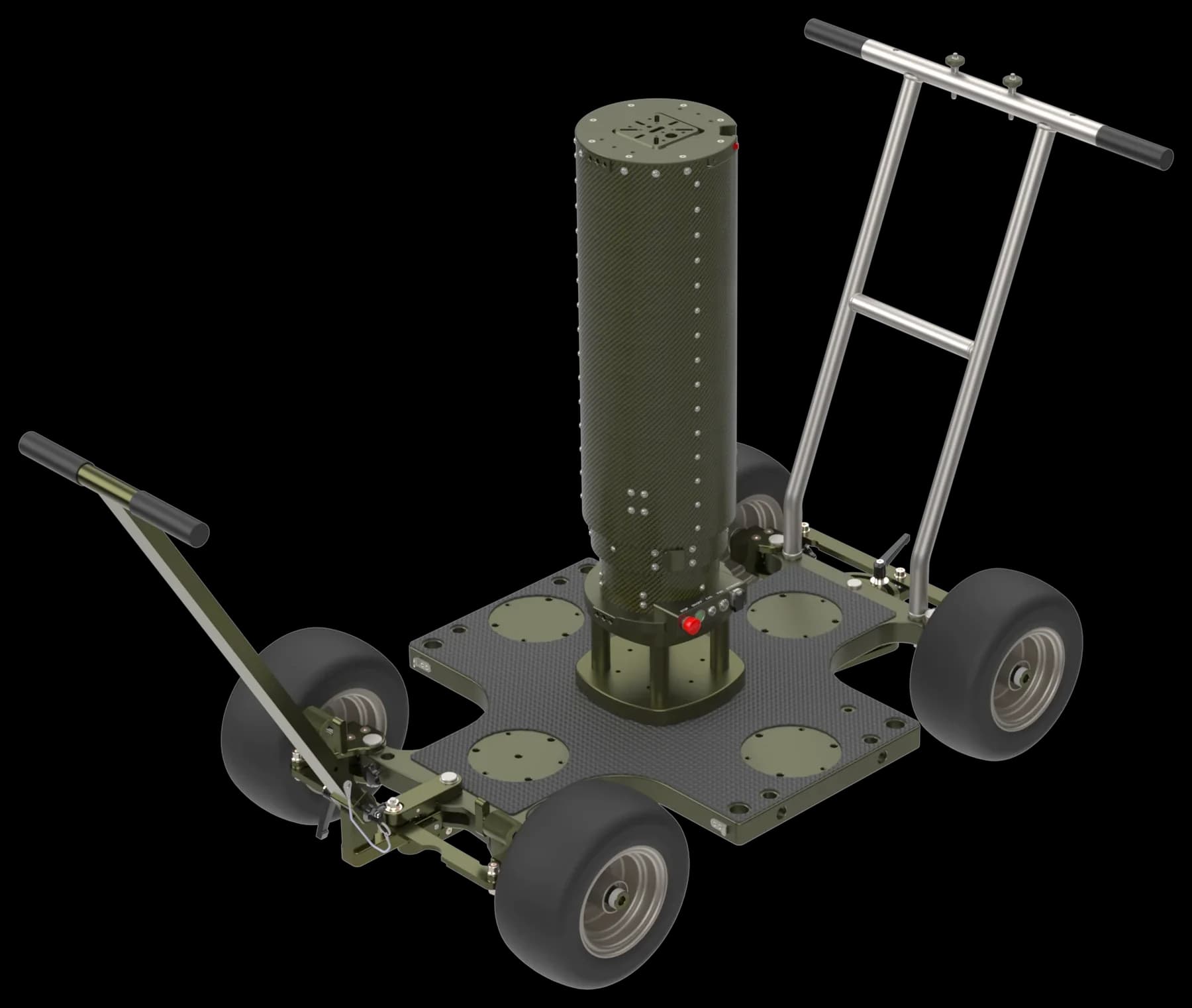

03 Quad dolly · overslungThe classic build: column on dolly, ready to push.

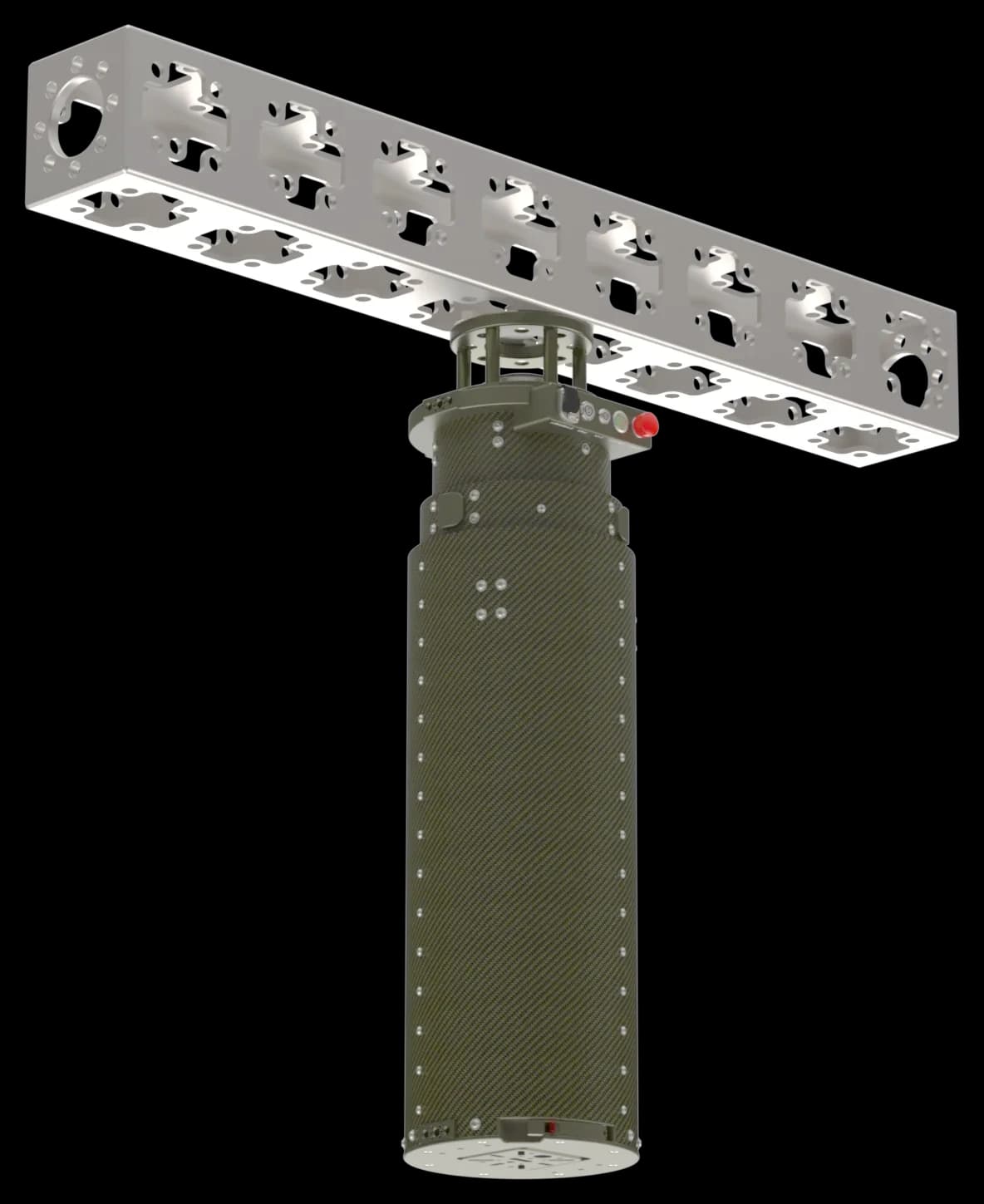

04 Modulus-X® truss · underslungUnder truss, for broadcast ceilings and live stages.

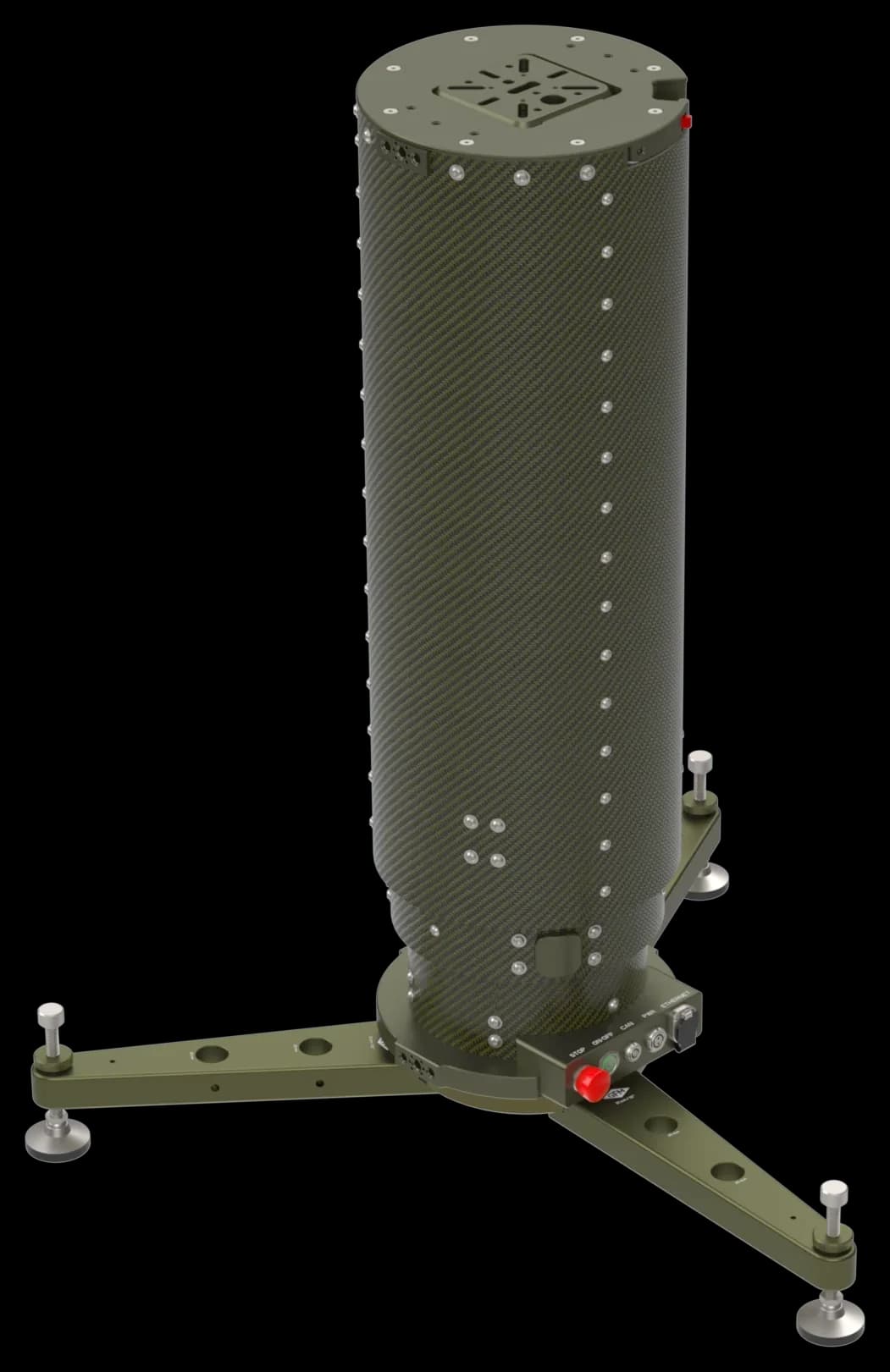

05 Grip Kit · overslungFree-standing on the Grip Kit where no dolly fits.

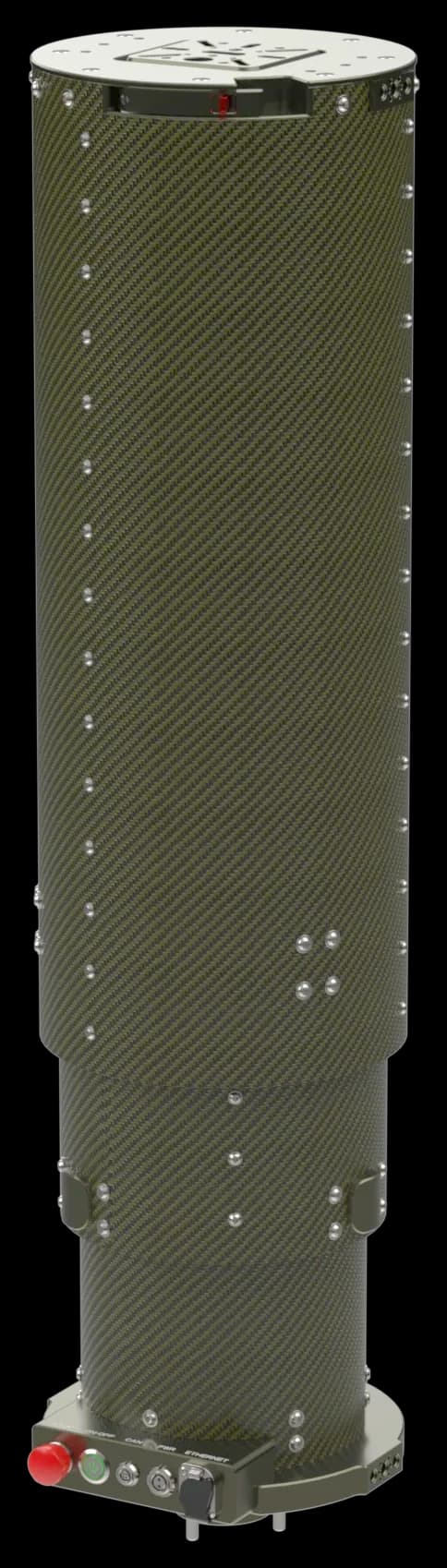

780 mm of lift. About 1.5 seconds.
From 680 mm to 1460 mm, full travel takes around 1.5 seconds — quick enough to use the lift as a move instead of a preset.
Make it yours.
It fits the gear you own.

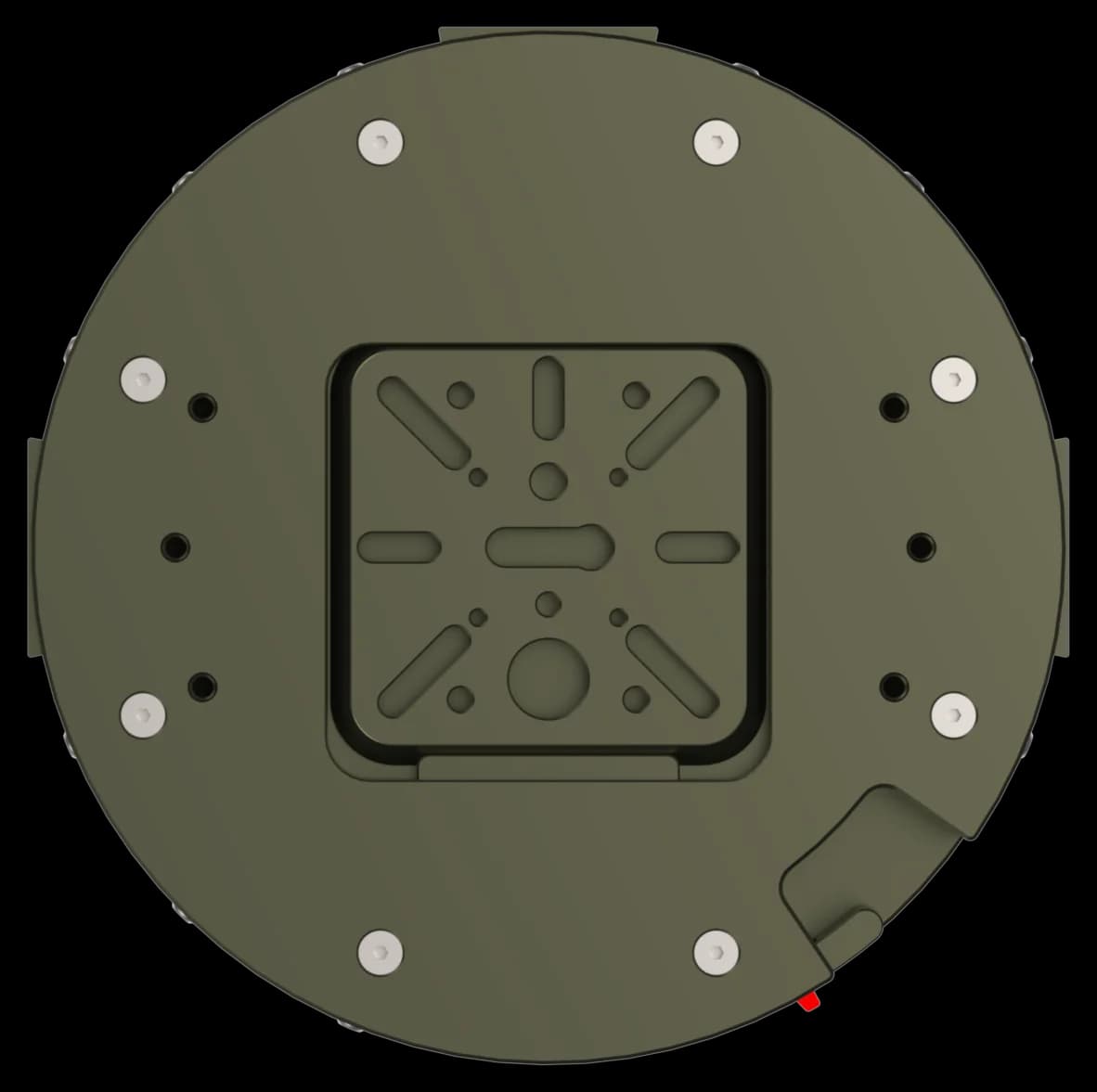

Quick Lock Plate
The alternative Quick Lock Plate takes the common remote heads — FOMA, Shotover, ARRI, Mōvi, Ronin and more.
Two base mounts
Mitchell Mount or Cheese Plate at the base — the crew decides how it rigs.
It rides on the rest of the workshop: dolliestrackbases & rigsslidersModulus-X® truss

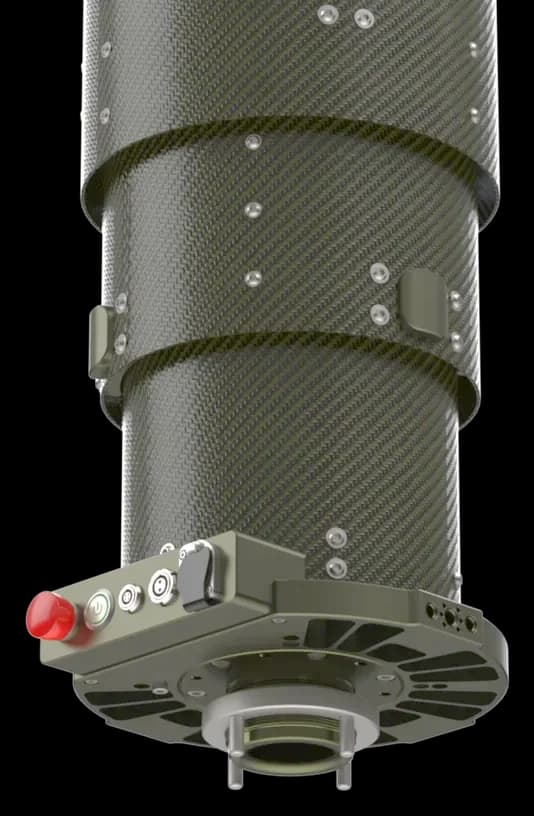

Emergency offPower on/offControlsPowerEthernet *Left to right: emergency off · power on/off · controls · power · Ethernet *
Every control where you expect it.
The base panel follows GFM’s user experience philosophy: emergency off, power and control connections sit exactly where you reach for them.
Two ways to power it
- Mains power supplyStudio and stage power, straight from the wall.
- Battery converterThe PWR-24-48 runs the column from battery packs you already own — anything between 24 and 48 V.

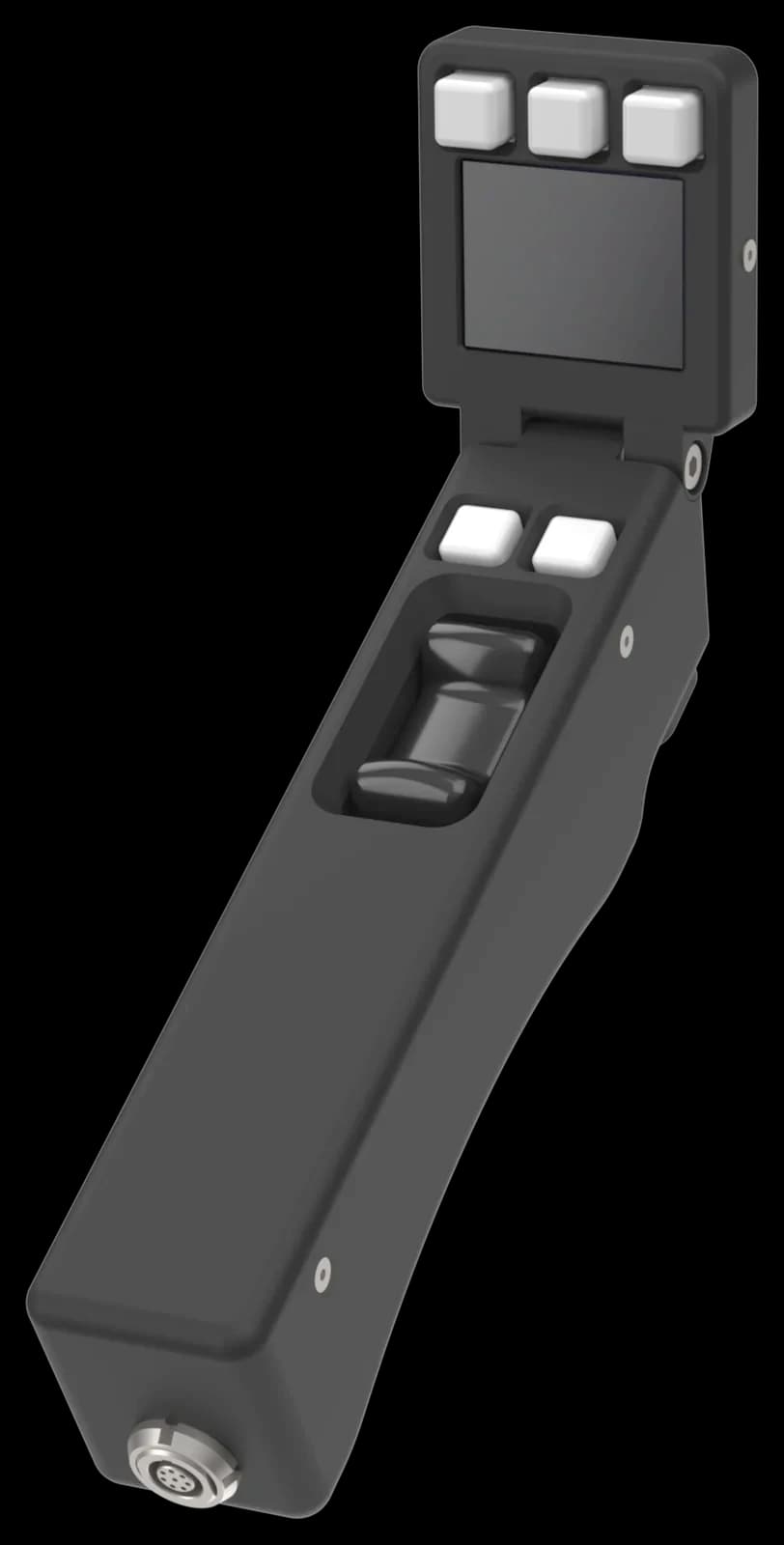

Hand Control Unit
The modern, tiltable HCU sets height limits, column speed and ramps — the display folds up to meet the operator’s eye line. A foot pedal is also available.
GF-NEO Column · Datasheet
| Column diameter | 240 mm | 9.4 in |
|---|---|---|
| Min length | 680 mm | 26.8 in |
| Max length | 1460 mm | 57.5 in |
| Lift | 780 mm | 30.7 in |
| Full travel | ≈ 1.5 s | |
| Weight | 16 kg | 35.3 lb |
| Payload | 32 kg | 70.5 lb |
| Power supply | 48 V |
What a GF-NEO Column ships with.
NEO-1000S is the standard set: the column itself, the hand control, both power supplies and every cable it needs — packed in one Explorer case, ready to travel.
NEO-1000S16 items37.8 kg packed
Rig
- NEO-1000GF-NEO Column
- NEO-1001Quick Lock Plate
- NEO-1003Spider arm
Control
- NEO-1002Hand Control Unit, incl. cable
- NEO-1007CAN control cable, 2 m
- NEO-1008CAN control cable, 5 m
Power supplies
- NEO-1011Mains power supply PWR-230-48
- NEO-1012230 V mains cable, CEE 7/7 to IEC C19
- NEO-1013Battery converter PWR-24-48
- NEO-101424 V battery cable XLR-3, 5 m
Column cables
- NEO-100448 V power cable, 2 m
- NEO-100548 V power cable, 5 m
- NEO-100648 V power cable, 10 m
Transport & tools
- NEO-1015Explorer transport case
- NEO-1009Tool set, 5 / 6 / 8 mm hex keys
- NEO-1010Tool box with spare screws
Other configurations on request.
Get your GF-NEO Column.
Tell us where it goes: studio, stage or set. We answer with the configuration and a quote from Munich.
Get a quote →
or write to info@gripfactory.com
