The GF-QUAD DOLLY has become the preferred light dolly for many camera operators and grips. It’s designed to provide the ultimate in mobility and versatility. With its 3-way steering system the GF-Quad manoeuvres on small sets like no other platform dolly.
provides front, rear and 4-wheel inverted steering
removable steering rod with stepless angle adjustment folds flat for compact storage
quick mount Levelling Legs
quick release pneumatic, track or skateboard wheels (no tools)
removable, telescopic push bar
fits through doorways with ease (width only 74 cm / 29“)
lockable steerage transmission for perfect straight moves or reproduction of circle shots
lightweight, stable design (24 kg / 52 lbs platform weight)
constructed of the highest quality CNC machined parts with Hart-Coat® finish
120 x 74 cm / 47” x 29”
112 x 74 cm / 44” x 29”
120 x 104 cm / 47” x 40”
112 x 104 cm / 44” x 40”
40 kg / 88 lbs
35 kg / 77 lbs
QUAD DOLLY VARIANTS
GF-QUAD DOLLY WITH ADJUSTABLE RISER
GF-QUAD DOLLY /W GF-MINI JIB AND SIDE PLATFORM
GF-QUAD DOLLY /W GF-MINI JIB & LEVELLING LEGS
GF-QUAD DOLLY /W TELESCOPIC PUSHBAR & SKATEBOARD WHEELS ON GF-TRACK
One of the most impressive features of the GF-Quad Dolly is its trend setting, 3 stage steering mode option. Previously unknown in dollies of this class and as of now simply a matter of flicking a switch, to instantly change from, front 2 wheel to 4 wheel to rear 2 wheel steering.
3 steering modes
Smallest circle shot (ø 80 cm)
In addition, the steering rod can now be locked off and fixed at a number of angles by simply inserting a locking pin. Alternatively by removing the same pin, a stepless selection of steering rod angles and heights further improves the maneuverability and handling of the GF-Quad Dolly. The steering rod can be quickly removed when not needed or folded flat onto the dolly for compact storage.
QUICK AND EASY TO MOUNT LEVELLING LEGS
By using the levelling legs the dolly can be quickly levelled on uneven surfaces. The levelling legs also provide a very stable base which is ideal for fast panning shots with jib arms. Even when the levelling legs are mounted the GF-Quad's steering remains fully operational. This allows you to move around on set with the camera and jib arm already assembled, then quickly level the base for the jib arm moves. A further advantage of the levelling legs is that they simplify changing from pneumatic wheels to track or skateboard wheels. Just crank up the base and swap the wheels! Dolly track can be placed under the dolly and the complete system can then be cranked down directly onto the track. The levelling legs can be removed when not required.
The GF-Quad's Push-bar has a telescopic width adjustment so it can be extended for some shots e.g. on track; and narrowed for shots were space is restricted e.g. going through doorways. Unchanged is the feature to mount the push-bar at either end of the dolly.
LOCKABLE STEERAGE TRANSMISSION
The GF-Quad has a lockable steerage transmission for perfect straight moves or reproduction of circle shots.
Side platform with snap lock

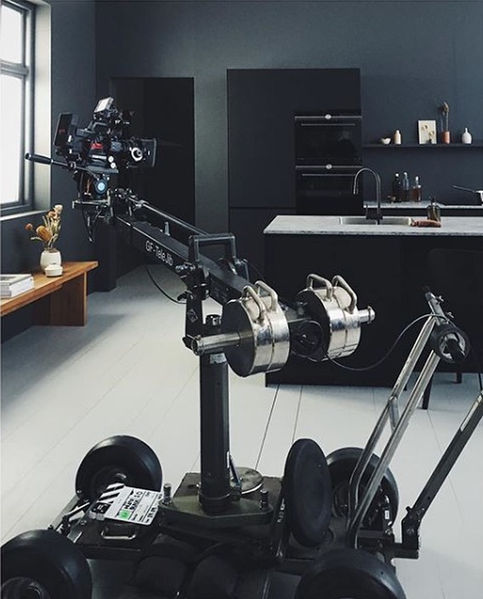

GF-QUAD DOLLY ON SET
