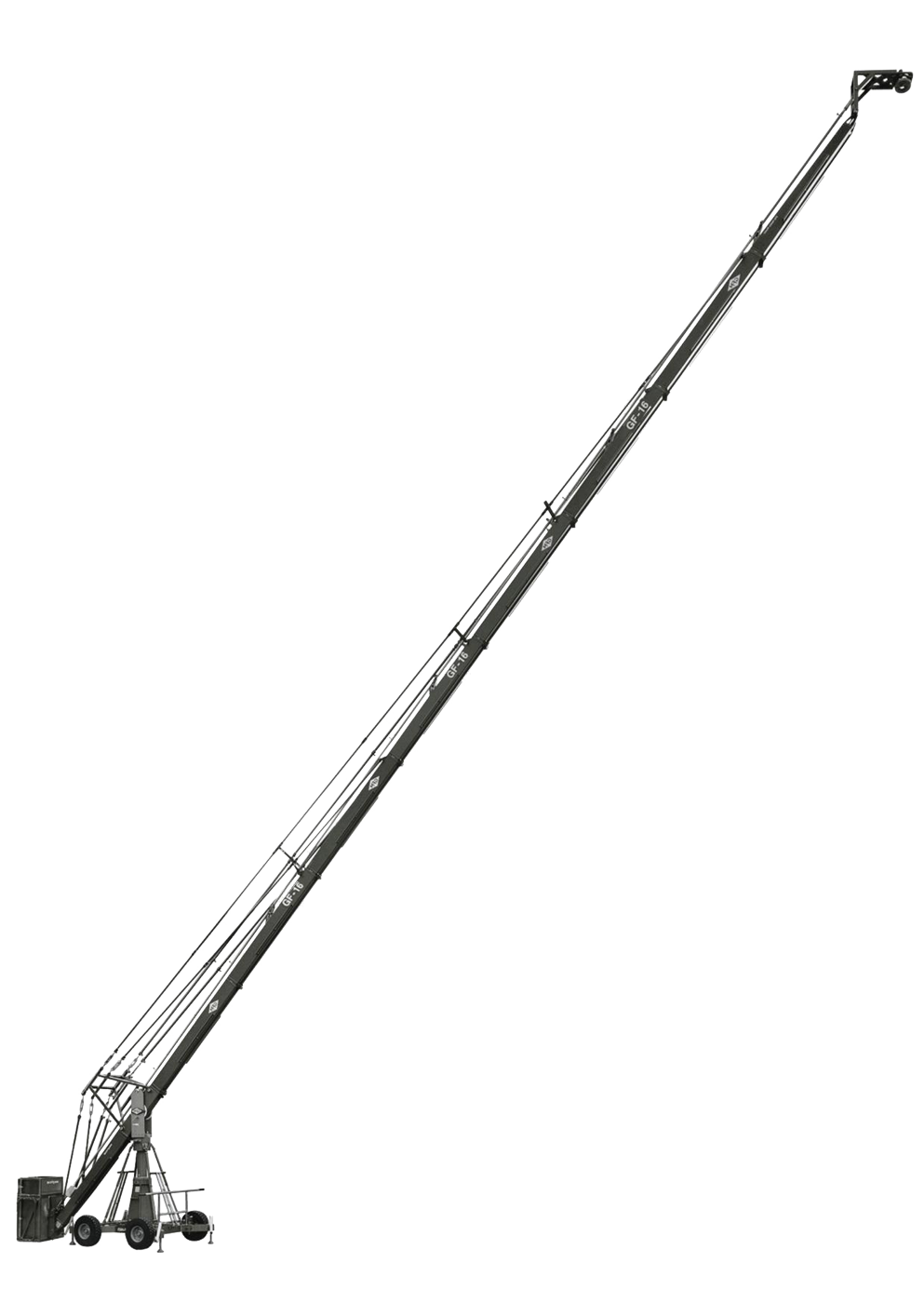

GF-16
The big modular crane, rideable or remote.
The GF-16 is the big crane in the range: modular, rideable and fully remote. It is built around what the operator has to deal with — safety, transport, assembly time, an arm that holds still — and it gives the DOP the reach to build the shot. A remote bracket allows over- and underslung operation, a two-part counterweight bucket keeps handling balanced, and a height-adjustable mounting column on a double-ended-steering base dolly runs smoothly on 100 cm (39") track. Surface-hardened Hart-Coat® finish throughout.
Inquire now →
GF-16 · Datasheet
| Platform · max height | ||
|---|---|---|
| 2 persons | 9 m | 29'6" |
| 1 person | 11.3 m | 37'2" |
| Remote · max height | ||
| w/ 85 kg (187 lbs) | 13 m | 42'6" |
| w/ 80 kg (176 lbs) | 14.5 m | 47'6" |
| w/ 60 kg (132 lbs) | 15.3 m | 50'3" |
| Capacity & build | ||
|---|---|---|
| Track | 100 cm | 39" |
| Operation | 1-/2-person platform & remote | |
| Finish | Hart-Coat® hardened | |
Three operation modes

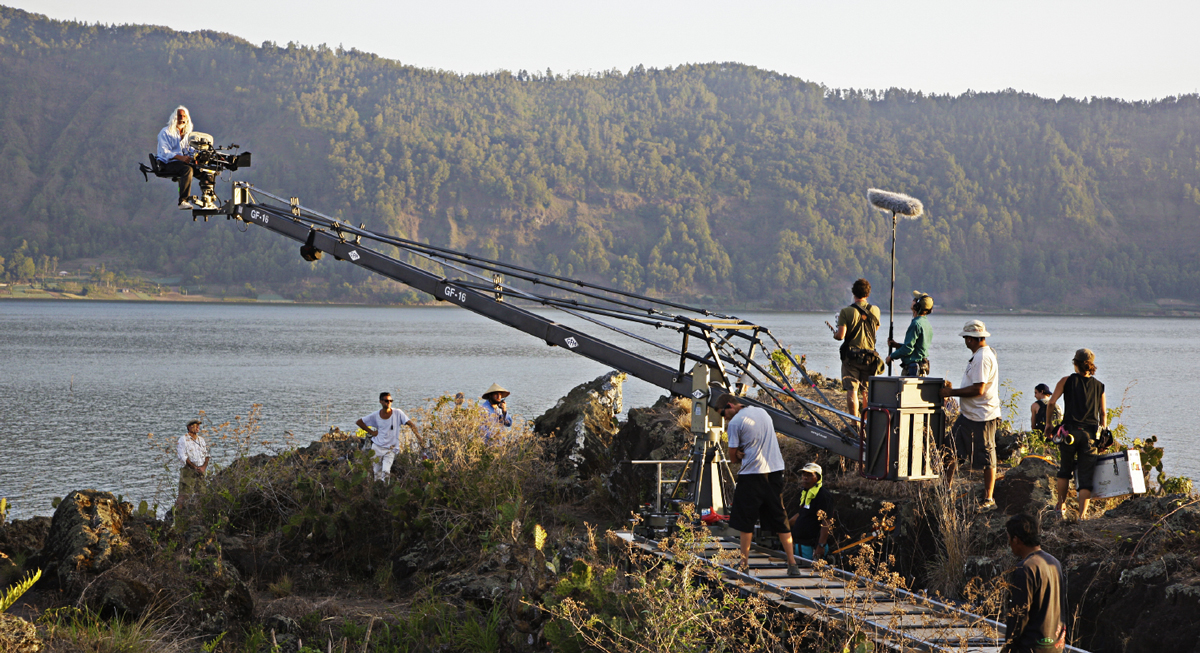

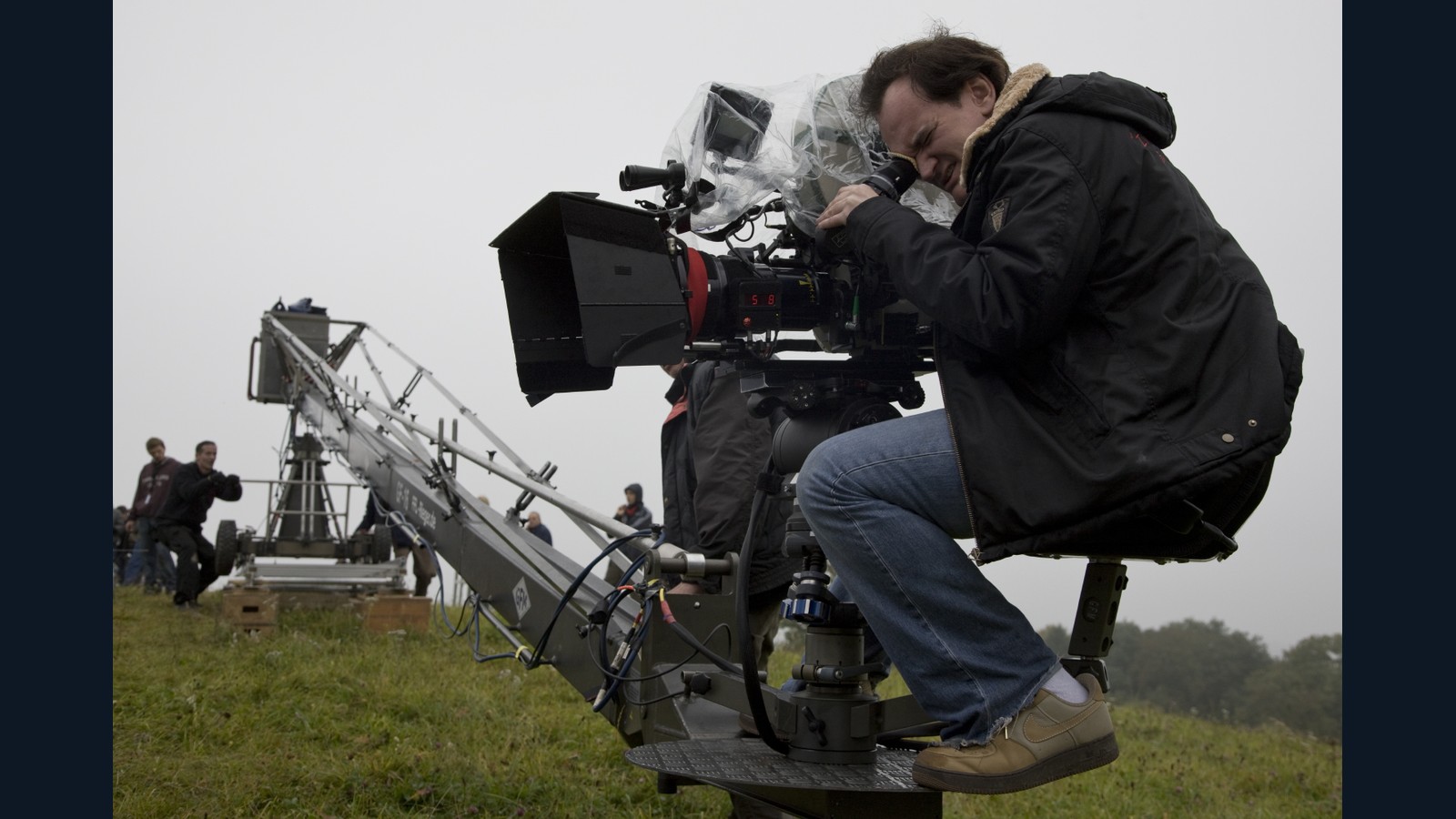

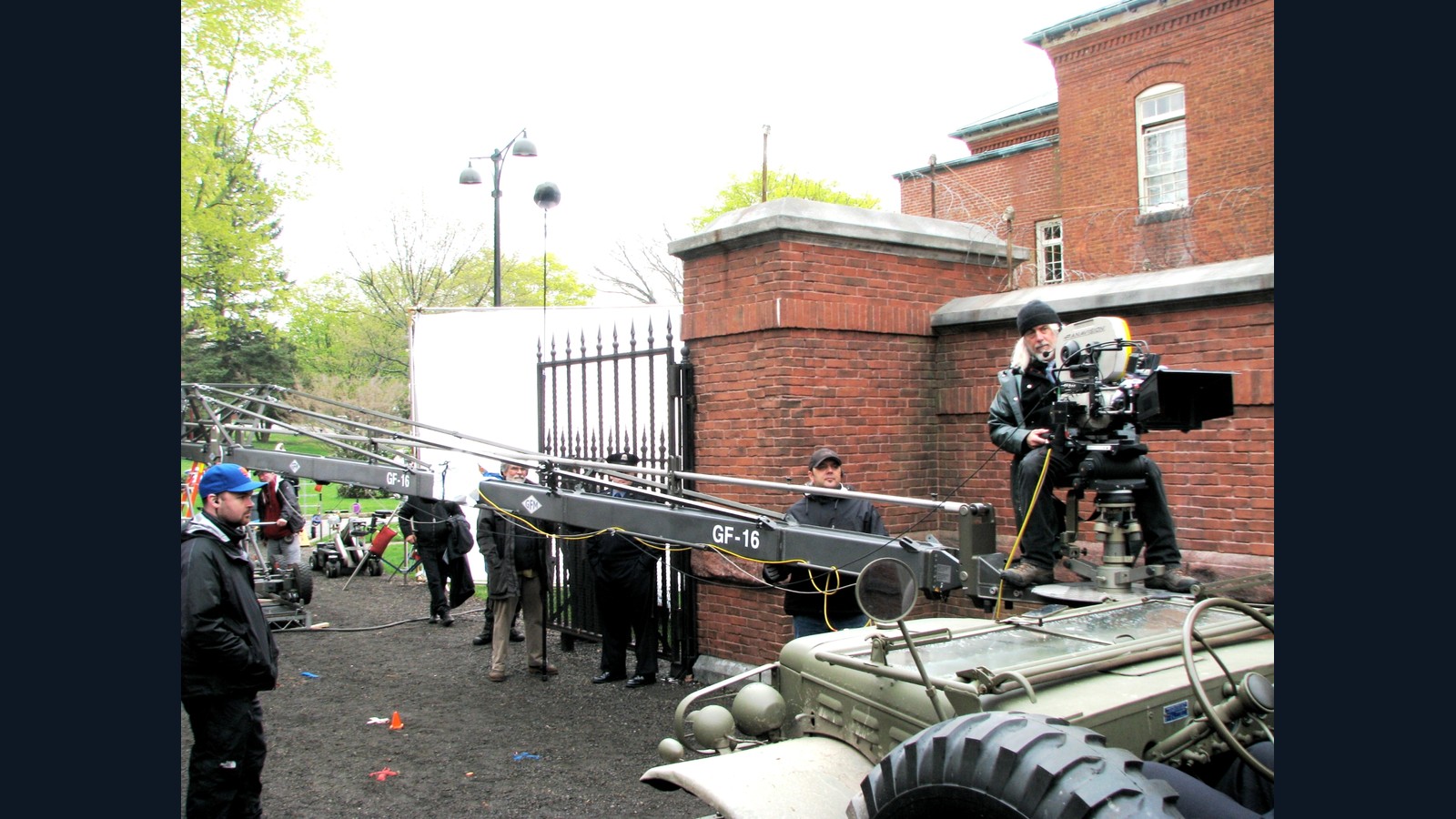

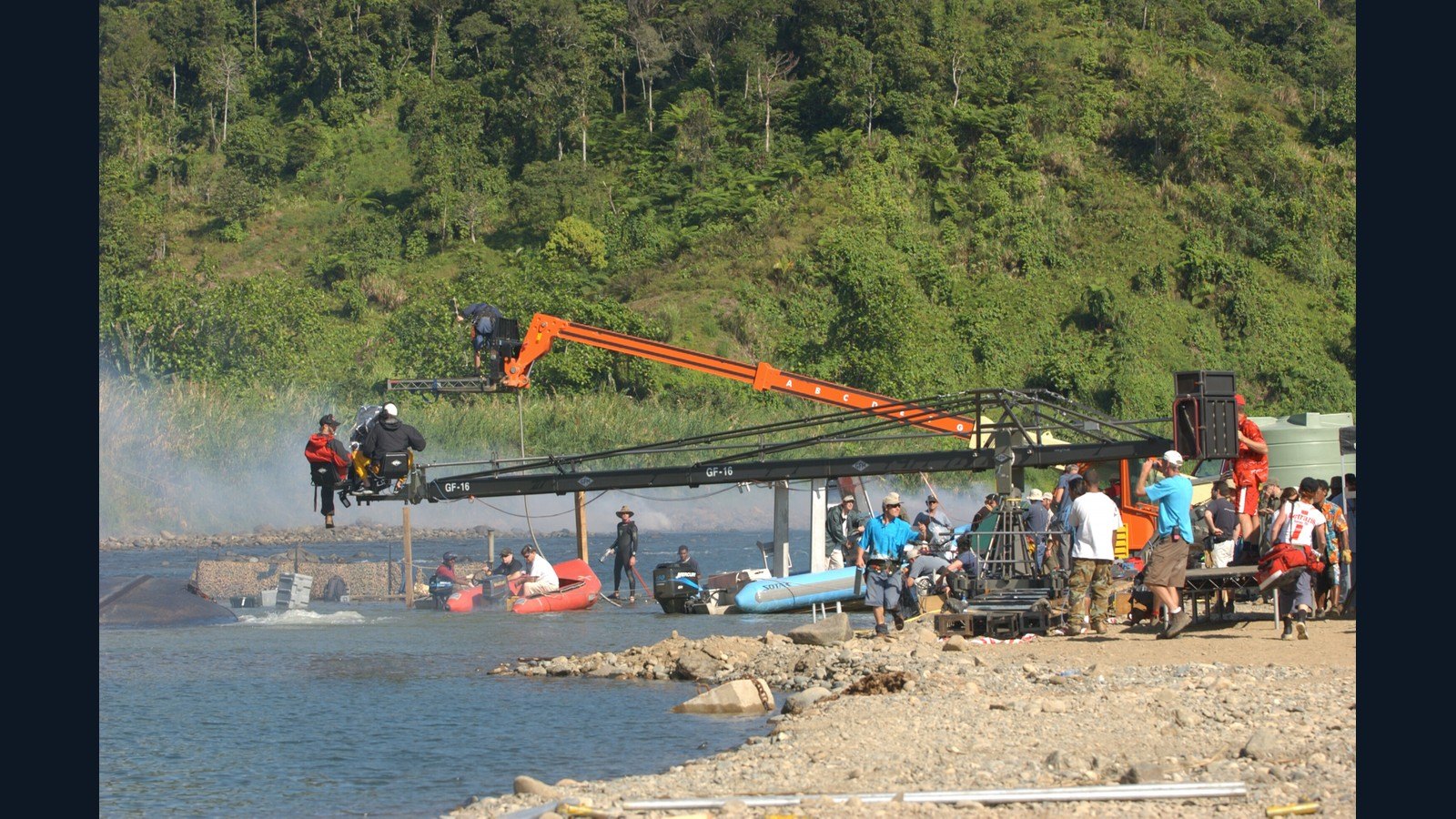

One-person platform, two-person platform, or fully remote: three ways to rig the same crane. The operator rides to 11.3 m; the remote build takes the lens another four metres up.
Sized for the big build
Everything on the GF-16 is sized for crews that move a big crane every day, and it rigs in the same order as the smaller systems.
- Remote bracket for over- and underslung operation
- Two-part counterweight bucket for balanced handling
- Height-adjustable mounting column

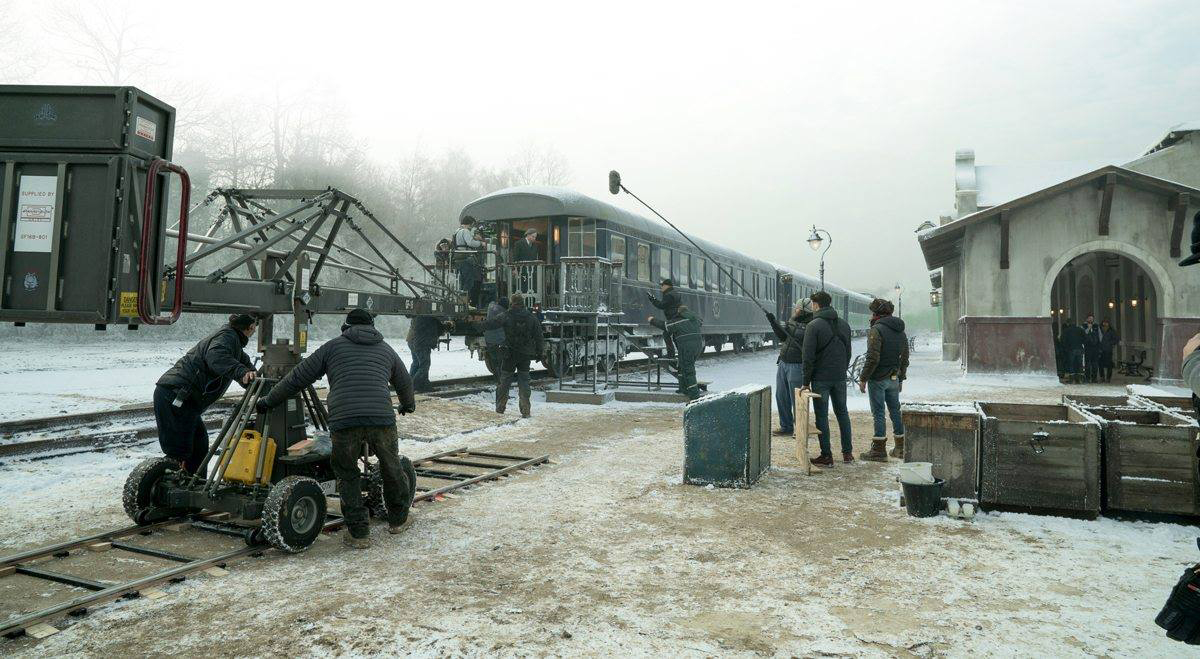

- Base dolly with double-ended steering, on 100 cm (39") track
- Fits on two dedicated transport trolleys
- Hart-Coat® finish · TÜV certified and safety type tested
