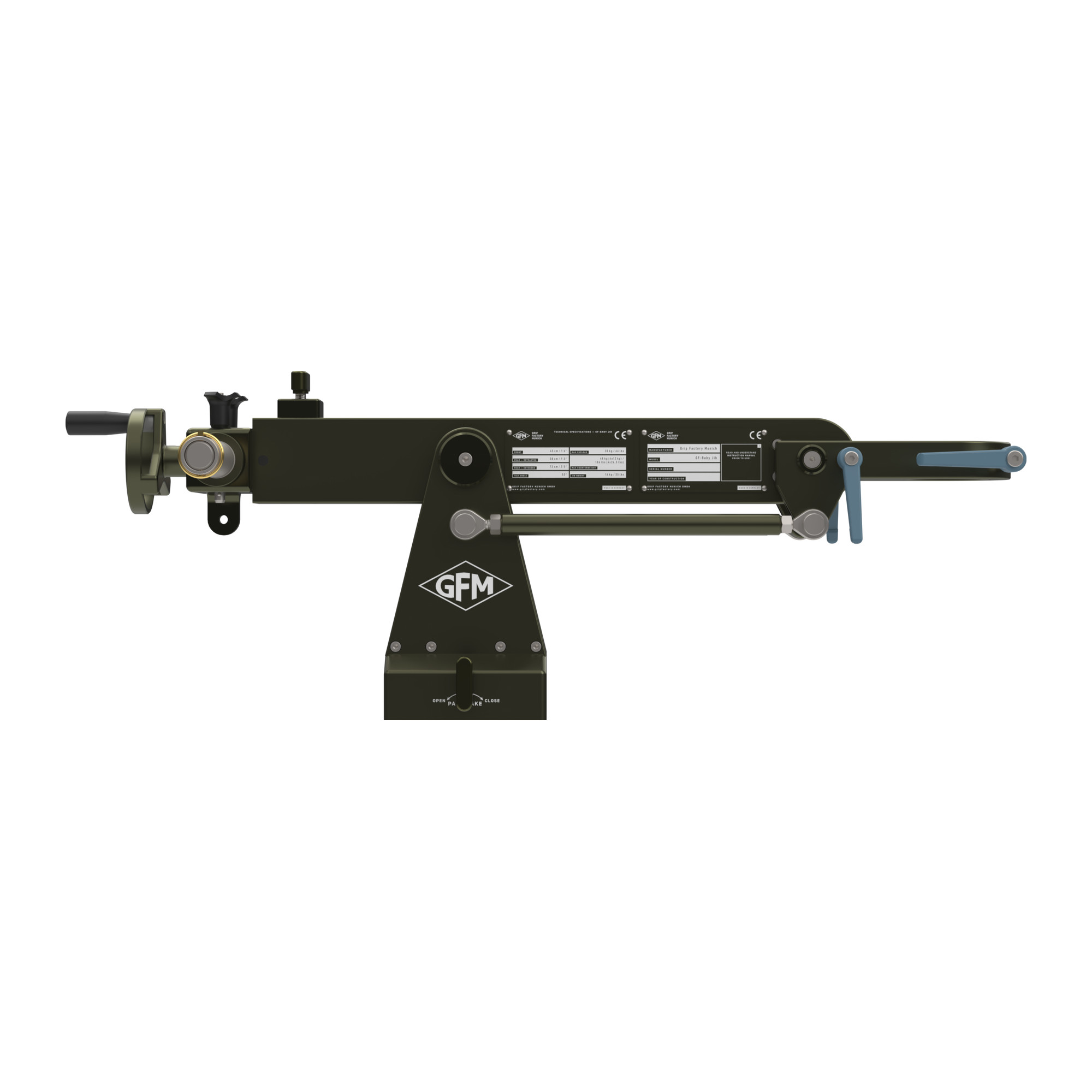

GF-Baby Jib Set incl. Accessories and Transport Case
€4,900.00excl. VAT

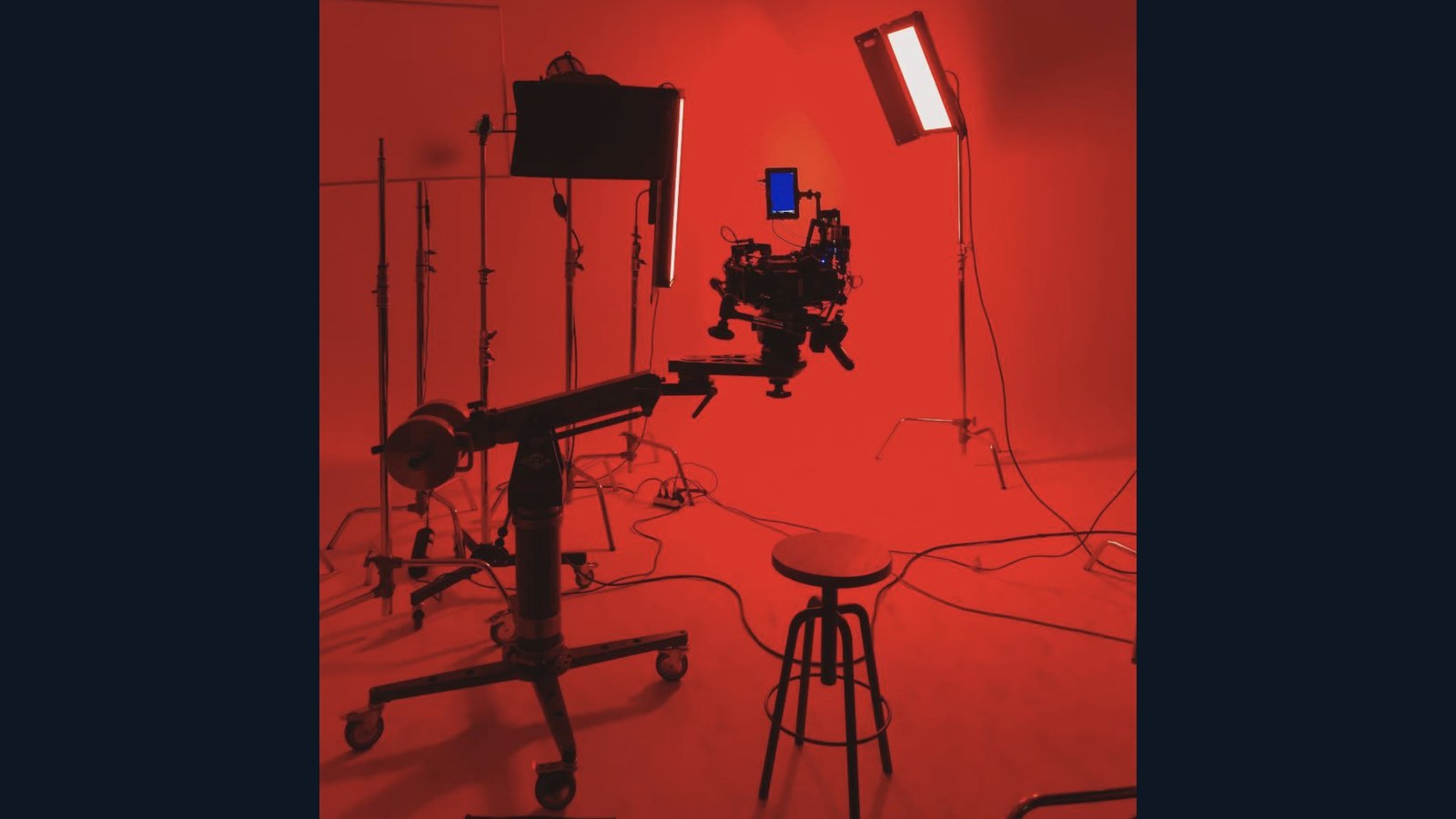

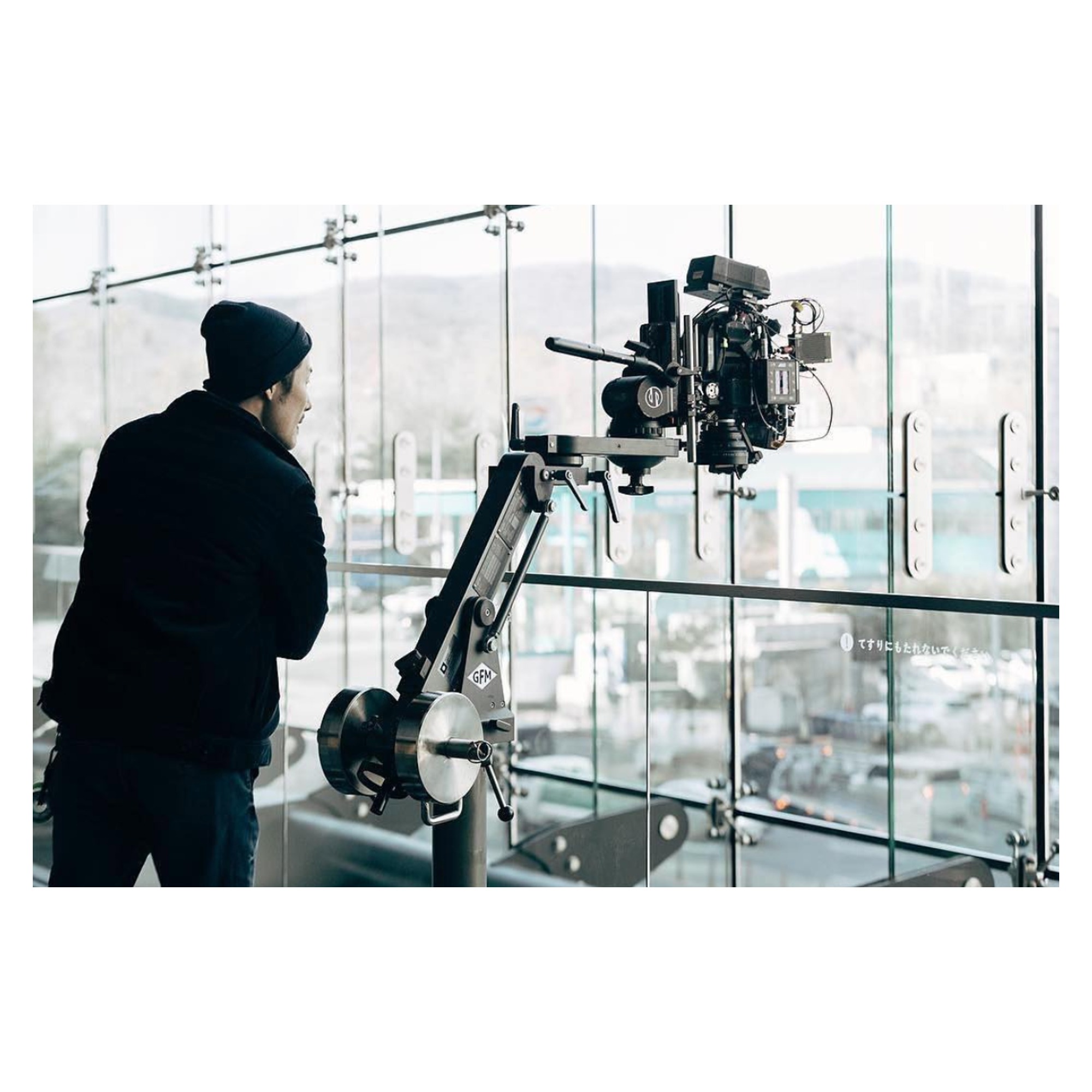

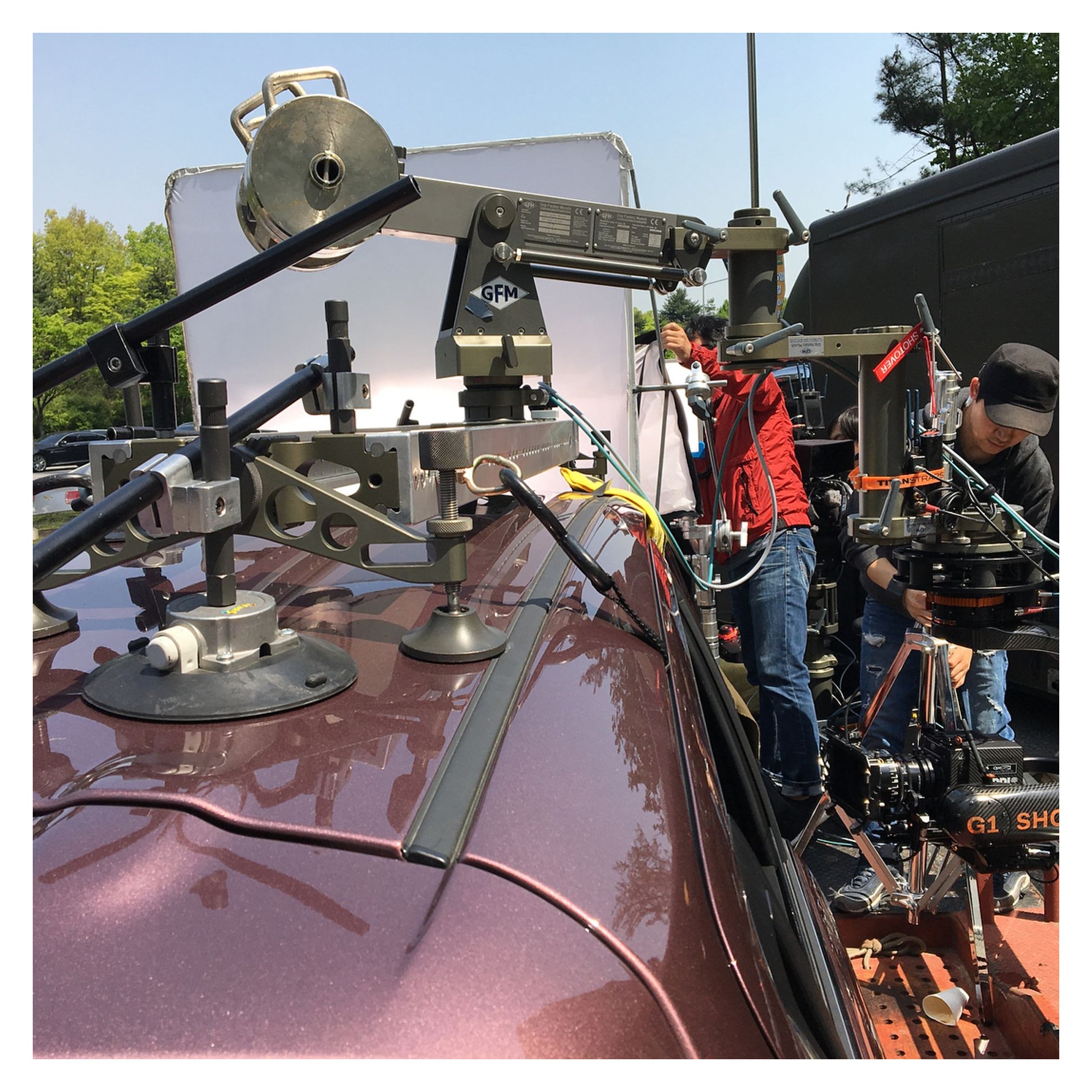

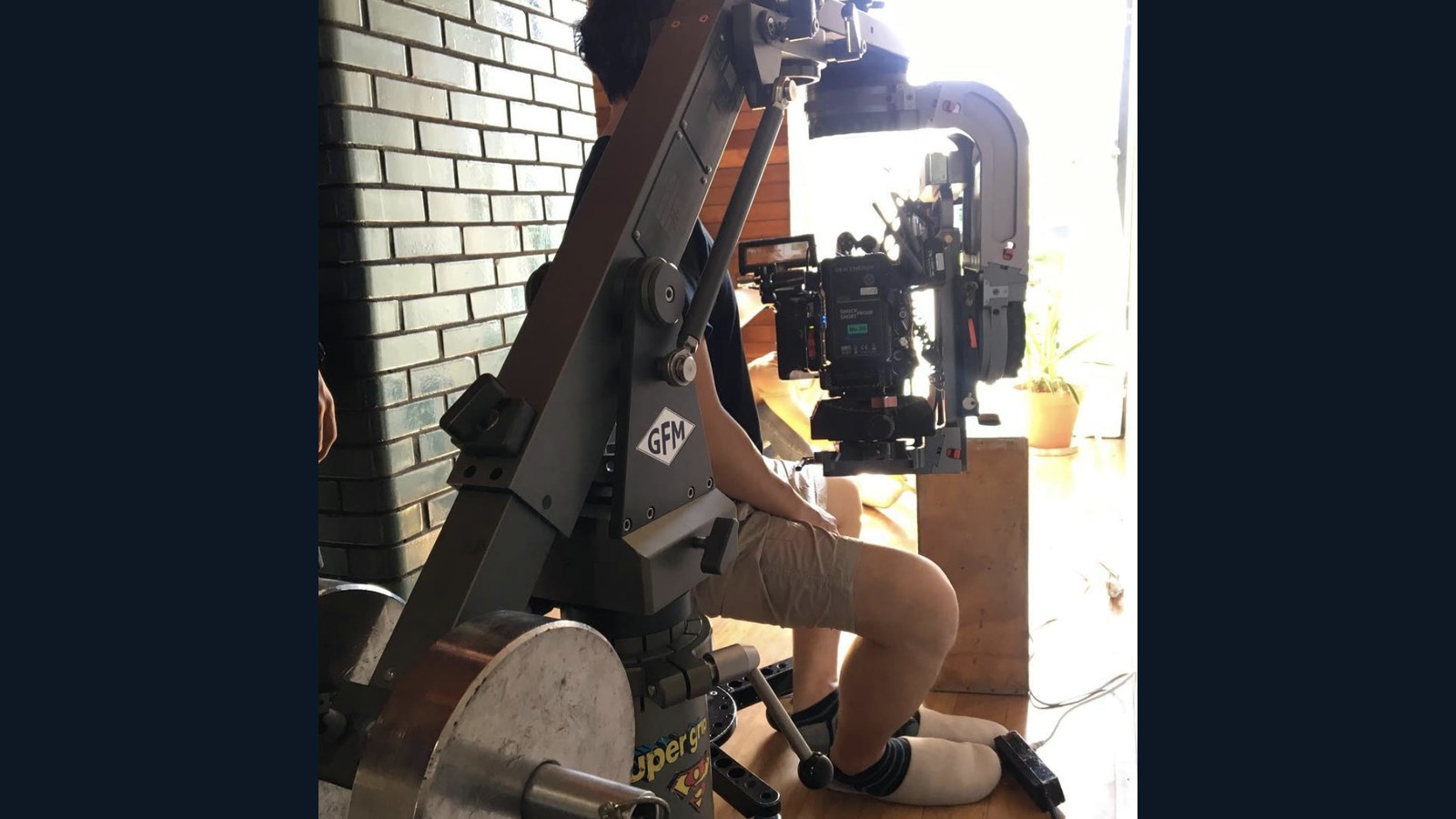

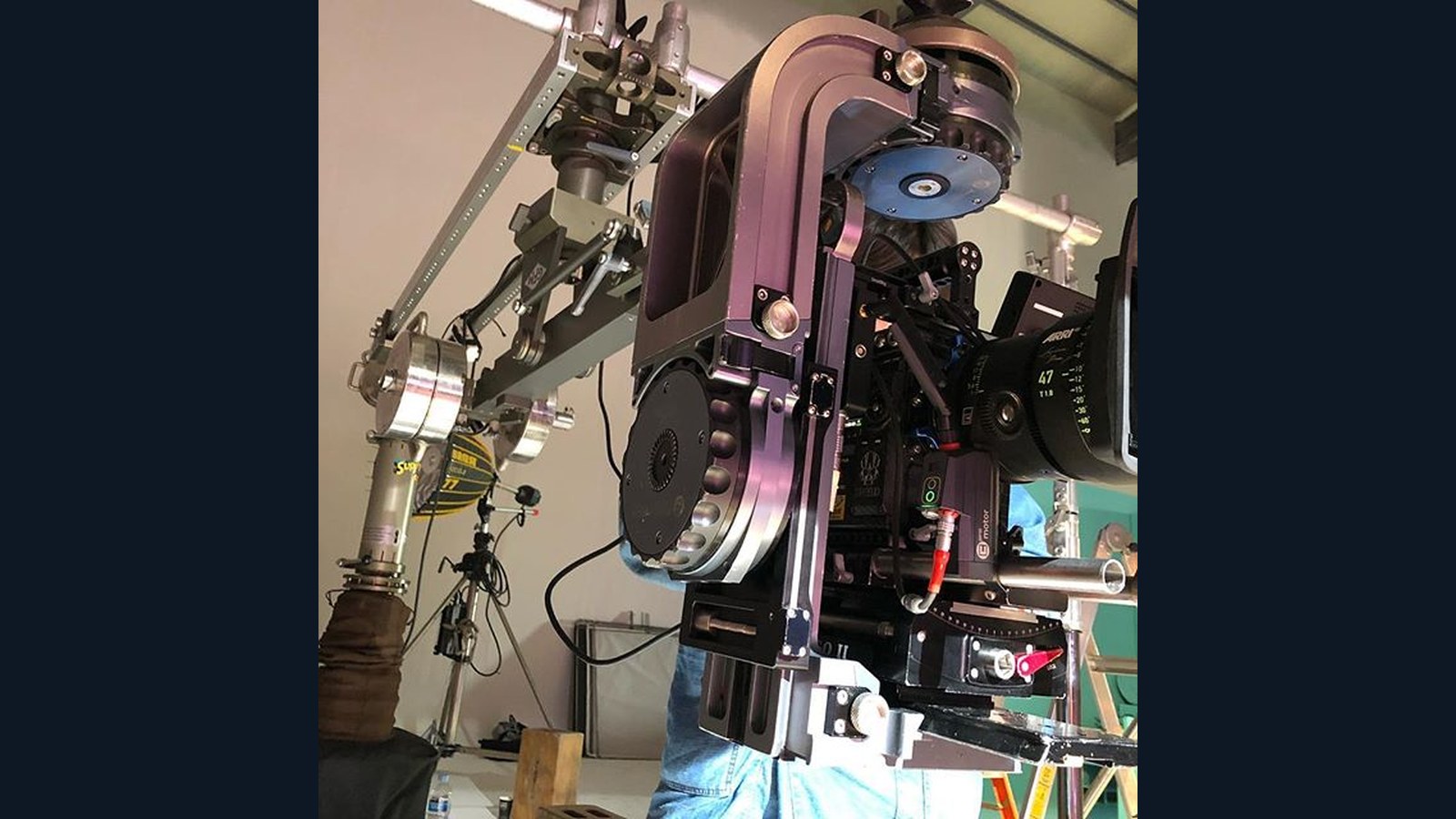

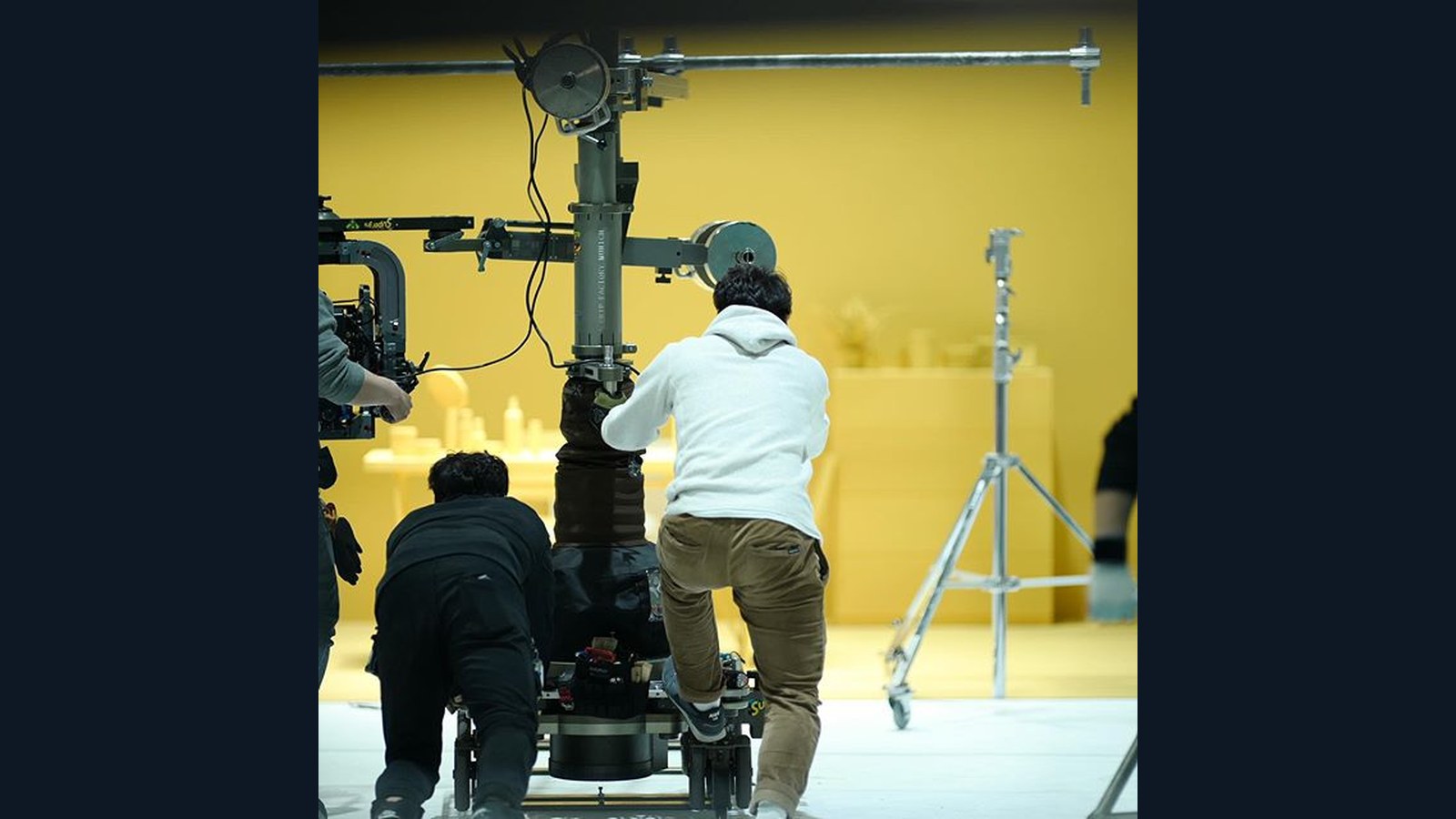

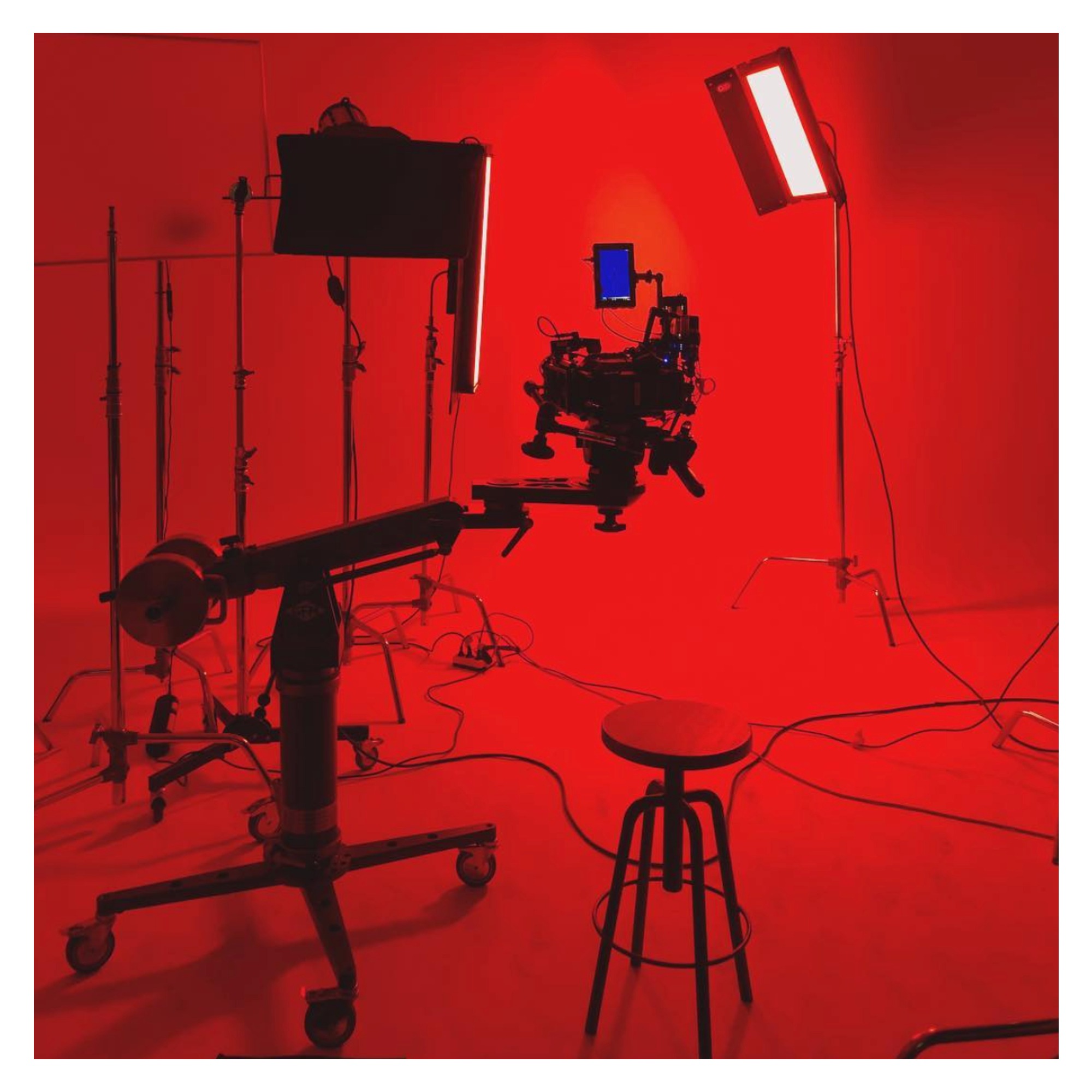

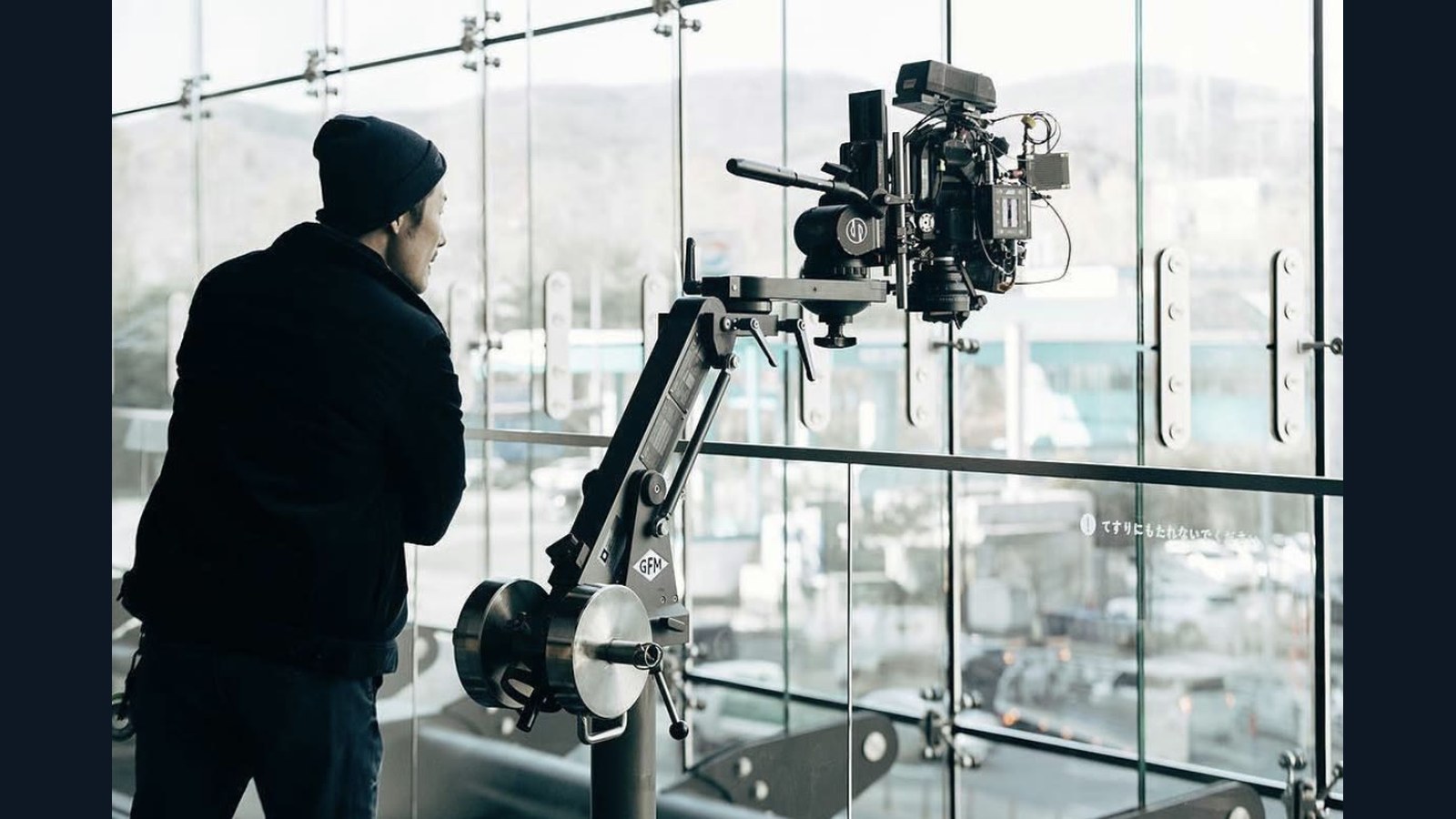

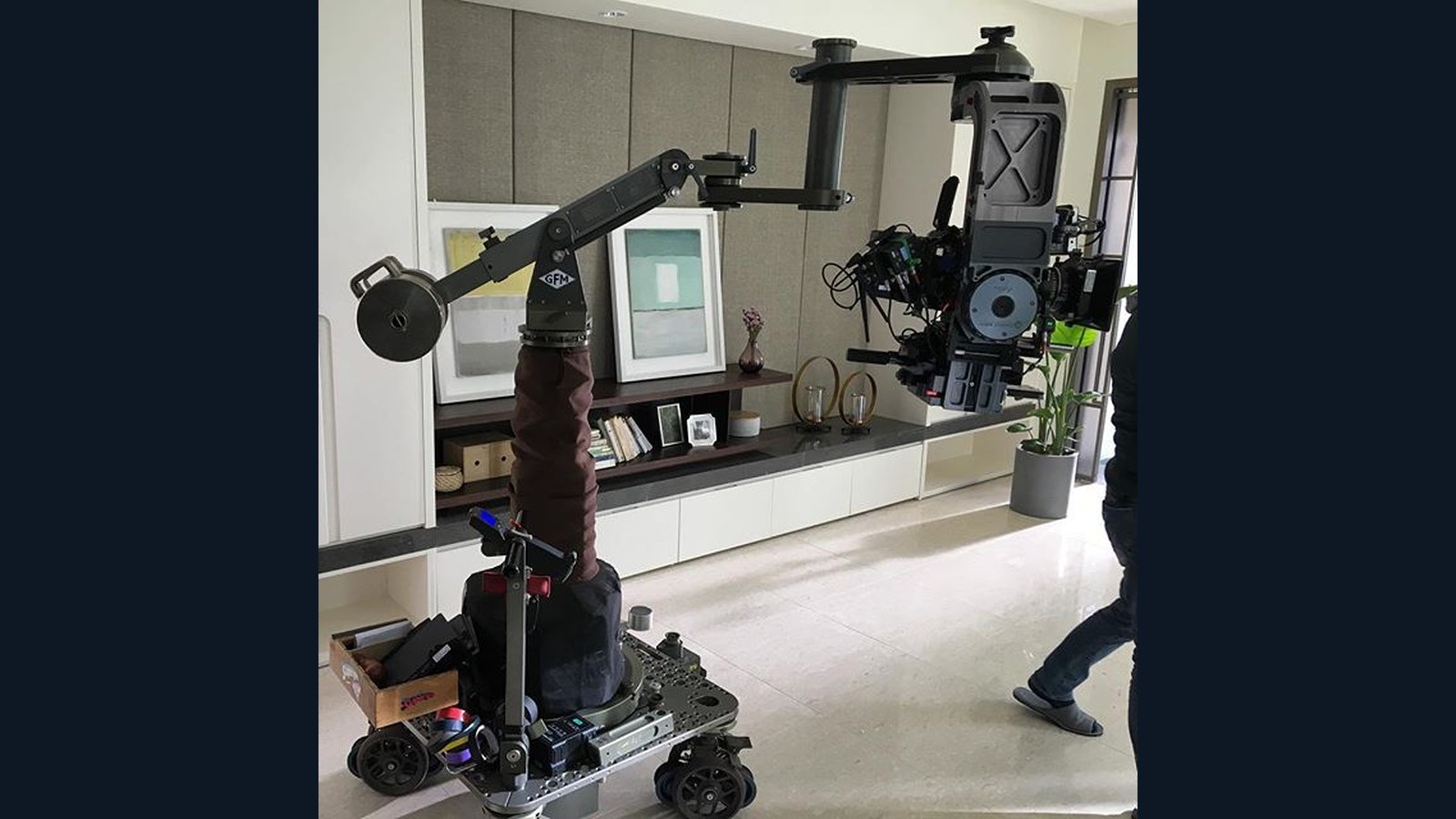

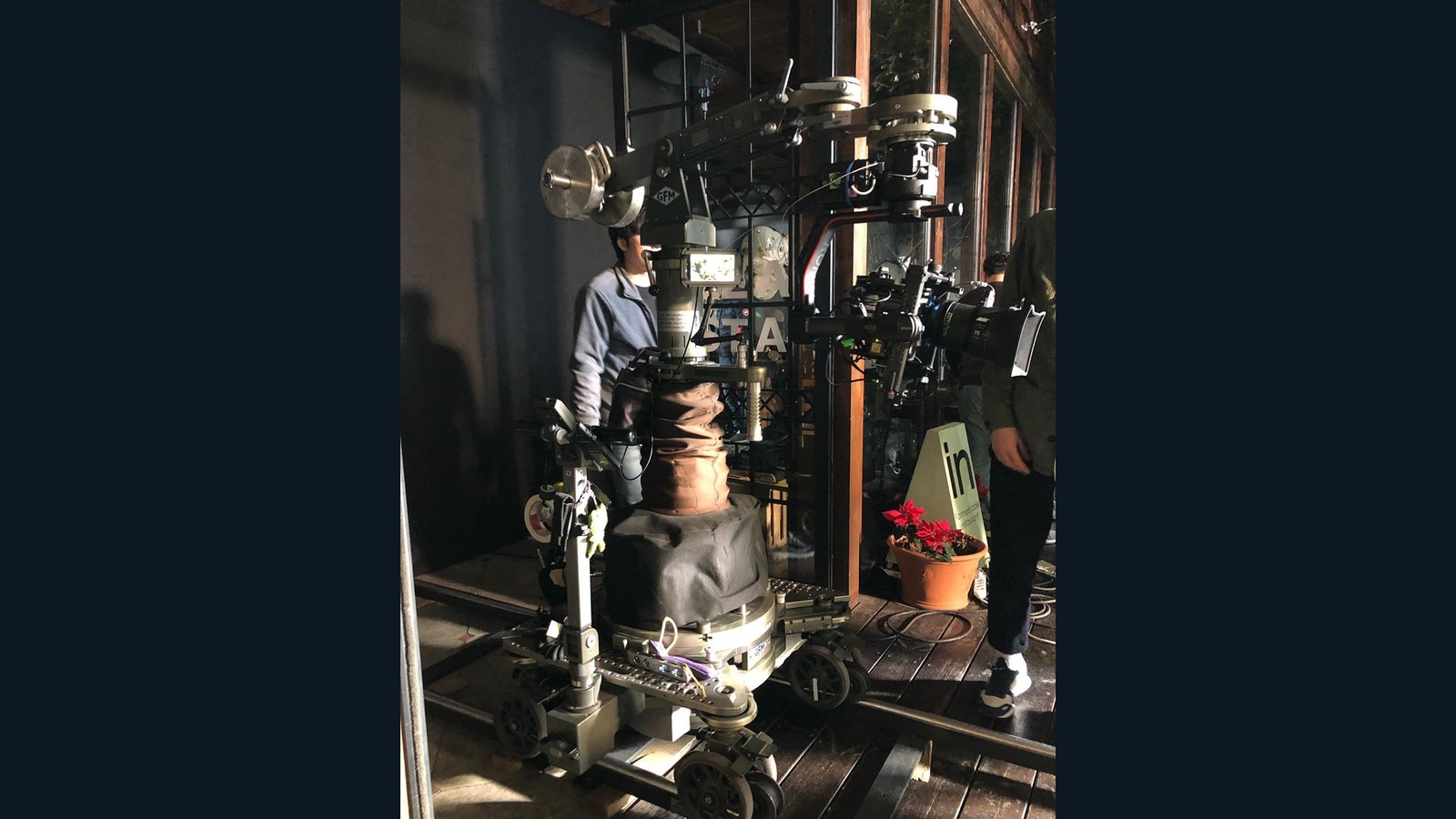

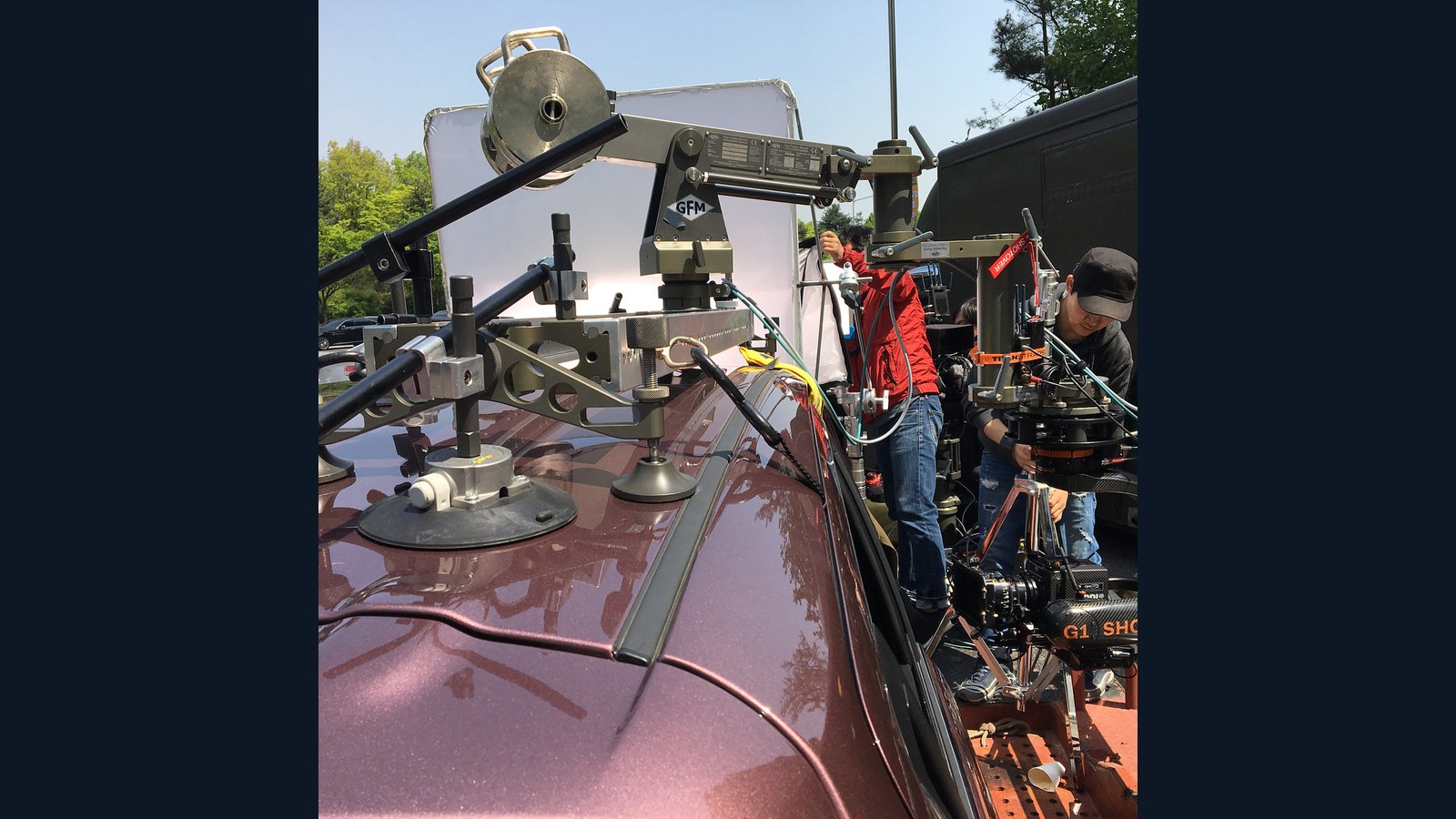

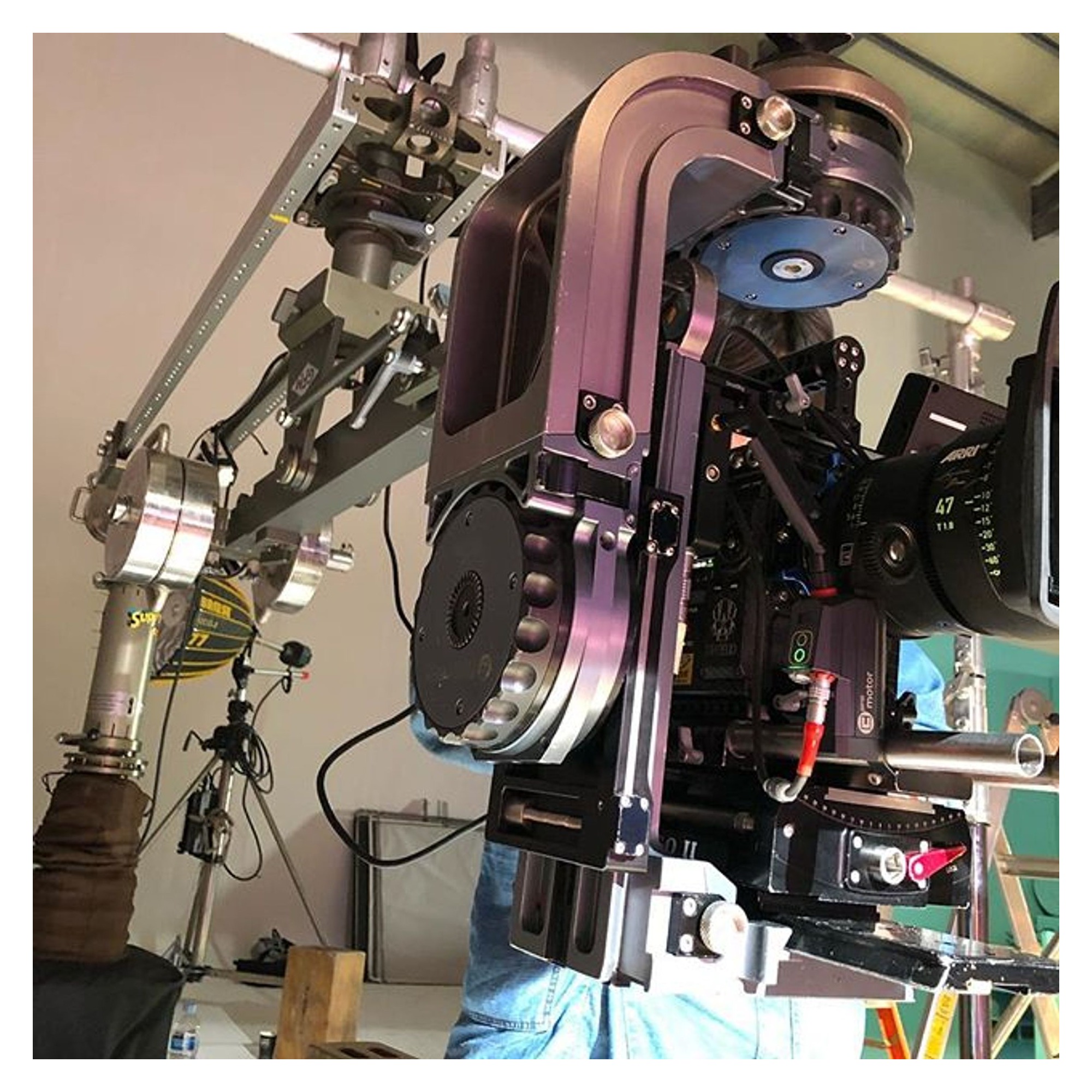

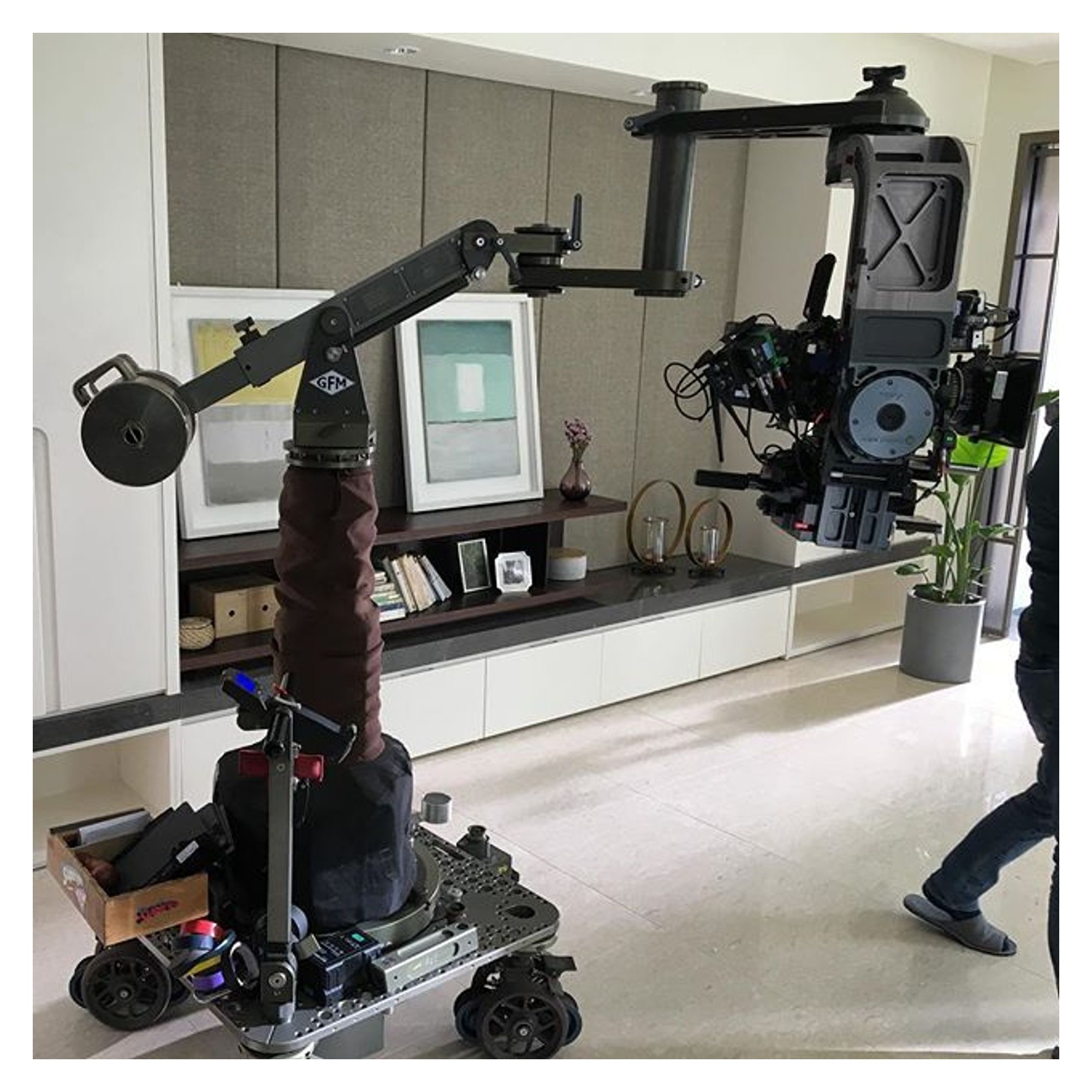

The GF-Baby Jib is the shortest arm we build: 45 cm from the pivot to the Euro adapter, a 51 cm lift range and 53° of tilt. That is a full jib move out of a footprint that still fits between a wall and a dolly, which is where it earns its place — off a dolly or a tripod in a room that has run out of space. It carries 30 kg, weighs 16 kg itself, and adds pan and tilt on the nose through a Mitchell 3-Way head with integrated double swivel.
The set is ready to work: Baby Jib arm, double-ended Euro adapter, two safety plates for underslung mounting, four 12 kg counterweights and the fitted transport case. Machined and assembled in Germany by Grip Factory Munich.
Including:
- GF-Baby Jib (GF-7600)
- Double ended Euro Adapter (AL-2405)

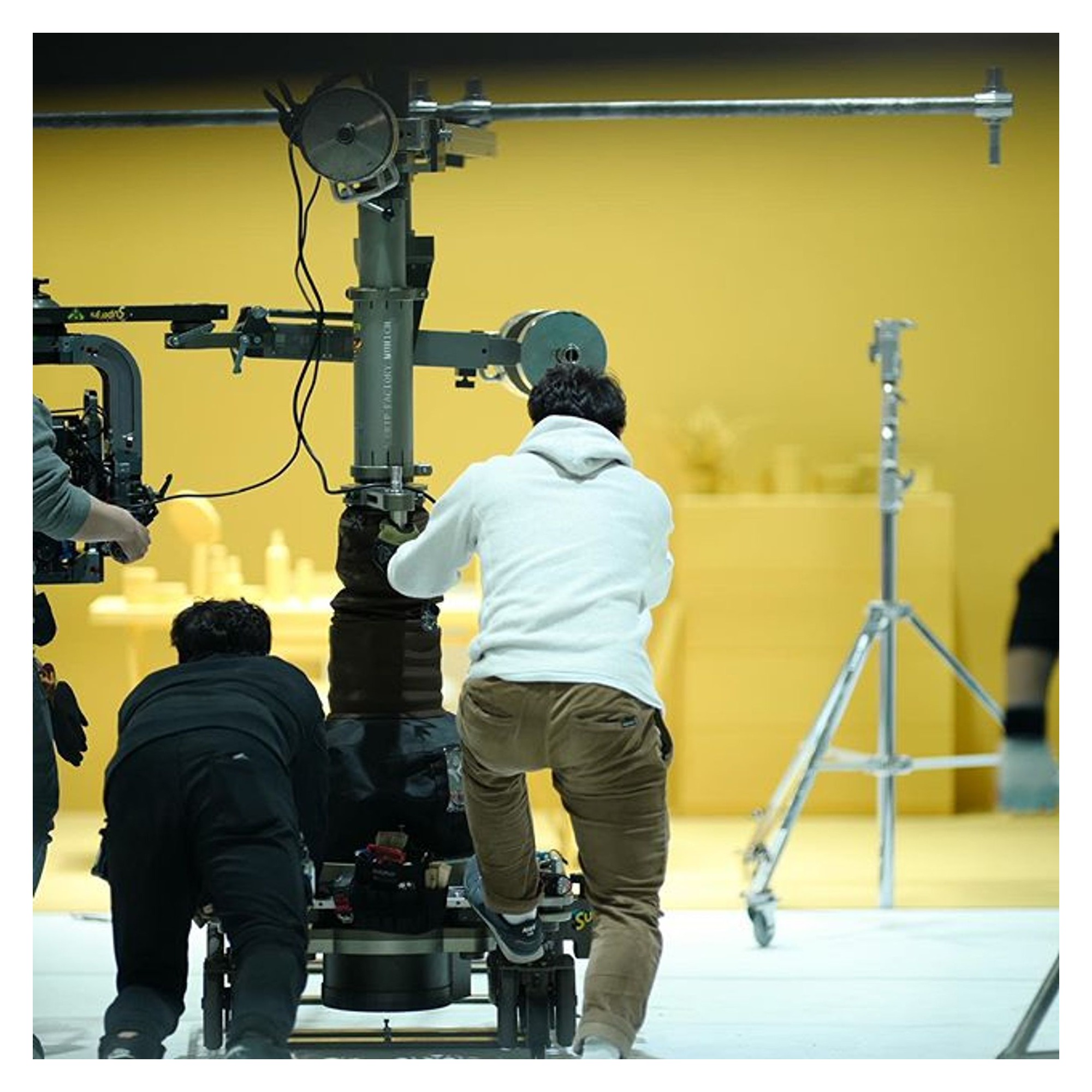

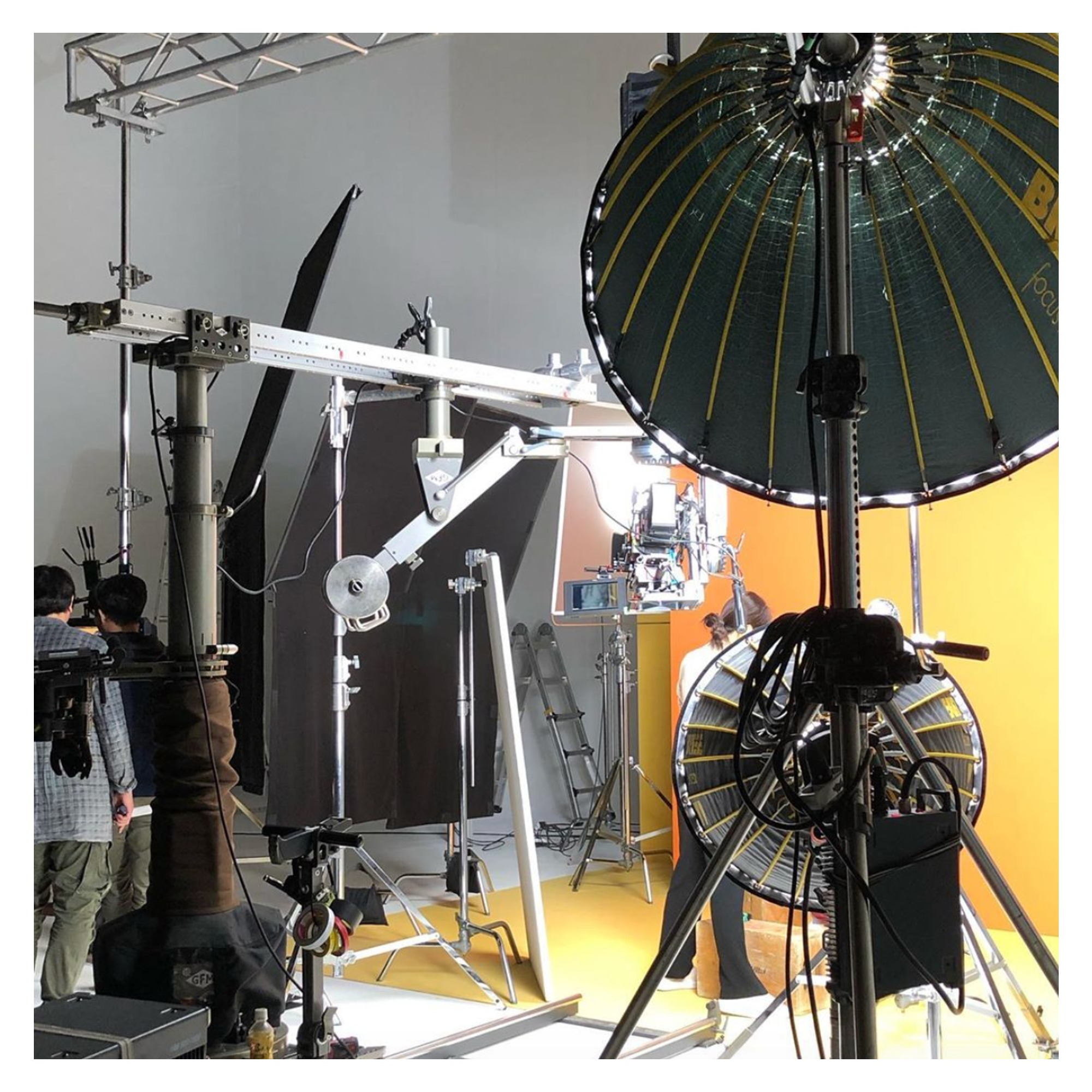

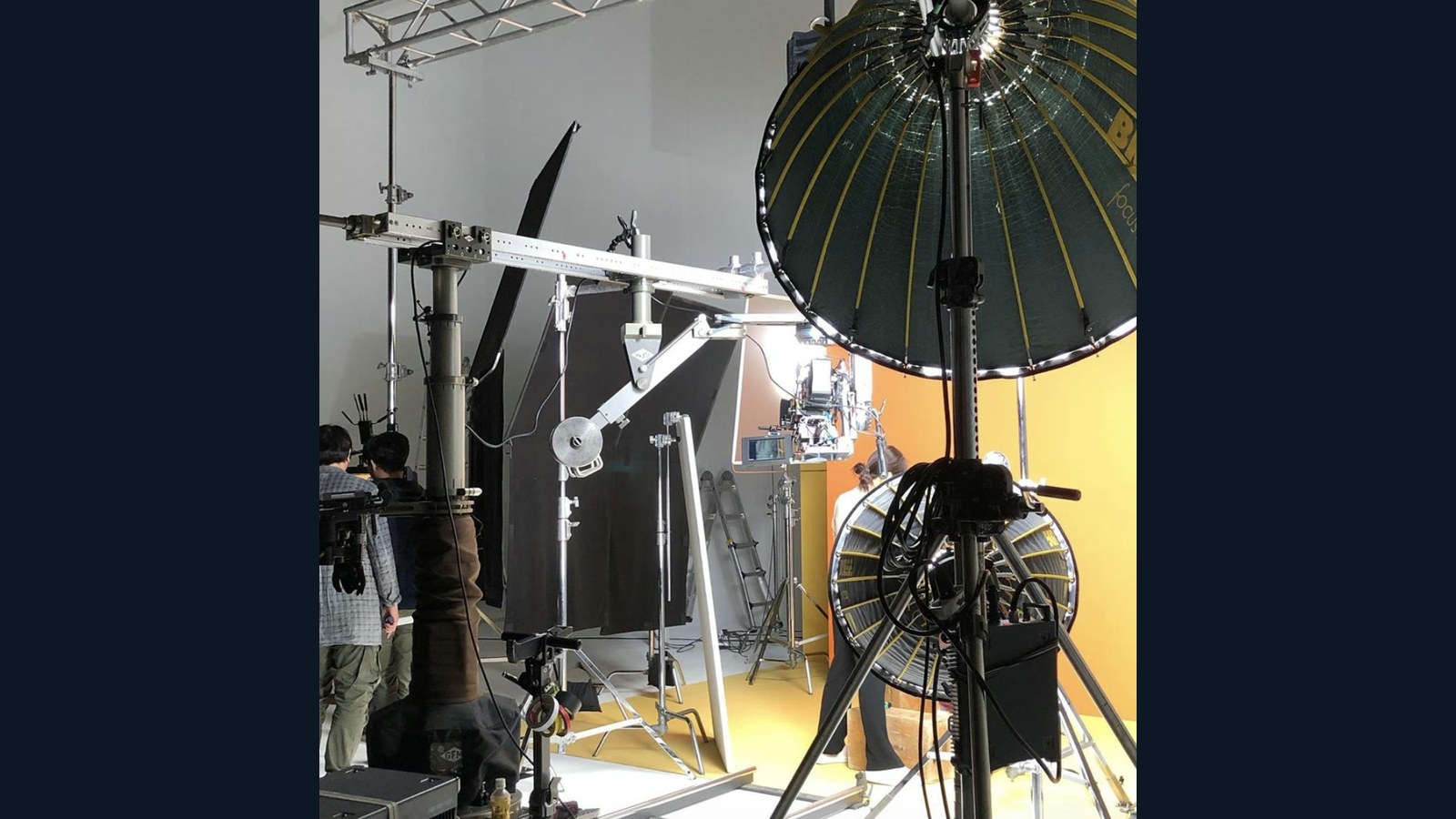

- 2 × Safety Plate for Underslung (M12) (AL-2111)
- 4 × Counterweight 12 kg (26 lbs) round (AL-2403)

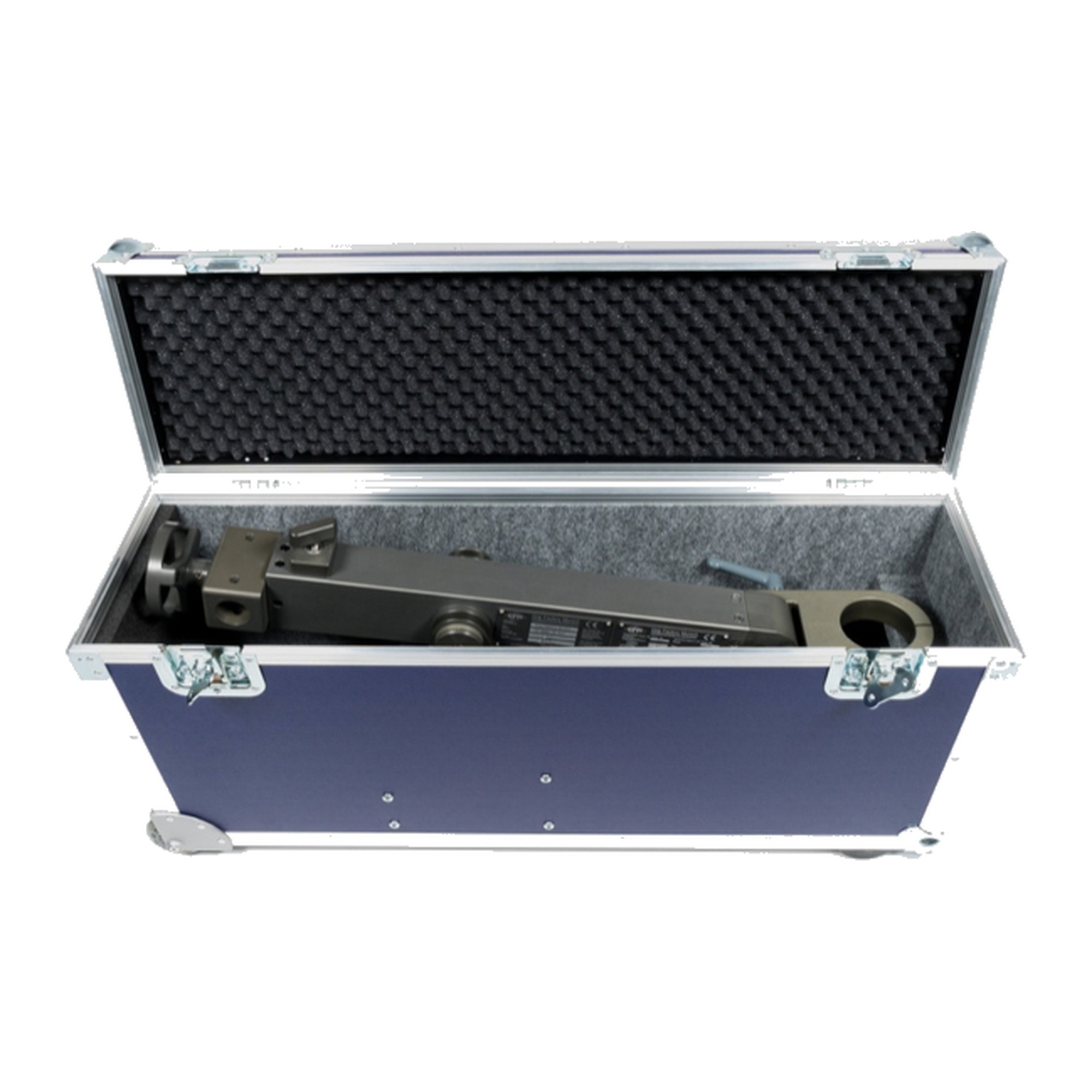

- Transport case for GF-Baby Jib (K-1528)
Set weight80.26 kg
Made in Germany · Machined & assembled in Munich, Bavaria · Ships worldwide
GF-Baby Jib · Datasheet
Reach
45 cm1'5"
Max payload
30 kg66 lbs
Lift range
51 cm1'8"
Jib weight
16 kg35 lbs
| Geometry | ||
|---|---|---|
| Rear (retracted) | 31 cm | 1' |
| Rear (extended) | 63 cm | 2' |
| Tilt angle | 53° | |
| Capacity | ||
|---|---|---|
| Max counterweight | 48 kg / 4 × 12 kg | 105 lbs |
| Configuration | ||
| Camera head | Mitchell 3-Way with integrated Double Swivel | |
| Jib mount | Euro Adapter (Mitchell available) | |
