Jib ArmsGF-7700S
GF-Mini Jib Set incl. Accessories and Transport Case
€6,095.00excl. VAT

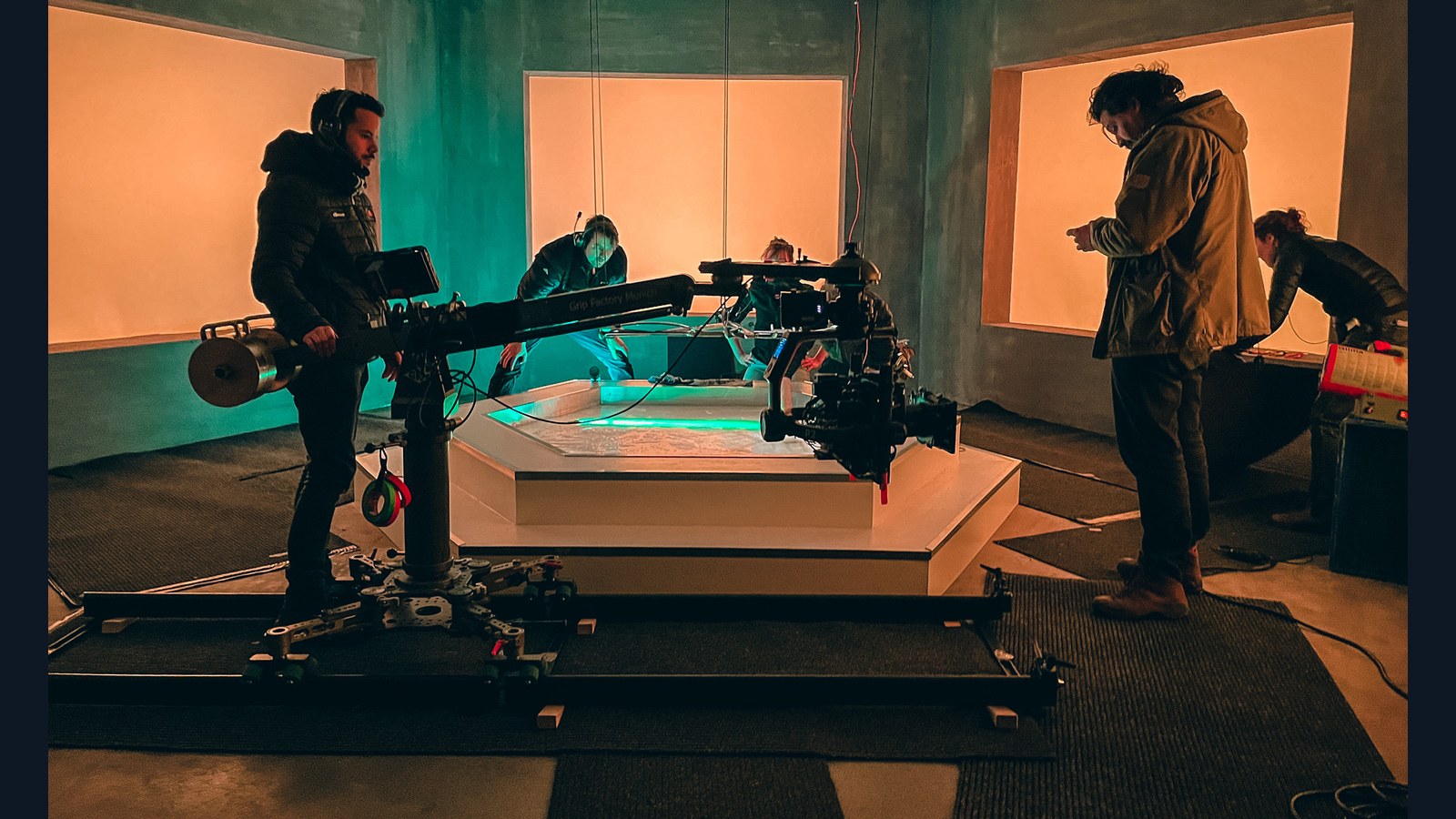

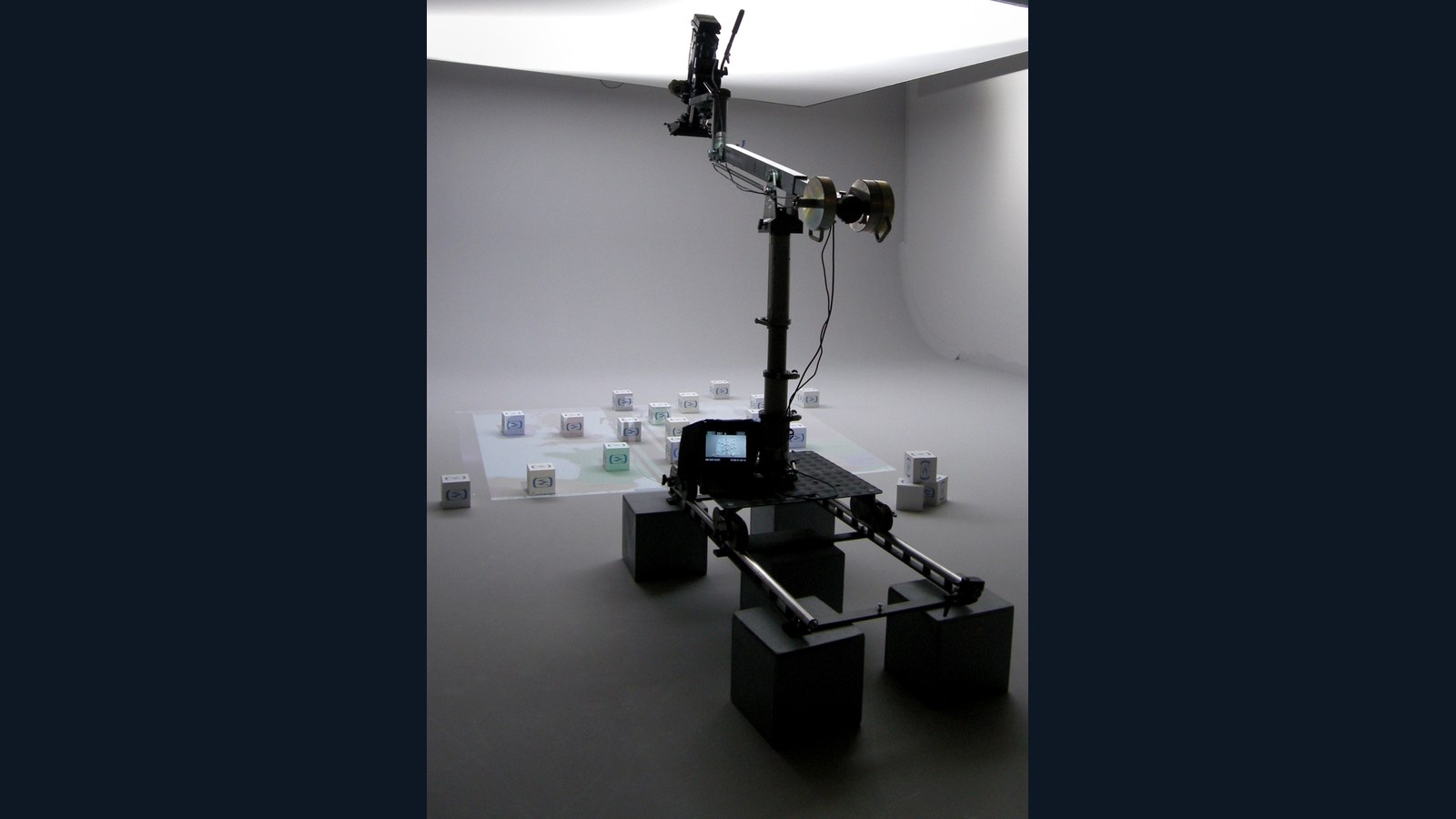

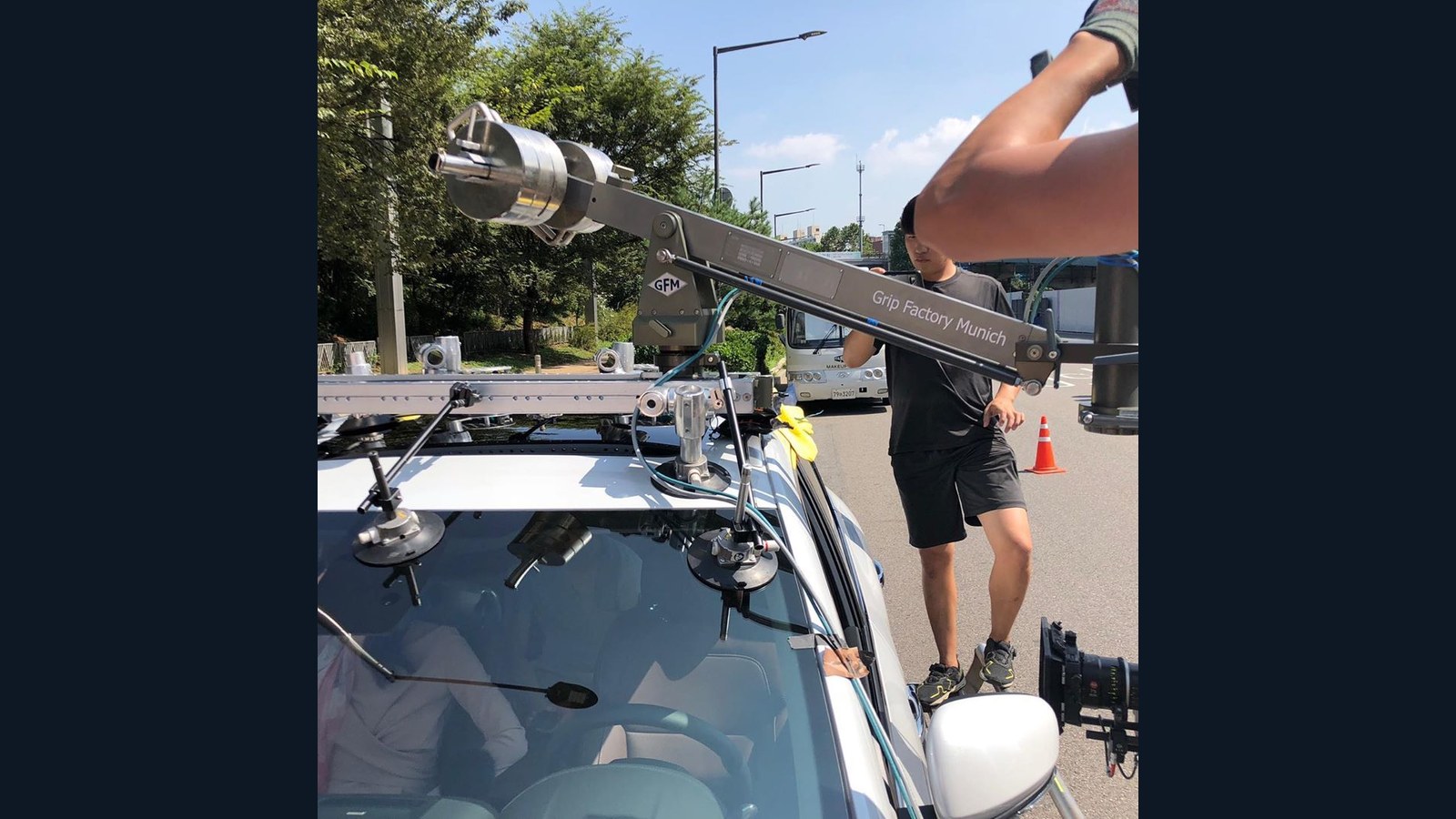

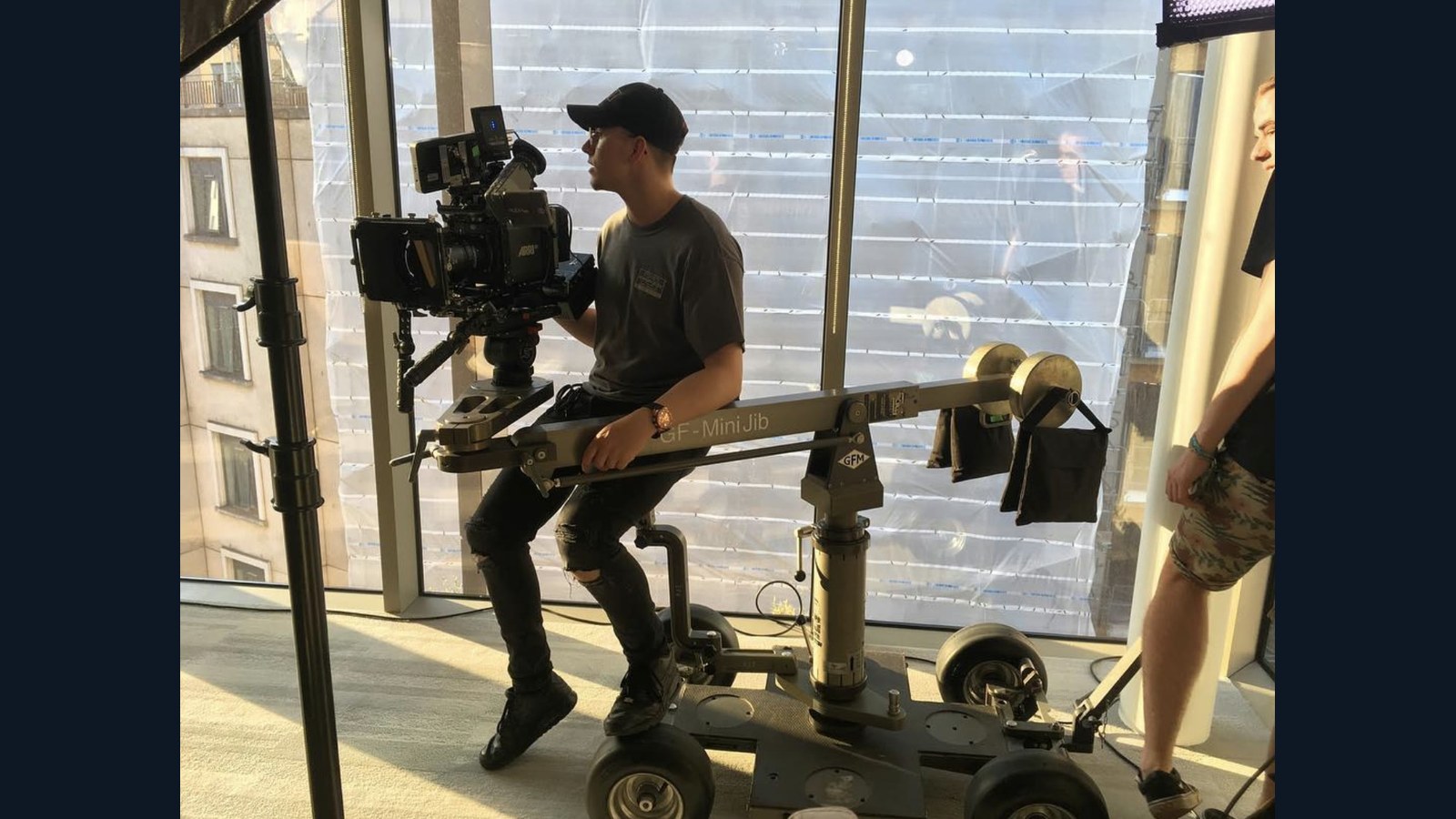

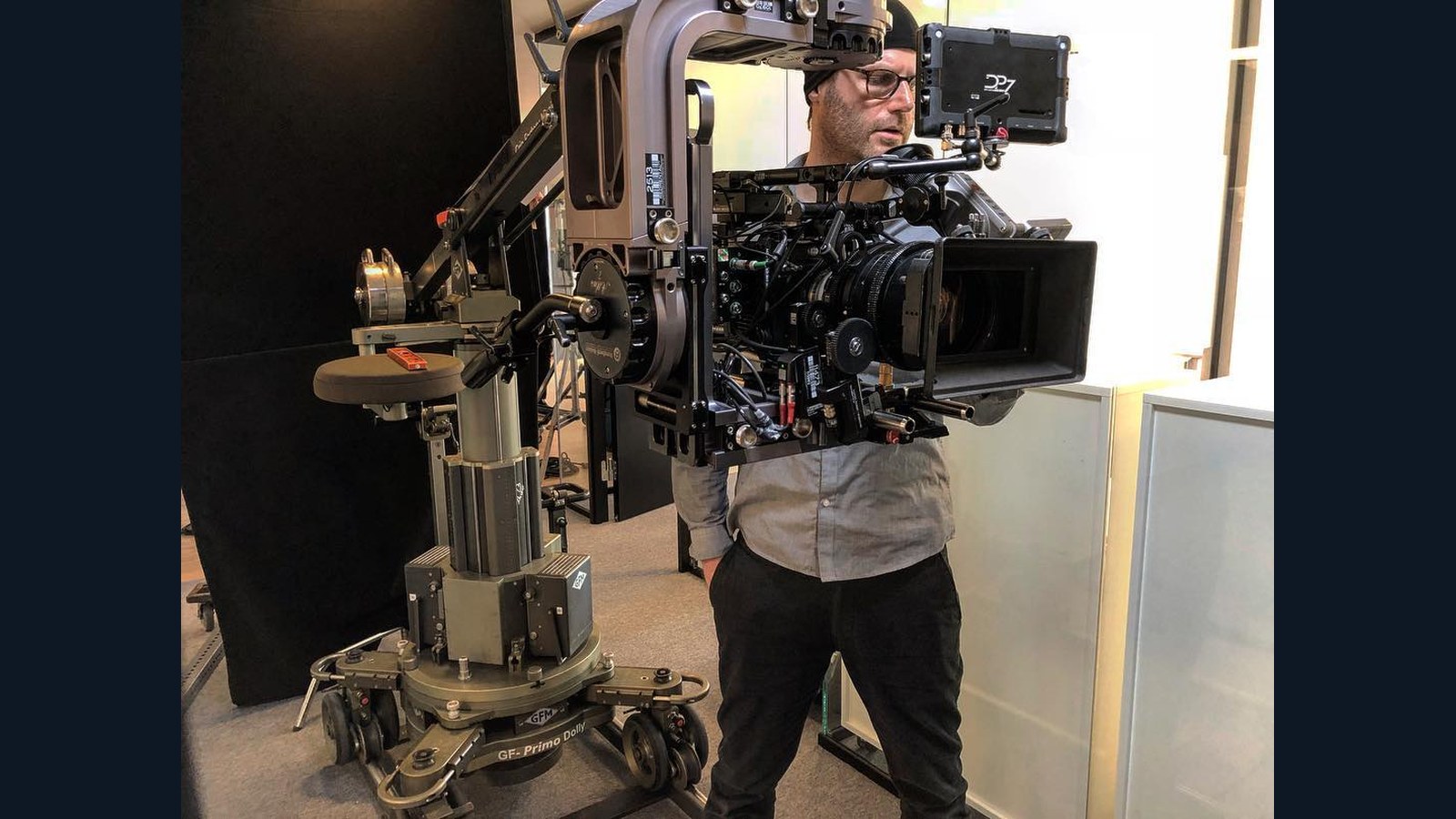

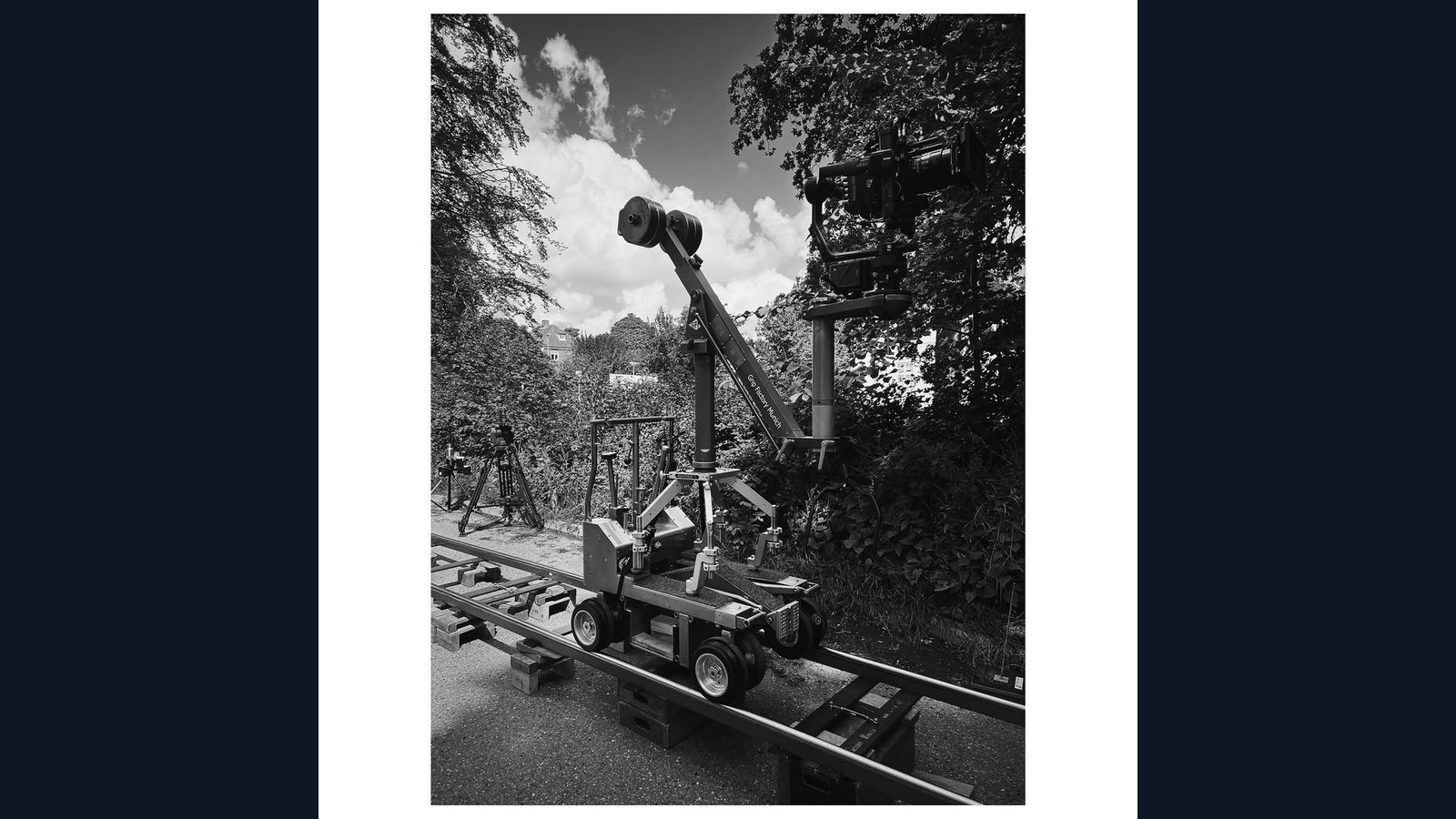

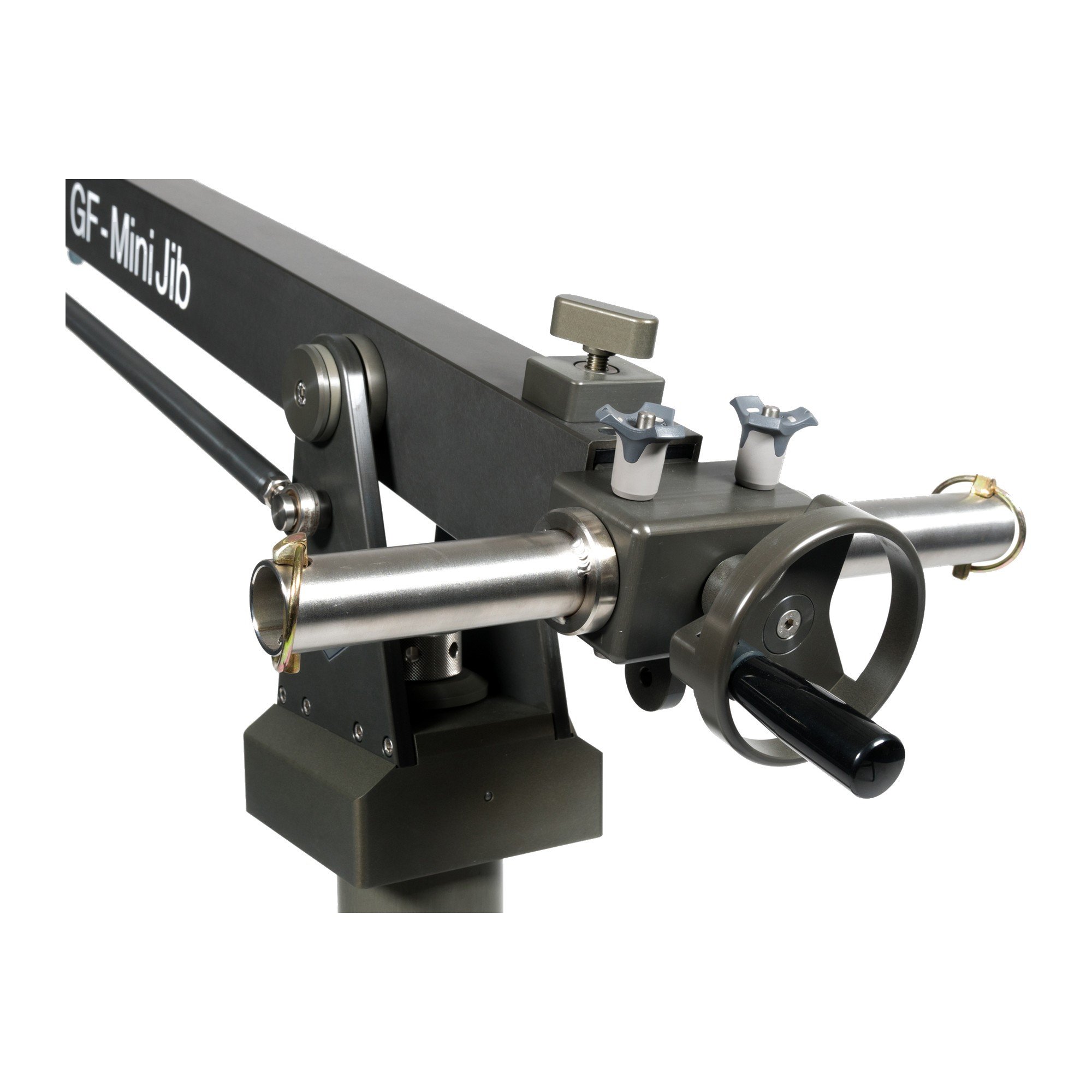

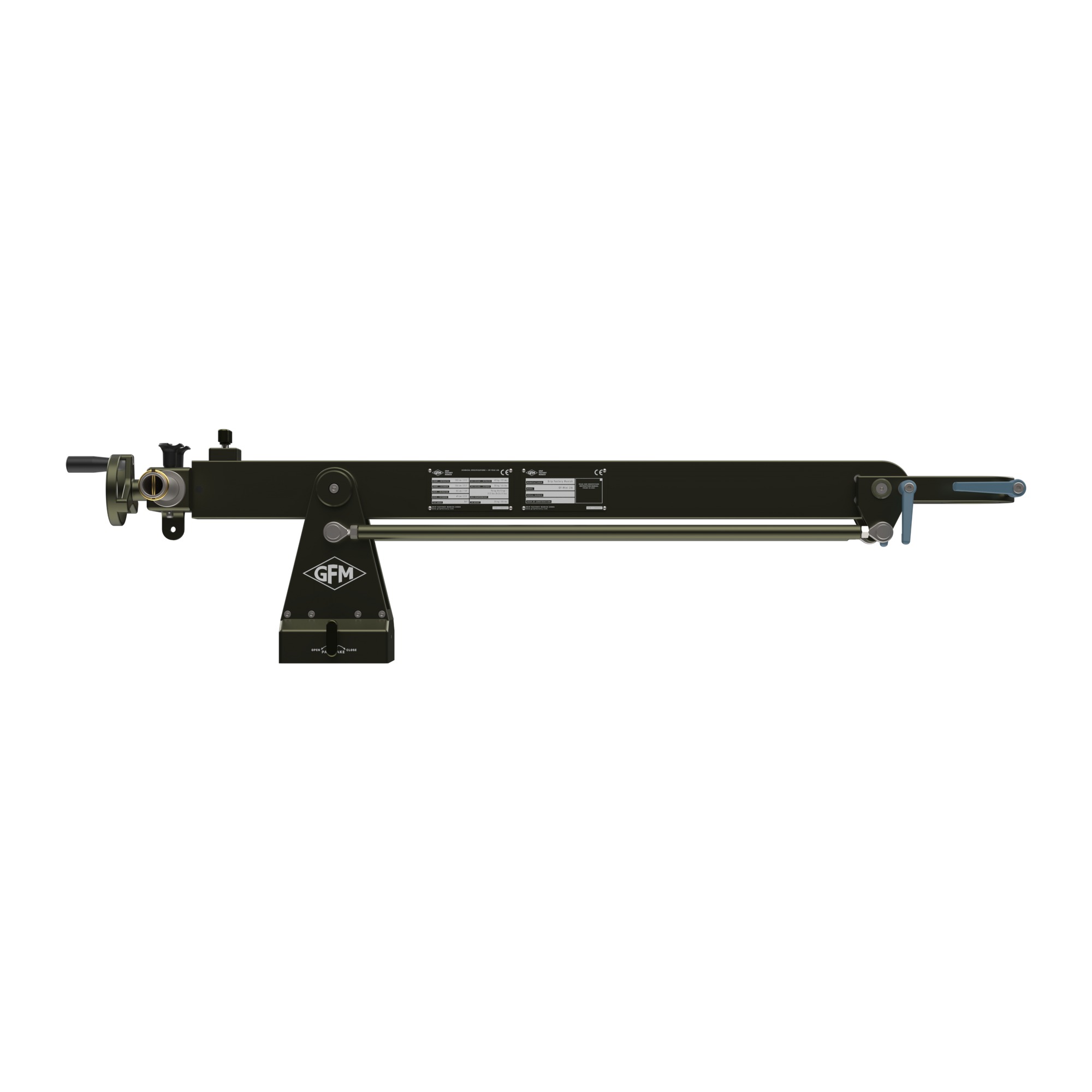

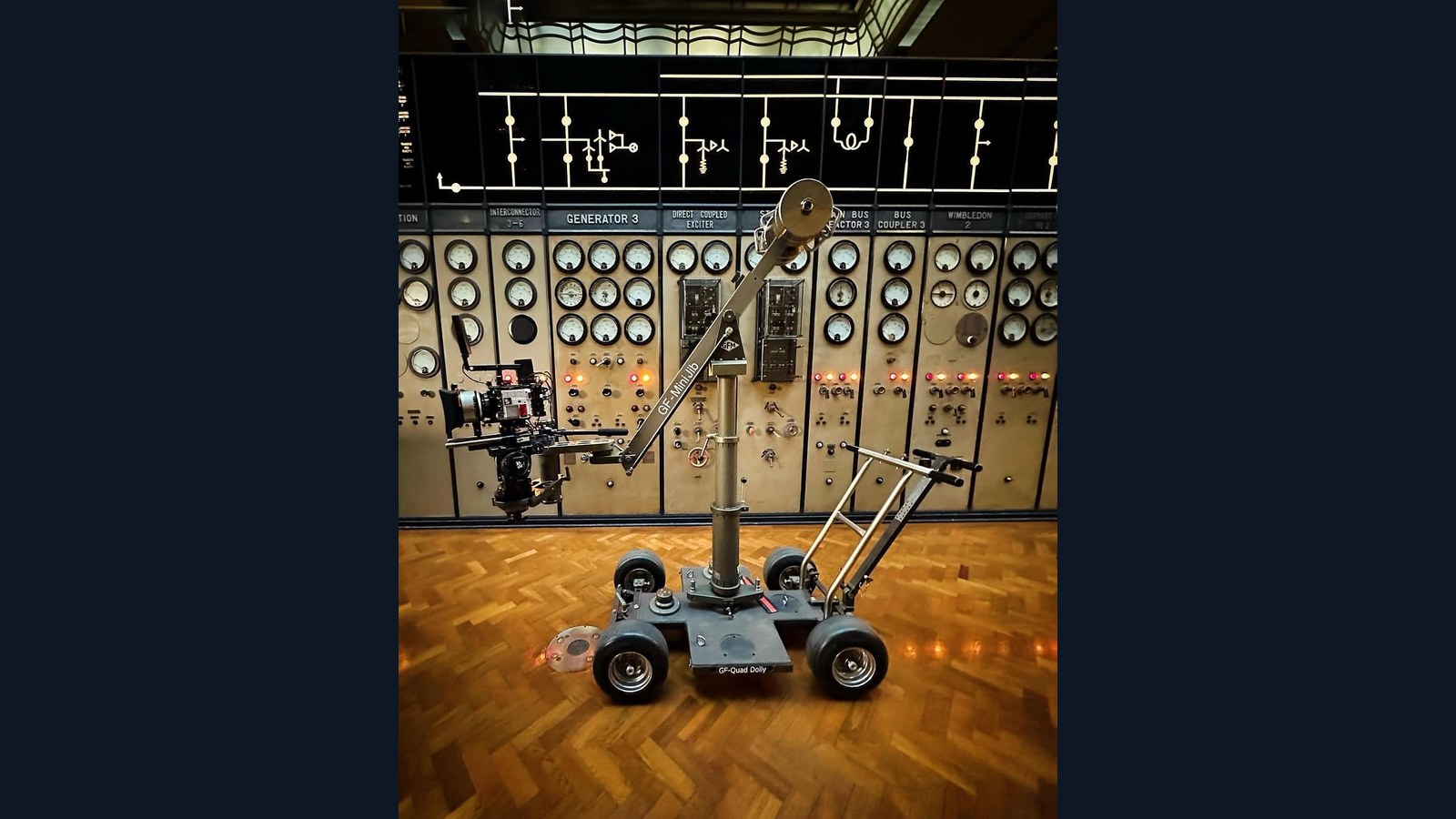

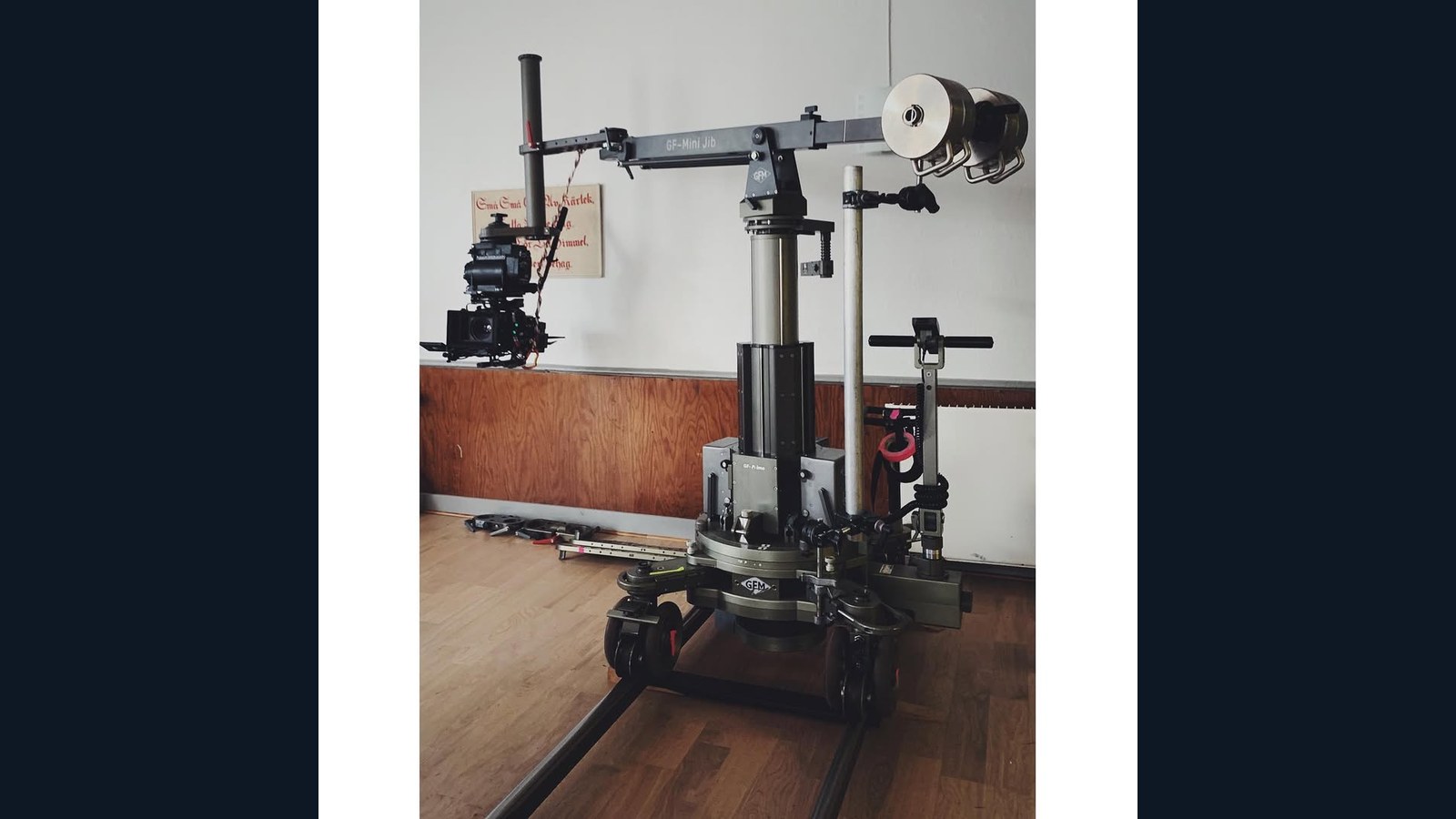

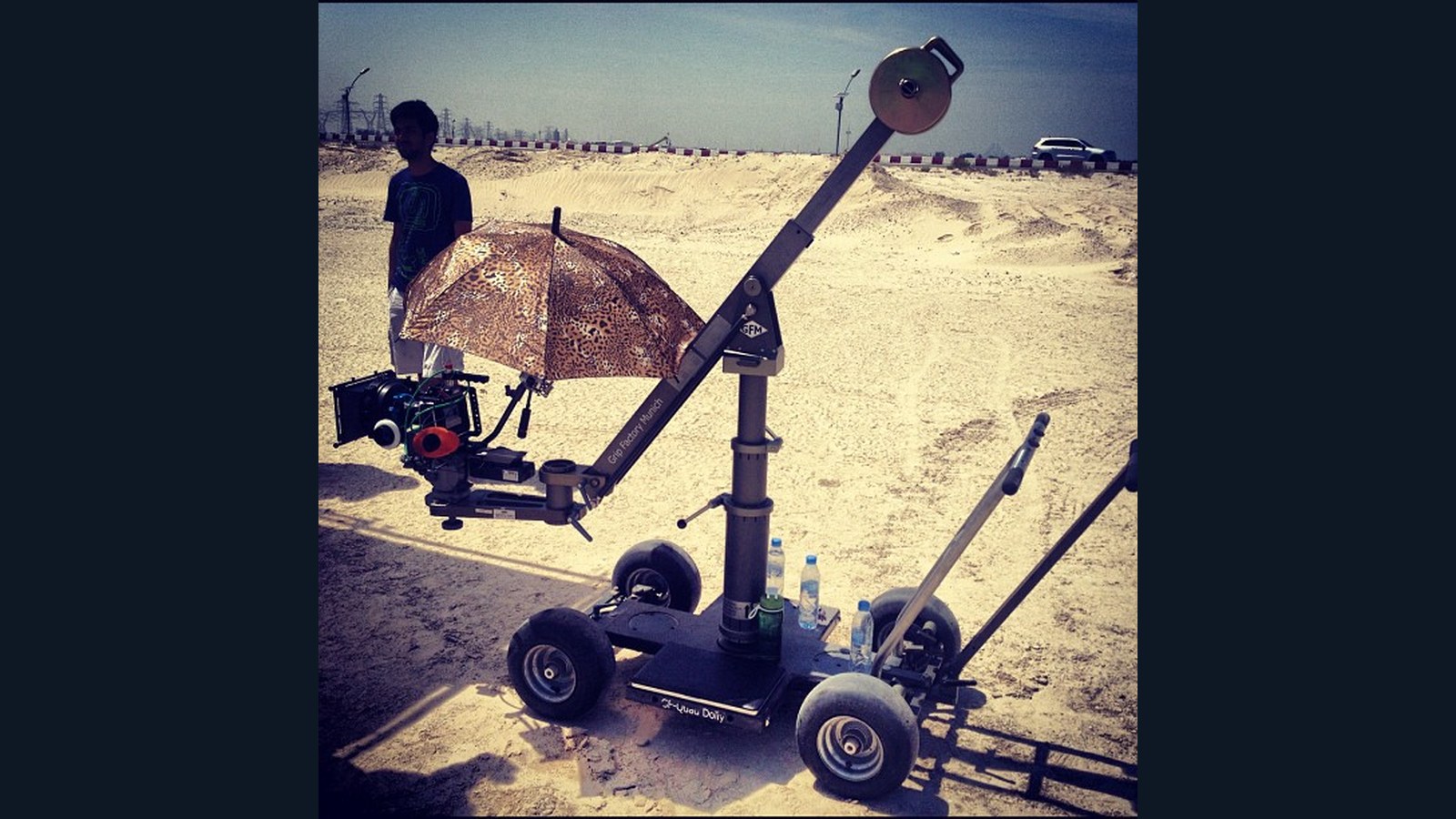

The GF-Mini Jib gives a full-size move out of a single flight case: 82 cm of reach, 120 cm of lift range and 53° of tilt, at 17 kg of arm weight. It carries camera packages up to 30 kg and runs smooth and vibration-free off a dolly or a tripod, which makes it the arm for confined sets where a larger jib would not turn.

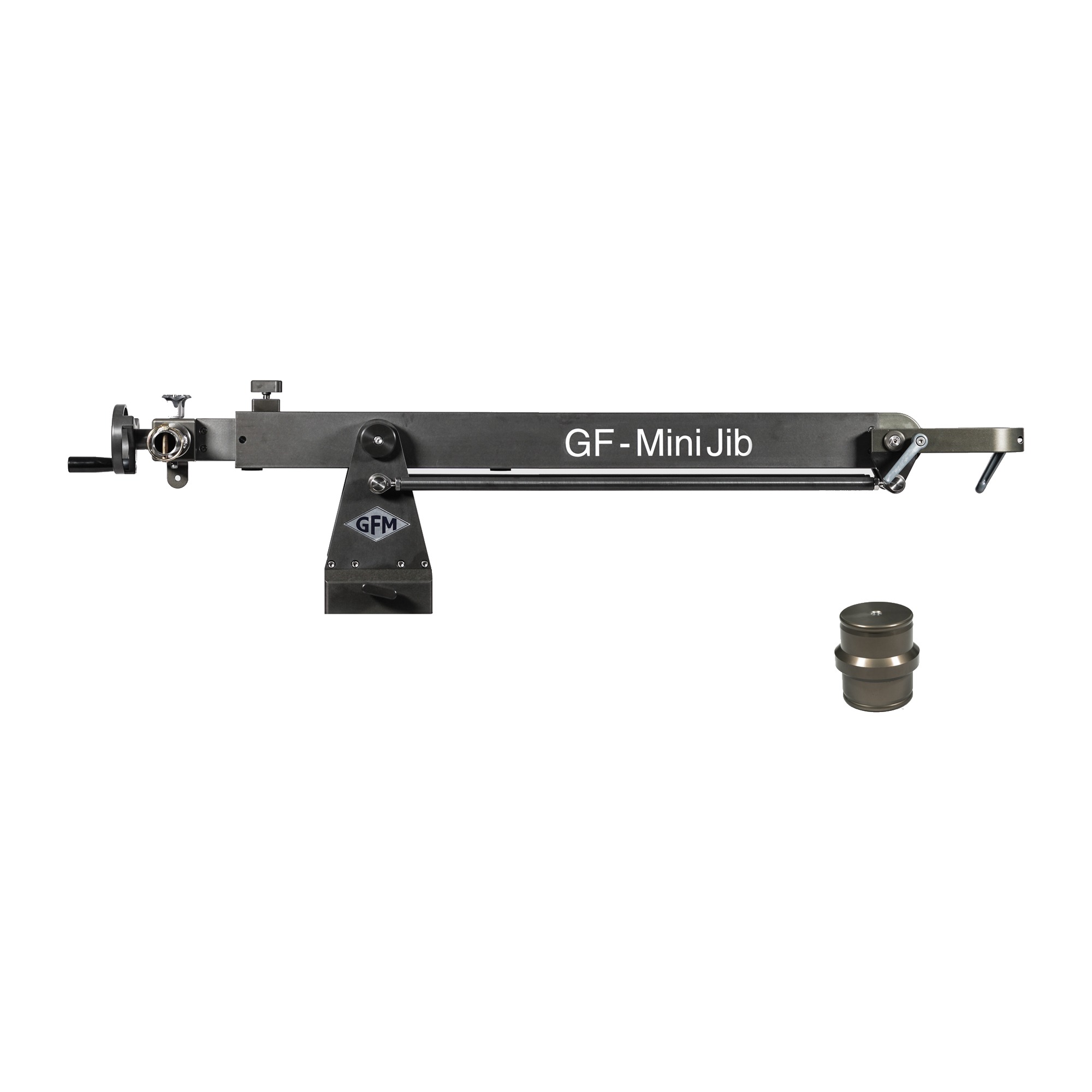

The set is complete: Mini Jib arm, double-ended Euro adapter, two safety plates for underslung mounting, a 35 cm extension tube, four 12 kg counterweights and the fitted transport case. Machined and assembled in Germany by Grip Factory Munich.
Including:
- GF-Mini Jib (GF-7700)
- Double ended Euro Adapter (AL-2405)

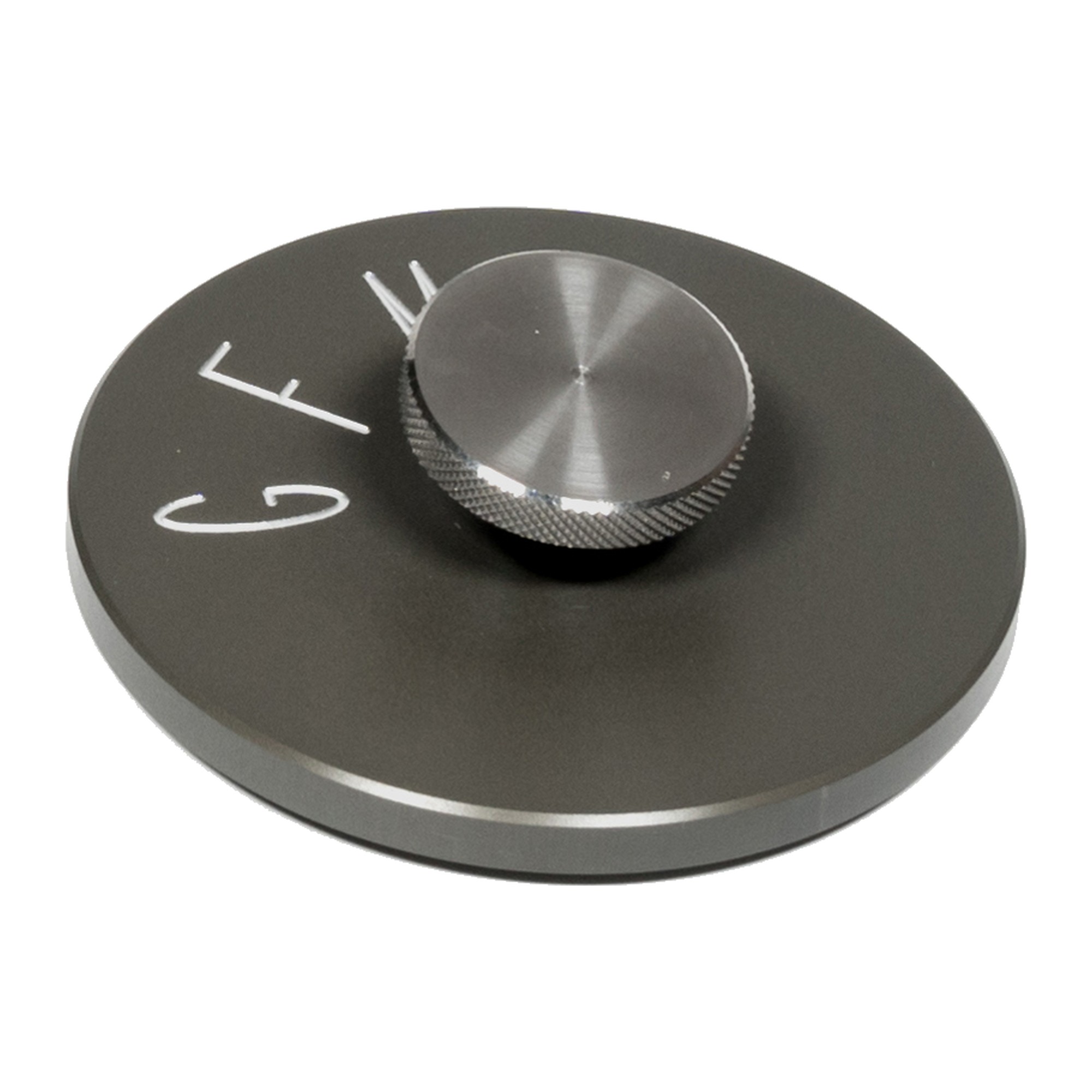

- 2 × Safety Plate for Underslung (M12) (AL-2111)

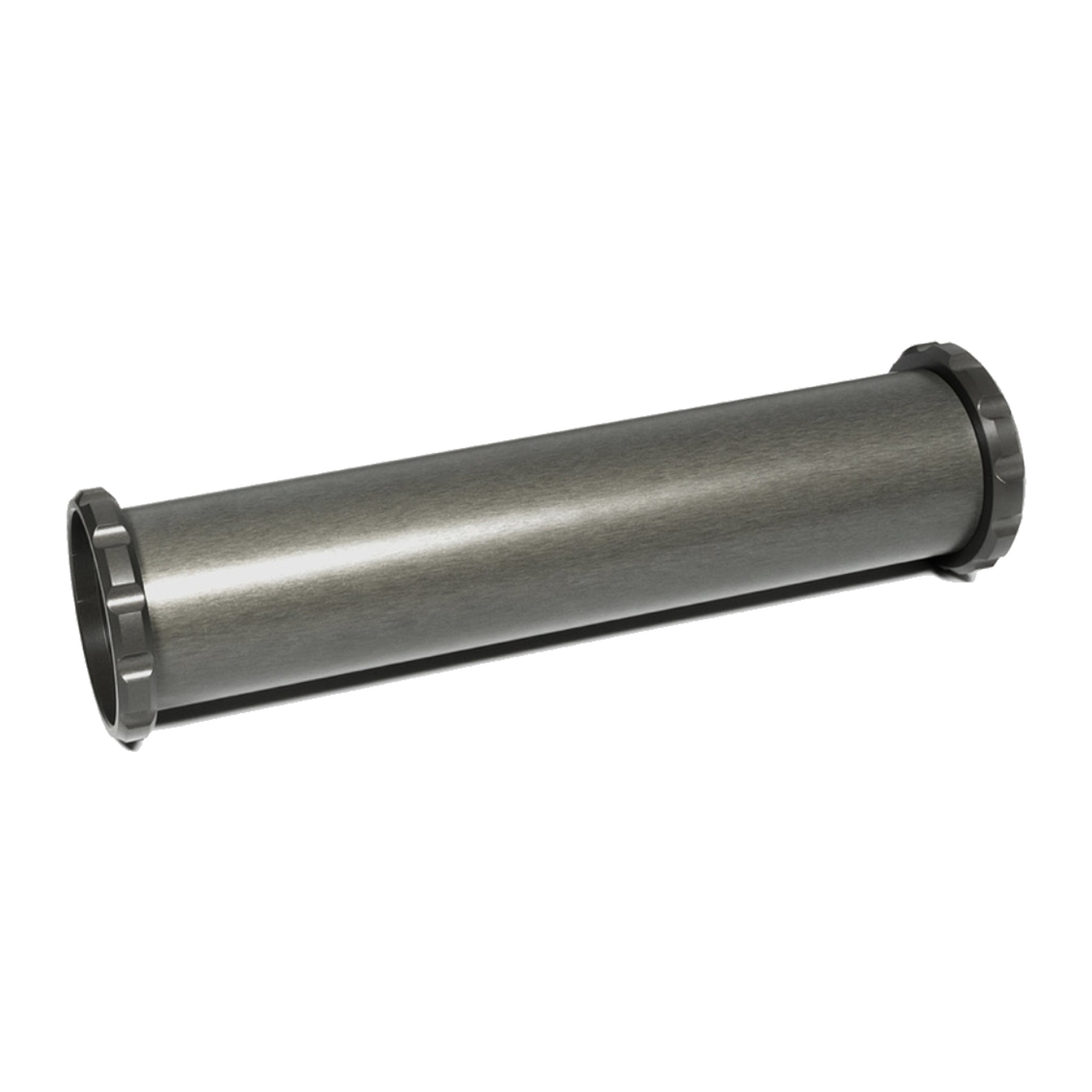

- 80 mm Extension Tube with 2 Safety Screws - 35 cm (14") (AL-2366/2)

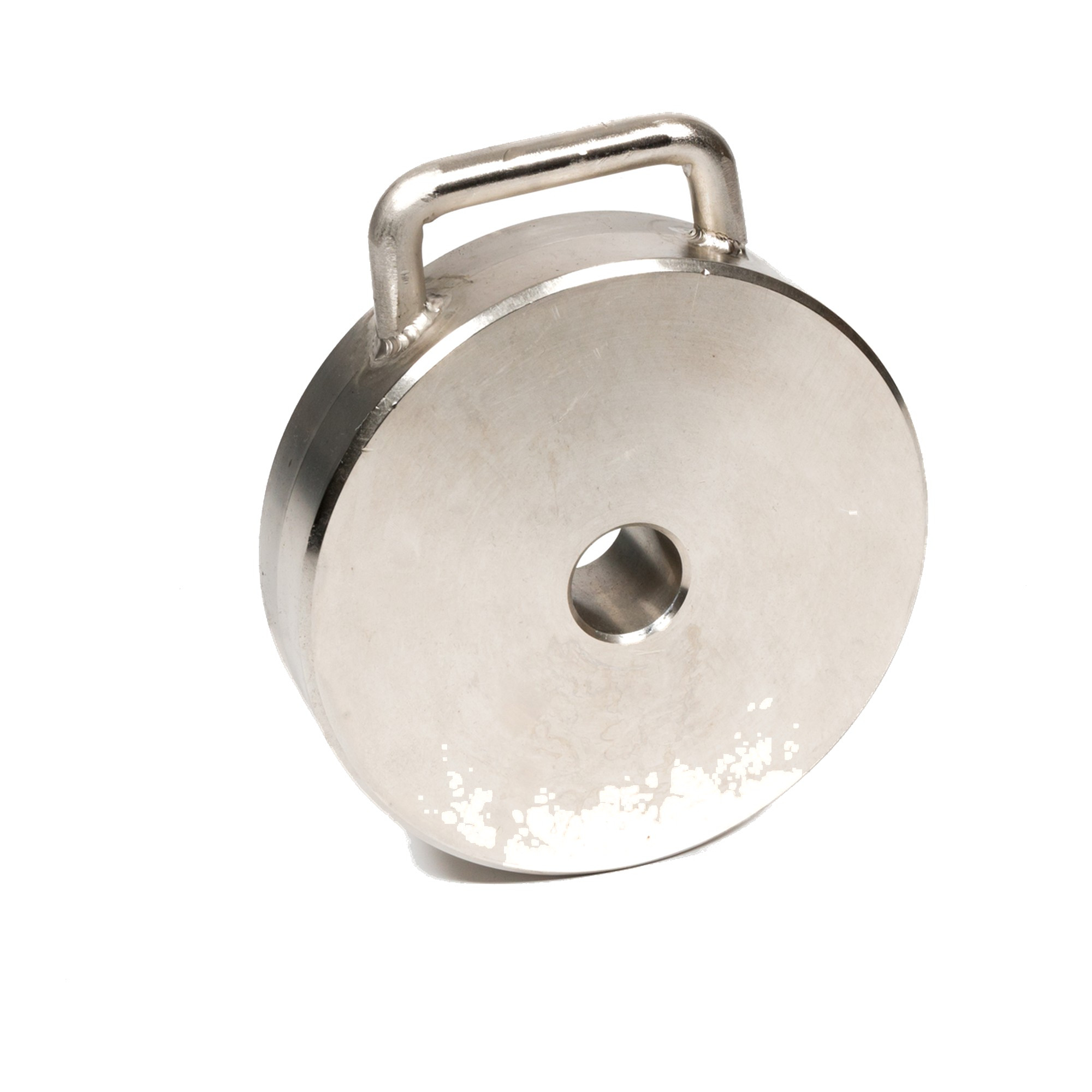

- 4 × Counterweight 12 kg (26 lbs) round (AL-2403)

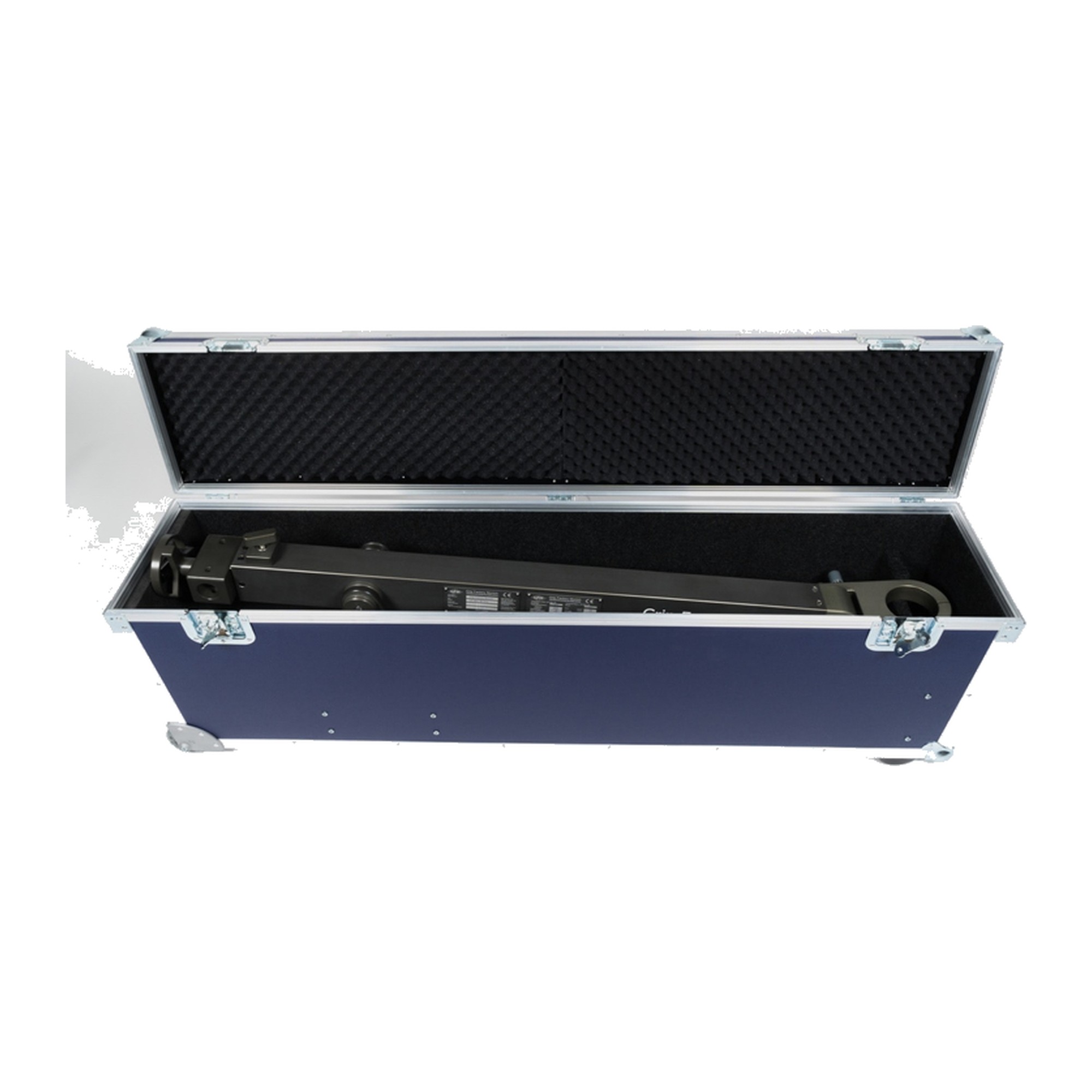

- Transport case for GF-Mini Jib (K-1509)
Set weight92.5 kg
Made in Germany · Machined & assembled in Munich, Bavaria · Ships worldwide
GF-Mini Jib · Datasheet
Reach
82 cm2'10"
Max payload
30 kg66 lbs
Lift range
120 cm3'11"
Jib weight
17 kg37 lbs
| Geometry | ||
|---|---|---|
| Rear (retracted) | 31 cm | 1' |
| Rear (extended) | 100 cm | 3'3" |
| Tilt angle | 53° | |
| Capacity | ||
|---|---|---|
| Max counterweight | 48 kg / 4 × 12 kg | 105 lbs |
| Configuration | ||
| Camera head | Mitchell 3-Way with integrated Double Swivel | |
| Jib mount | Euro Adapter (Mitchell available) | |
