Jib ArmsGF-7500S
GF-Tele Jib Set incl. Accessories and Transport Trolley
€8,420.00excl. VAT

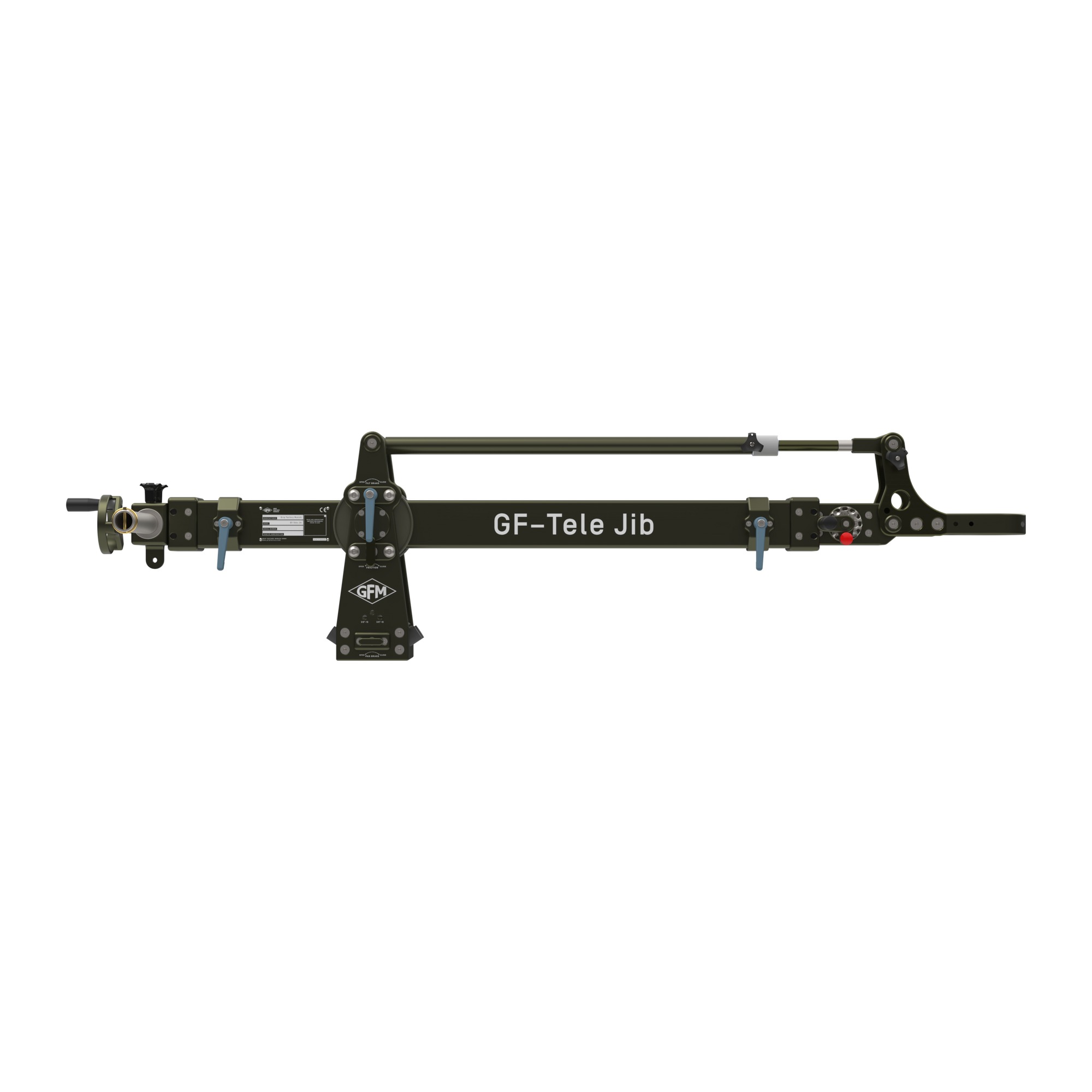

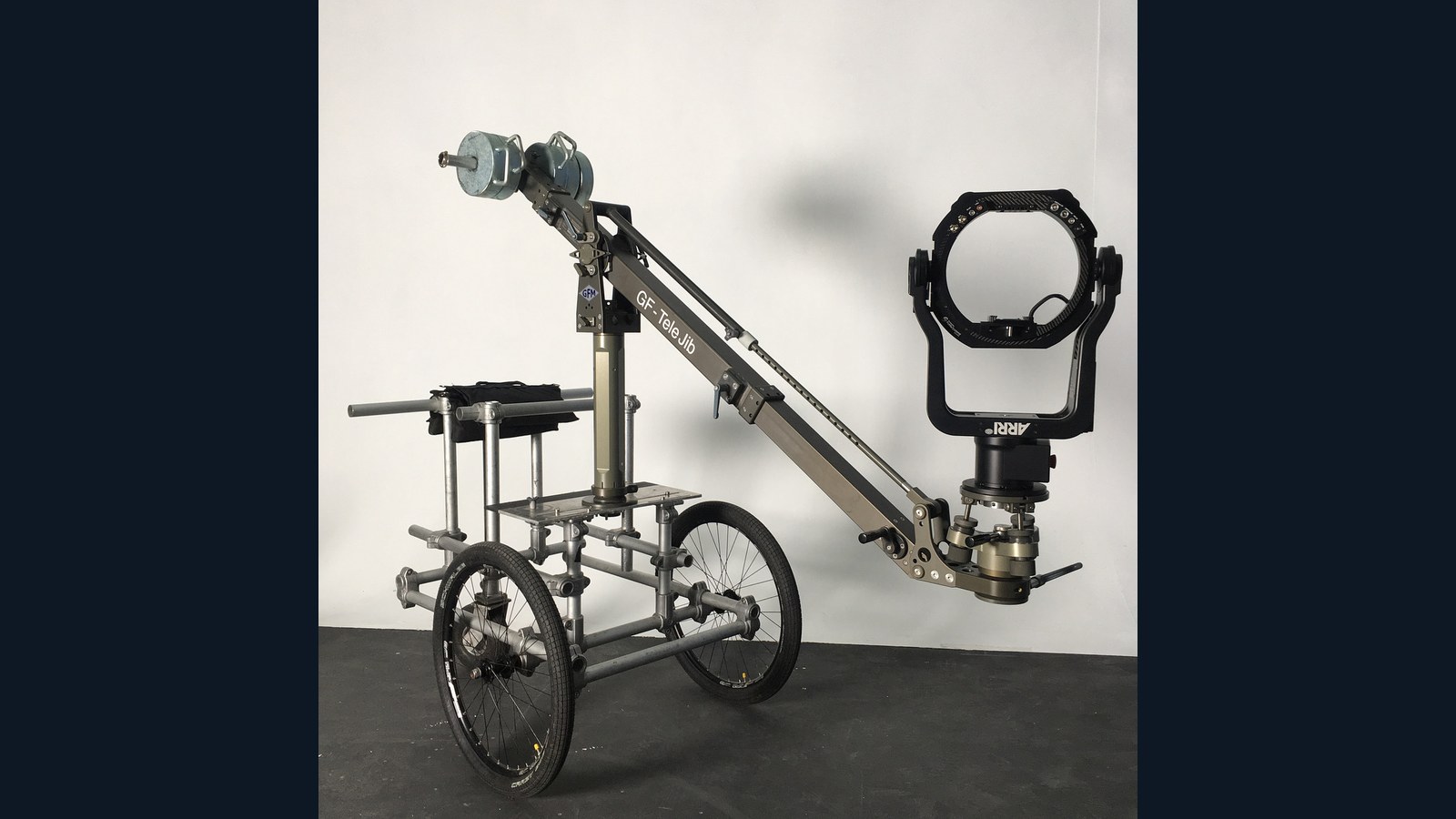

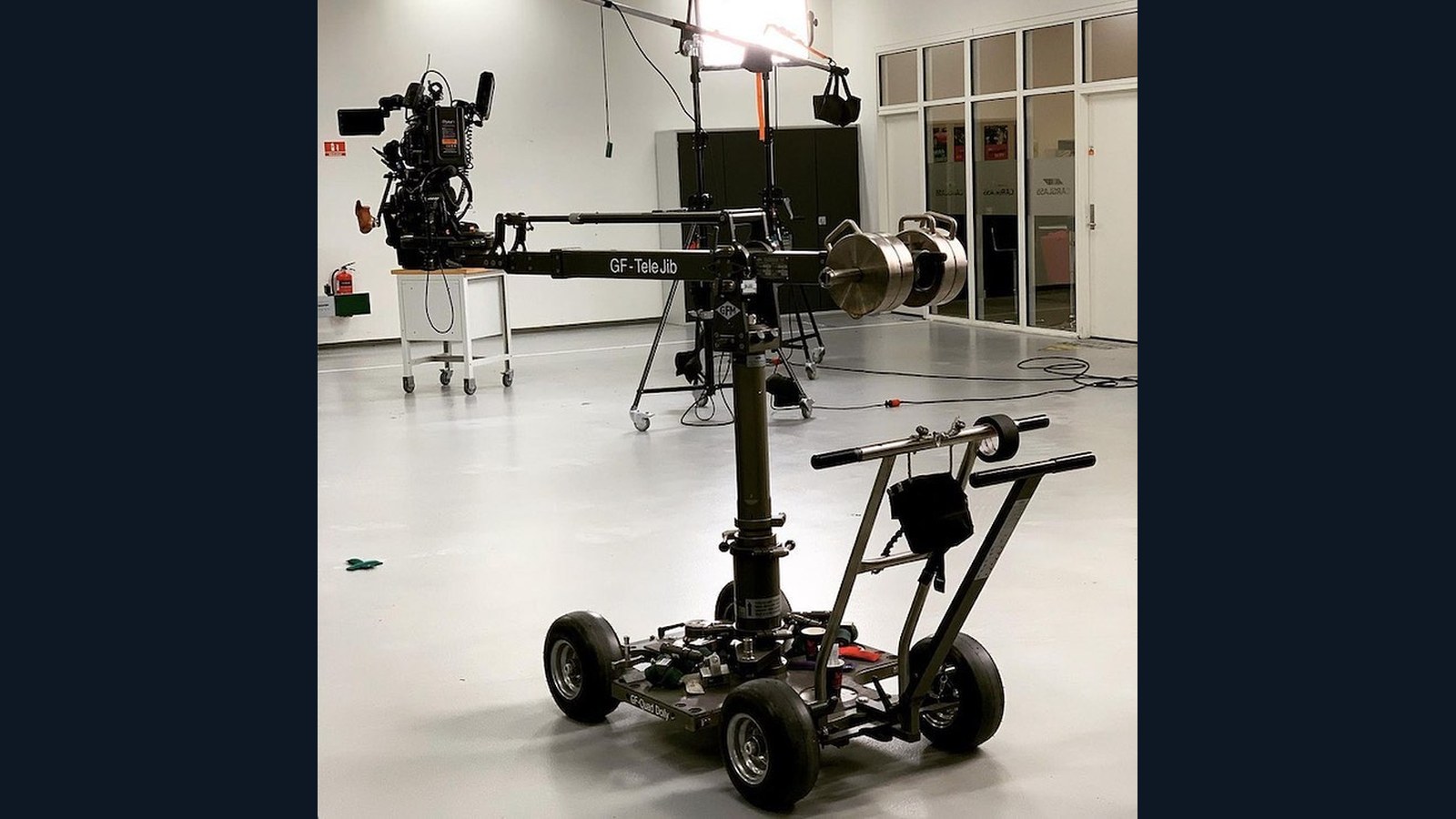

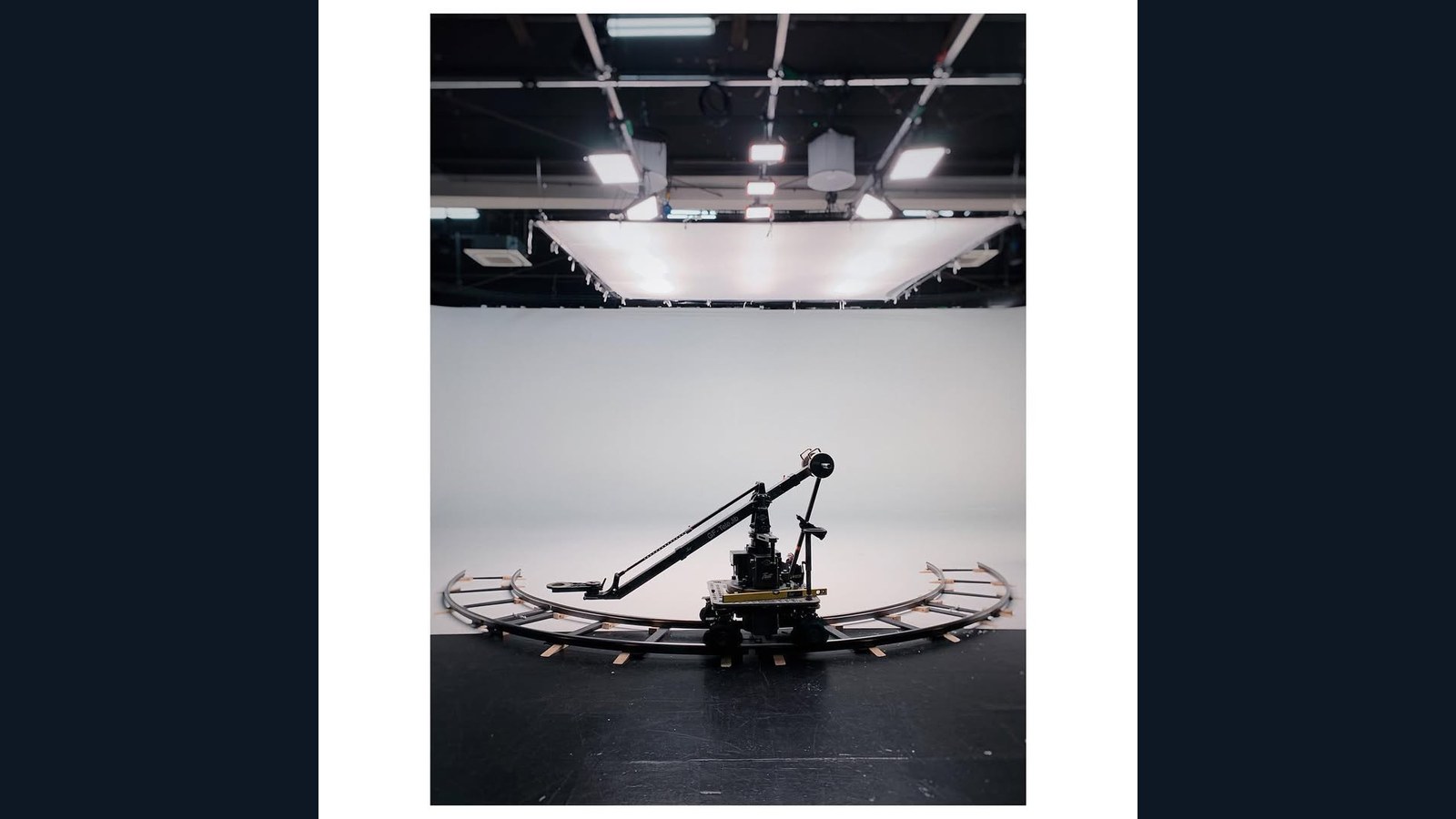

The GF-Tele Jib telescopes from 103 to 156 cm and locks at any working length in between, so a reset is a crank and a clamp instead of a rebuild. Lift range grows with it, from 143 cm retracted to 230 cm extended, and the tilt angle is 56°. Retracted it carries 45 kg, extended 30 kg — the arm to reach for when the set changes faster than the shot list.
The set arrives on its own wheels: Tele Jib arm, double-ended Euro adapter, two safety plates for underslung mounting, a 35 cm extension tube, eight 12 kg counterweights and the transport trolley. Machined and assembled in Germany by Grip Factory Munich.
Including:
- GF-Tele Jib (GF-7500)
- Double ended Euro Adapter (AL-2405)

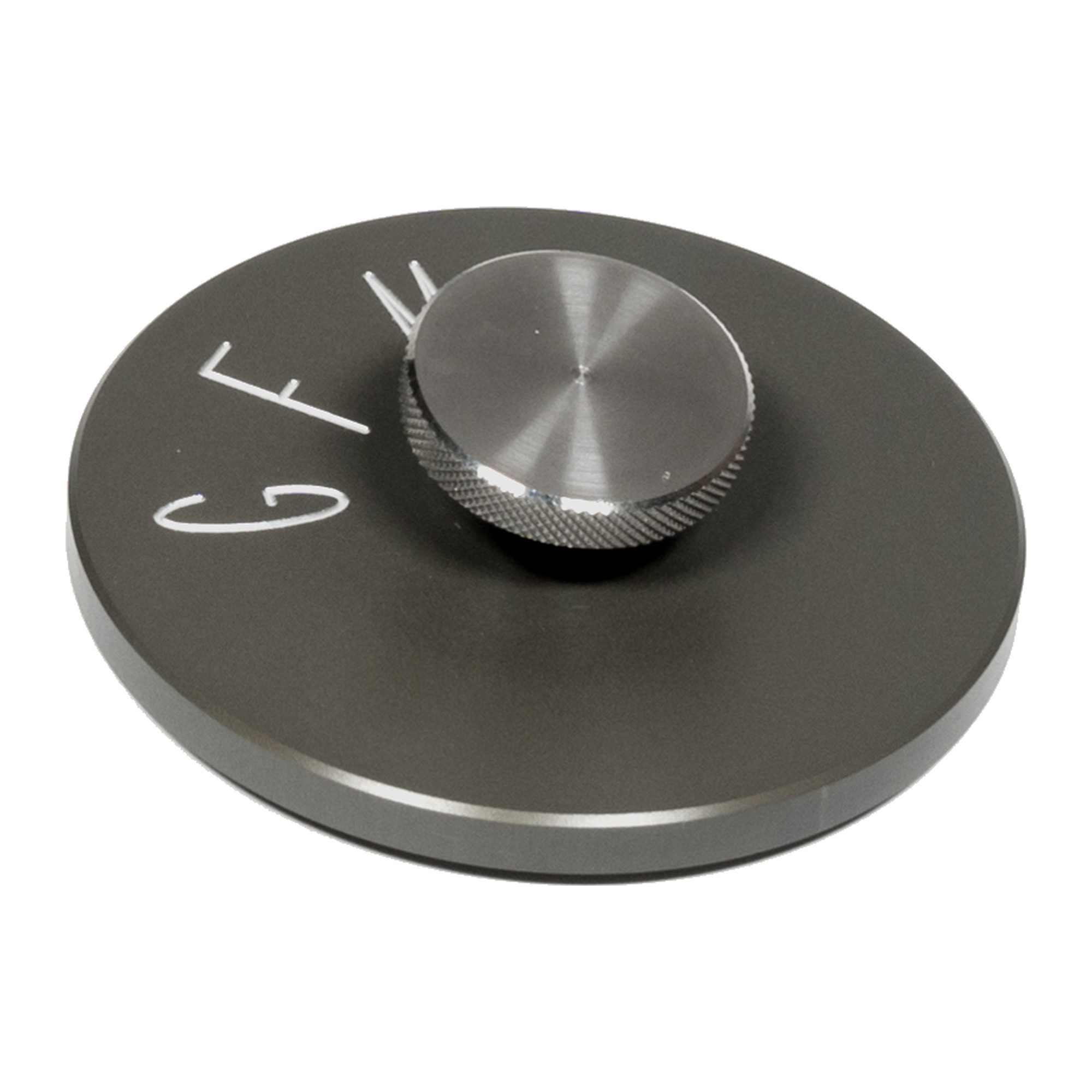

- 2 × Safety Plate for Underslung (M12) (AL-2111)

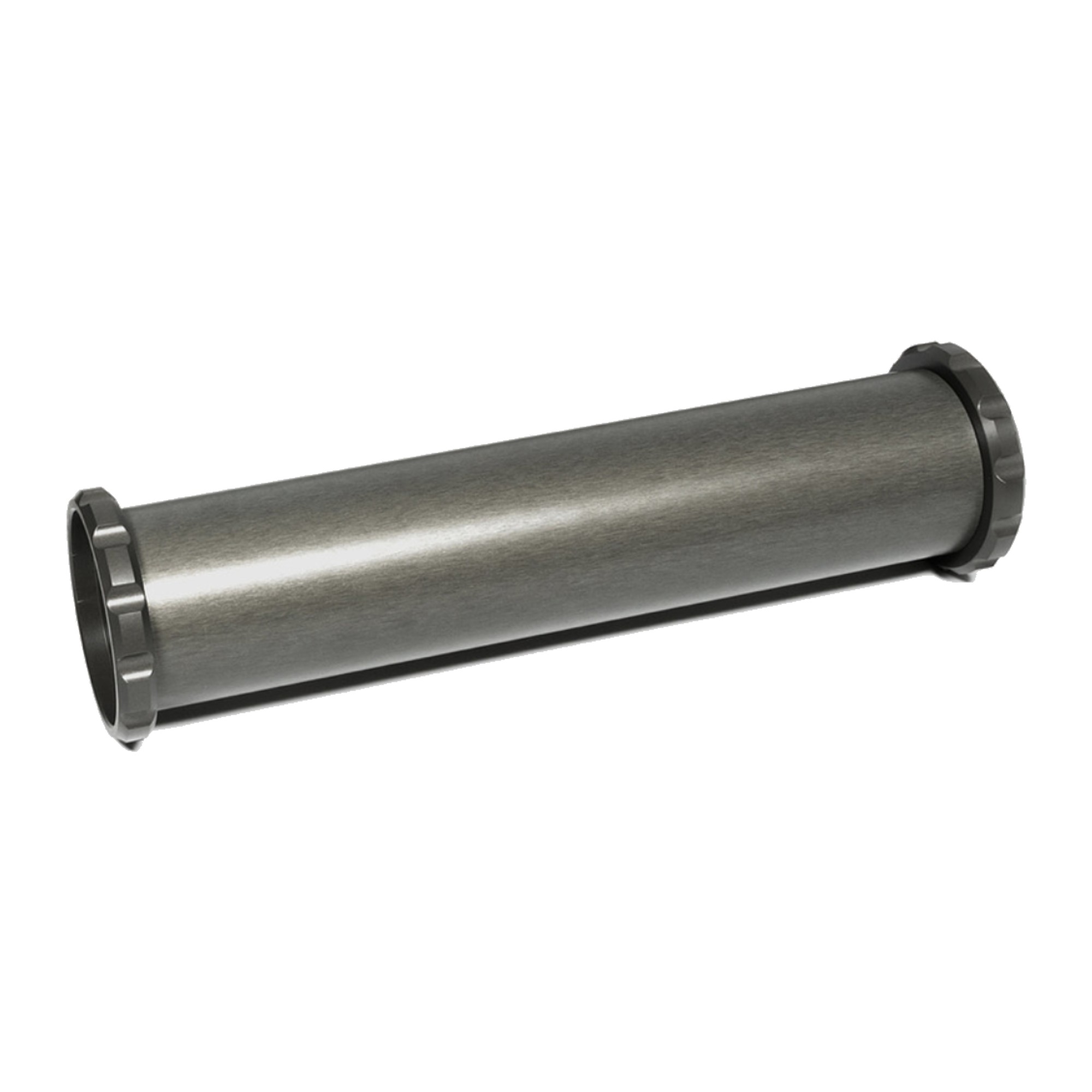

- 80 mm Extension Tube with 2 Safety Screws - 35 cm (14") (AL-2366/2)

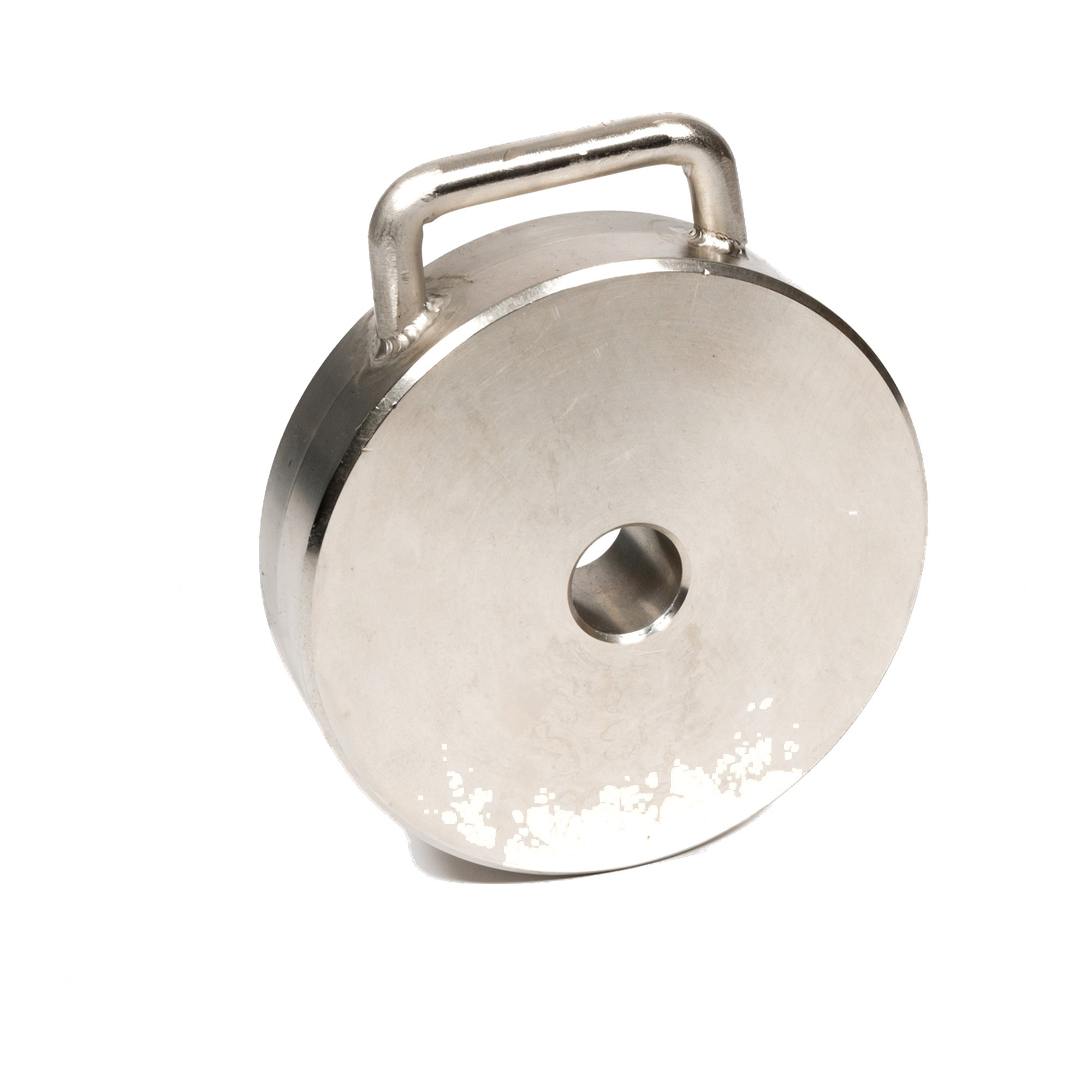

- 8 × Counterweight 12 kg (26 lbs) round (AL-2403)

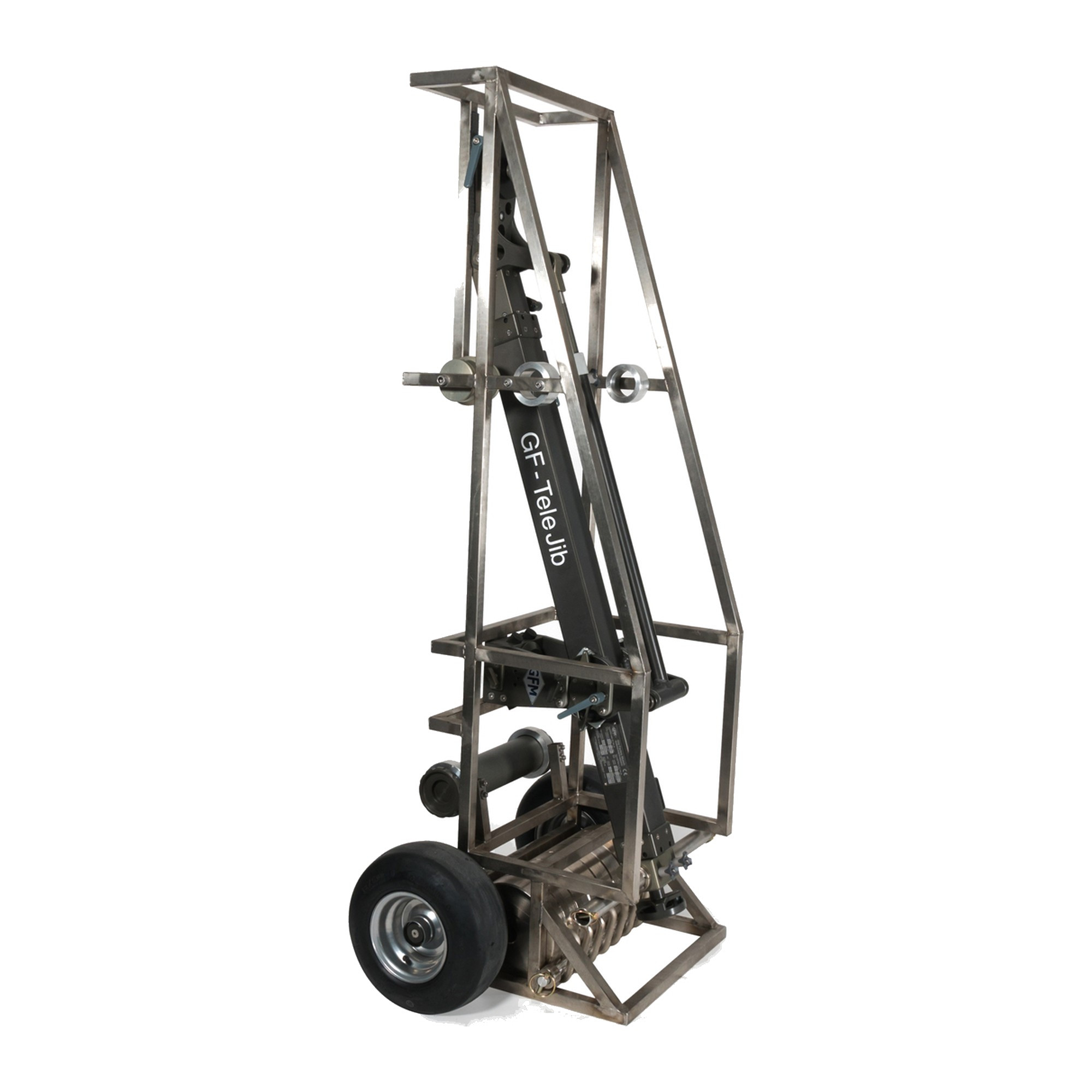

- Transport trolley for GF-Tele Jib (GF-7510)
Set weight167.0 kg
Made in Germany · Machined & assembled in Munich, Bavaria · Ships worldwide
GF-Tele Jib · Datasheet
Reach
156 cm5'2"
Max payload
45 kg99 lbs
Lift range
230 cm7'7"
Jib weight
25 kg55 lbs
| Retracted / extended | ||
|---|---|---|
| Retracted | Extended | |
| Front | 103 cm3'5" | 156 cm5'2" |
| Rear | 37 cm1'3" | 54 cm1'9" |
| Lift range | 143 cm4'8" | 230 cm7'7" |
| Max payload | 45 kg99 lbs | 30 kg66 lbs |
| Geometry | ||
|---|---|---|
| Tilt angle | 56° | |
| Capacity | ||
| Max counterweight | 96 kg / 8 × 12 kg | 212 lbs |
| Configuration | ||
| Camera head | Mitchell 3-Way with integrated Double Swivel | |
| Jib mount | Euro Adapter (Mitchell available) | |
