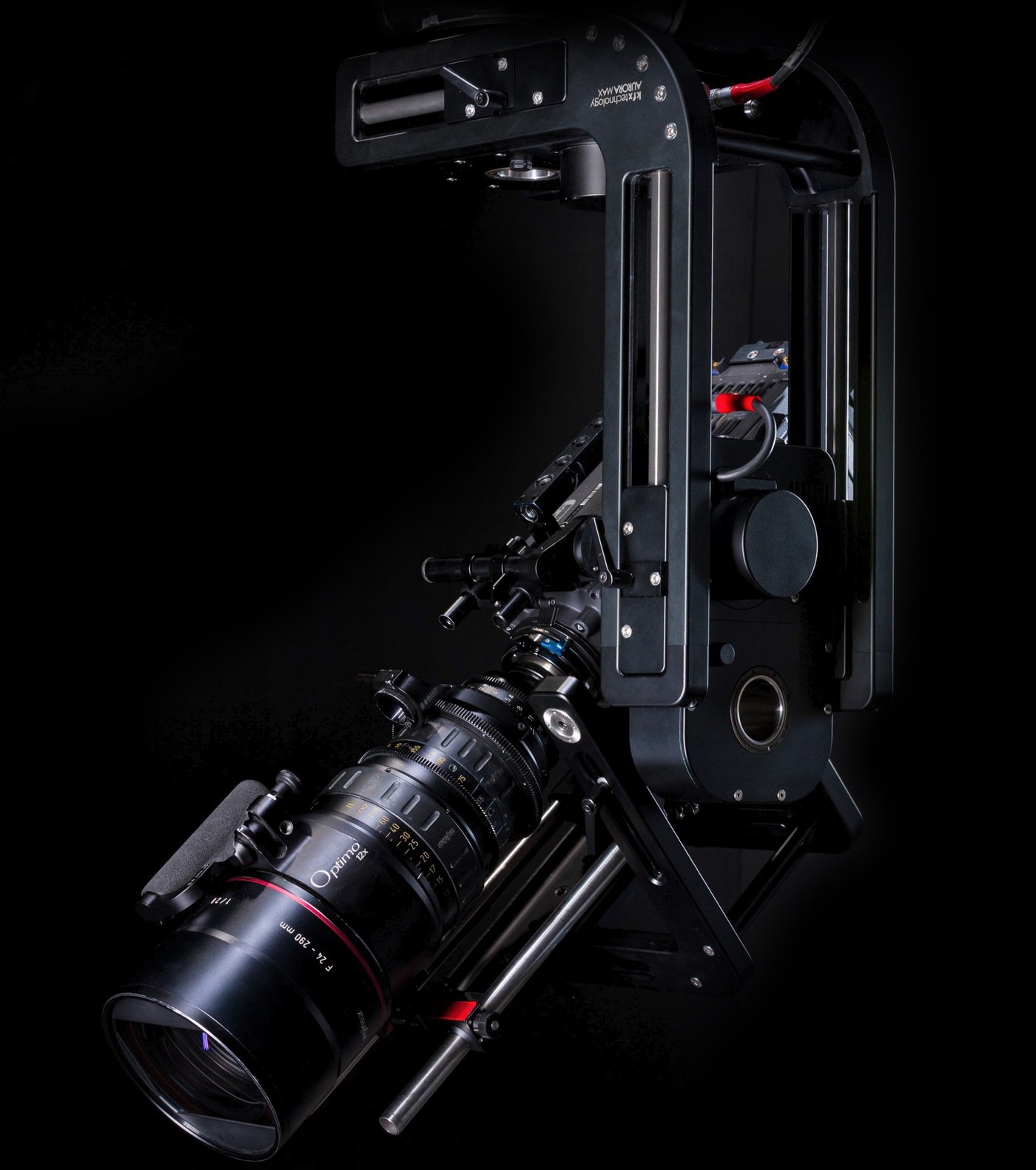

KFX Aurora Max
The Aurora for the heaviest packages.
The Aurora Max takes the largest camera packages with the heaviest zoom lenses, up to 45 kg. Same two-axis run-of-show head as the Mini, sized for the weight.
Inquire now →
KFX Aurora Max · Datasheet
| Aurora Max — head | ||
|---|---|---|
| Weight | 17 kg | 38 lbs |
| Power | 24–36 V DC | |
| MAX Roll Axis — optional third axis | ||
|---|---|---|
| Weight incl. side support | 5.8 kg | 13 lbs |
| Roll ring diameter | 29 cm | 11.4" |
| Capacity | 40 kg | 88 lbs |
The big packages, without the drama
Full-size cinema camera, heavy zoom, matte box and accessories — the Max is sized for the heaviest daily packages and keeps the same simple, quiet operation as the rest of the Aurora line.
- Light frame that does not flex
- Sets up in minutes
- Quiet running
- Optional backpan compensation
- Handwheels, pan bar and joysticks available
- Optional wireless system
- Optional motion control system
One console for every KFX head
The control console works with all KFX remote heads. Handwheel tension is adjustable, speed and soft stops are set with adjustable feathering, and the backlash-free gearbox has nothing to take up when the wheel reverses. The console is third-axis-ready and available with handwheels, pan bar and joysticks, with an optional wireless system to cut the cabling.
The MAX Roll Axis
The optional MAX Roll Axis adds a third axis with full 360-degree roll and continuous control from handwheel, joystick or the pan bar thumb controller — 40 kg capacity on the 29 cm ring, at 5.8 kg including the side support.
