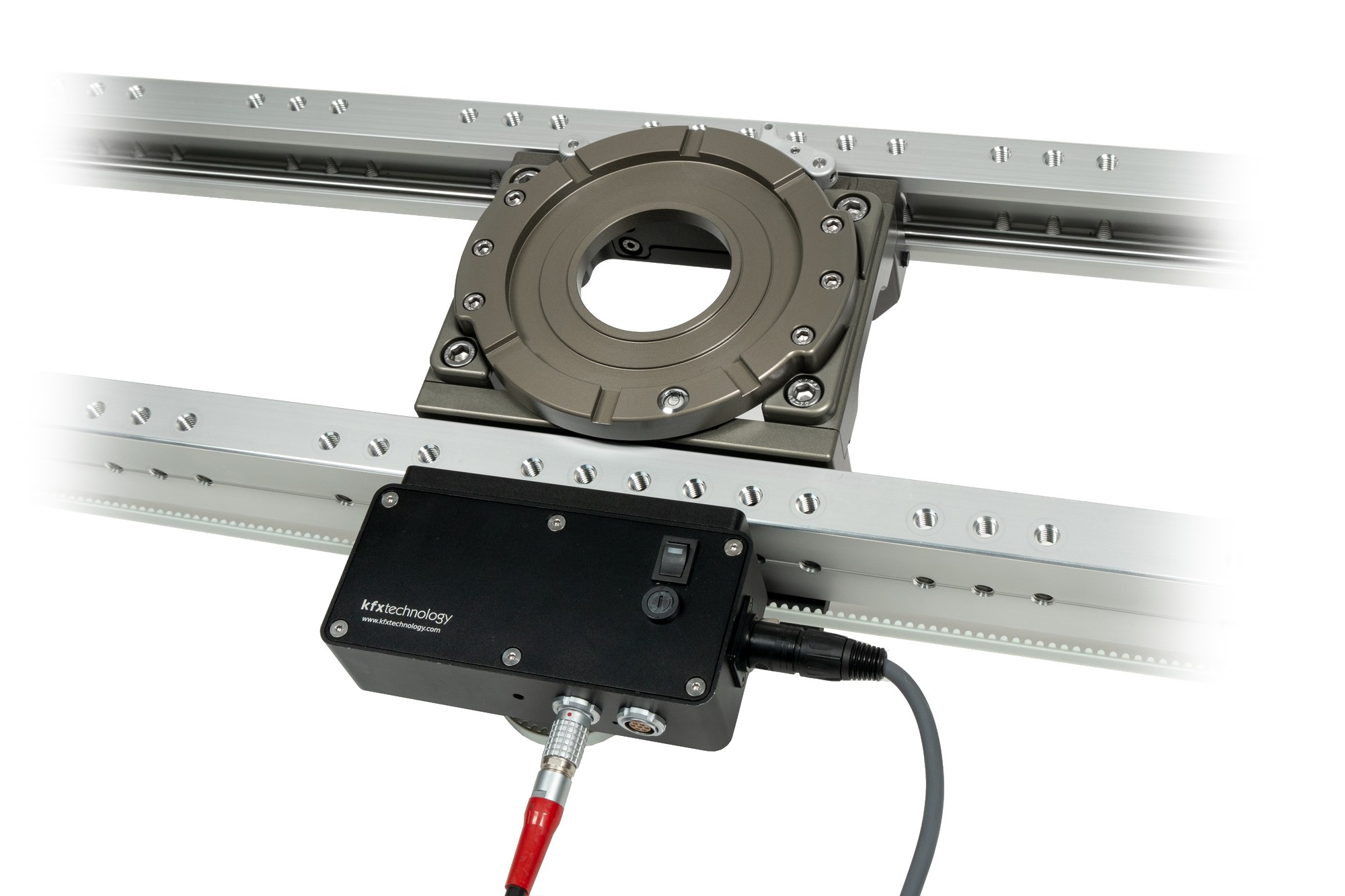

KFX GF-Slider Motor
The drive under every GFM slider.

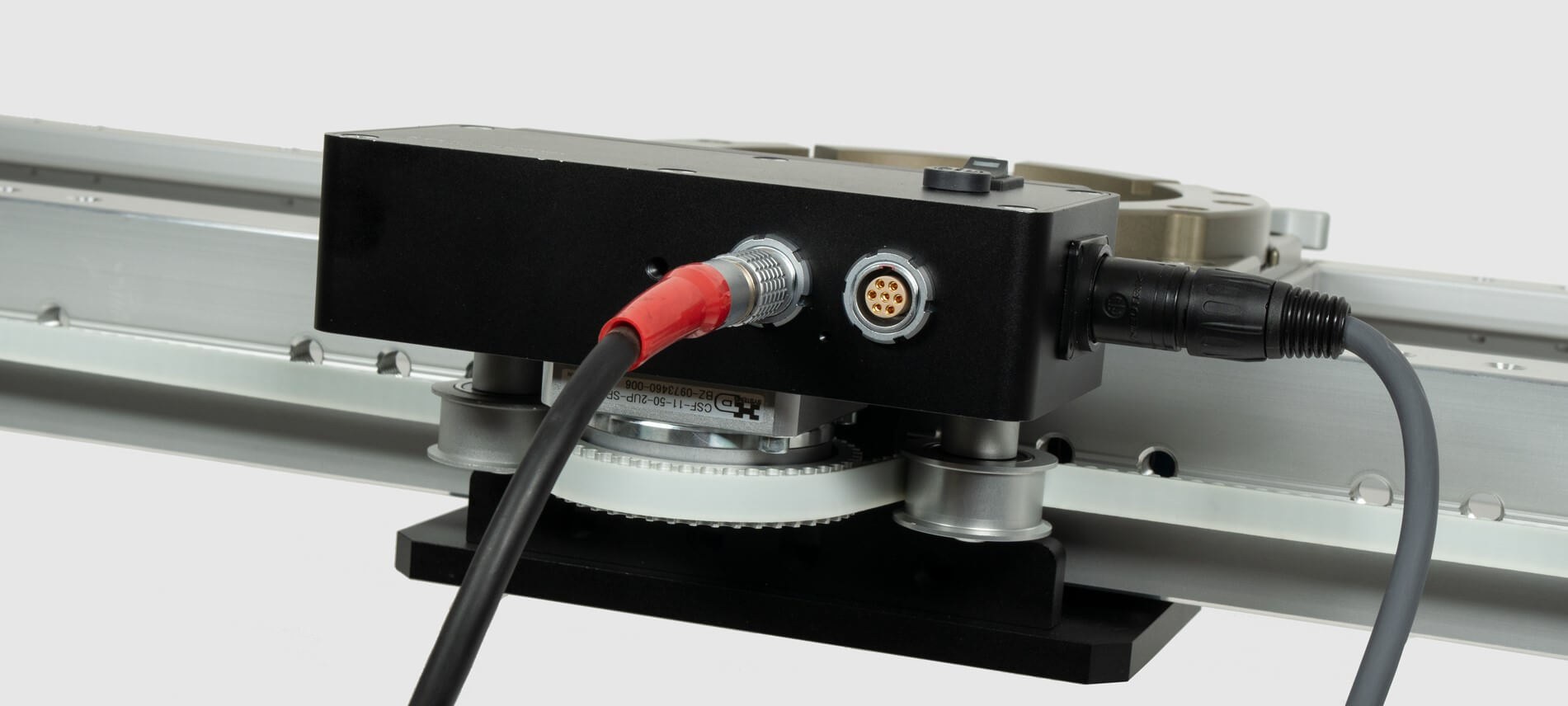

Built for the moves a slider gets asked for: car shots, slow controlled push-ins, pack shots. KFX Technology engineered the motor for the GF-Slider; it drives every GFM slider length, and it runs underslung.
Inquire now →
KFX GF-Slider Motor · Datasheet
| KFX GF-Slider Motor | ||
|---|---|---|
| Gearbox | 50:1 | |
| Weight | 1 kg | 2.2 lbs |
| Power | 24–36 V battery | |
| Power supply | optional | |
| Capacity & speed | ||
|---|---|---|
| At 20° incline · full speed | 15 kg | 33 lbs |
| Variable speed | 1–460 mm/s | |
Silky smooth
Plug and play: on the rail and running in five minutes, with fully digital speed control on a rotary knob.
- Programmable end stops with adjustable ramping in and out
- Smoothing control for easy, controlled starts and stops
- Variable speed from 1 mm/s to 460 mm/s
- Accommodates all GFM slider lengths
- Customisation available
What it pulls

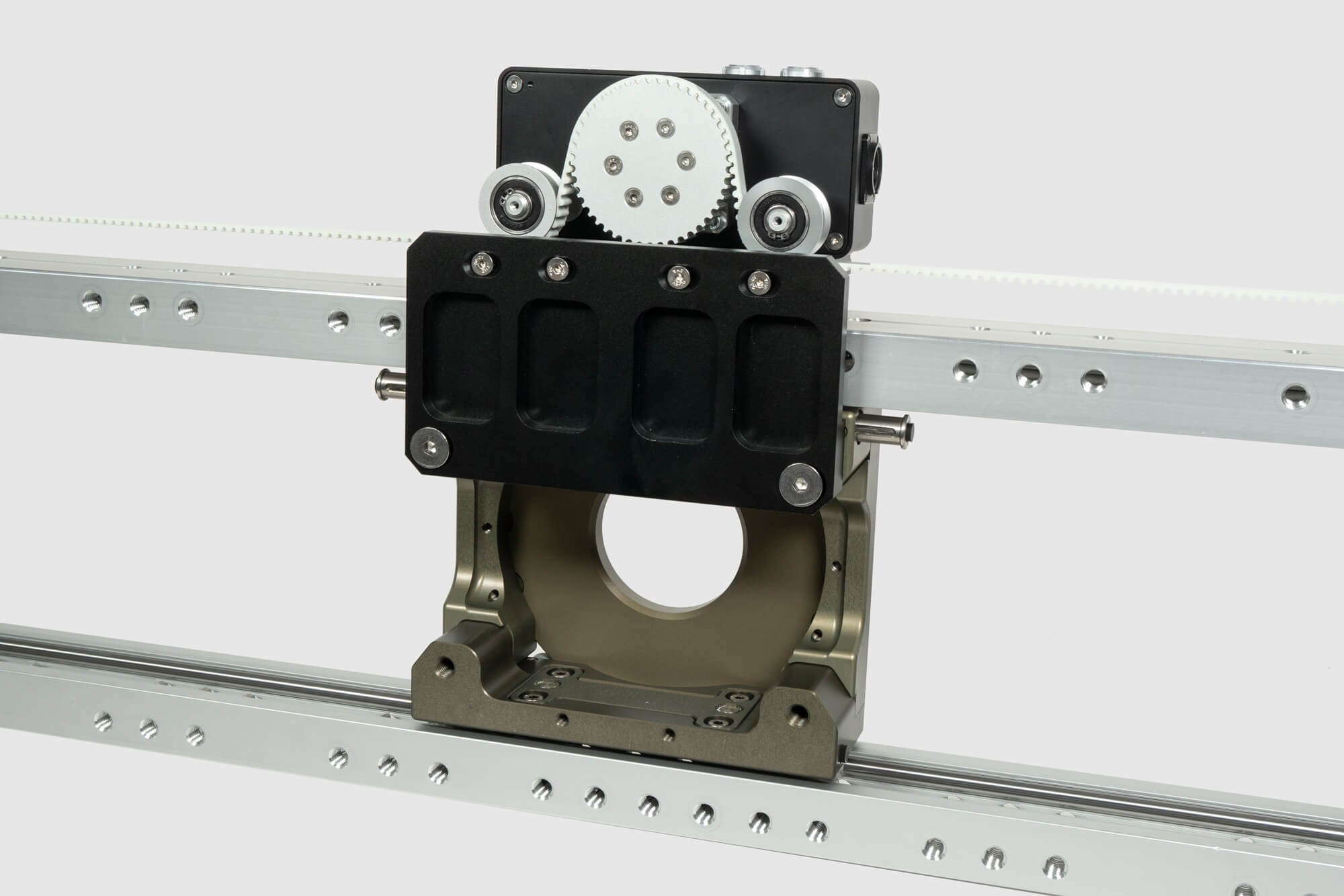

Mounted on a car rig, taking the camera up a steep incline, or running underslung beneath the rail: 60 kg horizontally, and 15 kg at full speed on a 20-degree incline.
You stay in full control

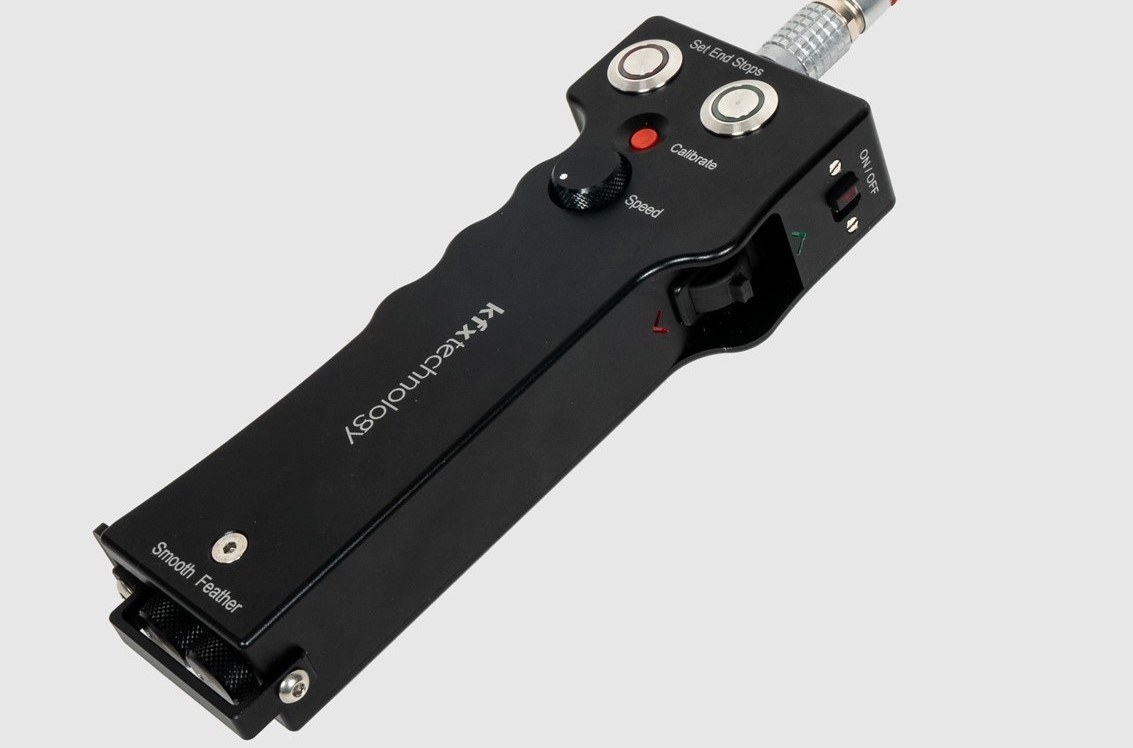

The handheld remote keeps speed, smoothing and feathering on physical controls — intuitive enough to hand to anyone on set. Repeat software is available for simple, frame-accurate saved moves, and a KFX remote head turns the rig into full three-axis motion control, time-lapse included.
