GF-Multi Offset Rig
Quick offsetting and panning, horizontal or vertical. Double brake system, three tube lengths.

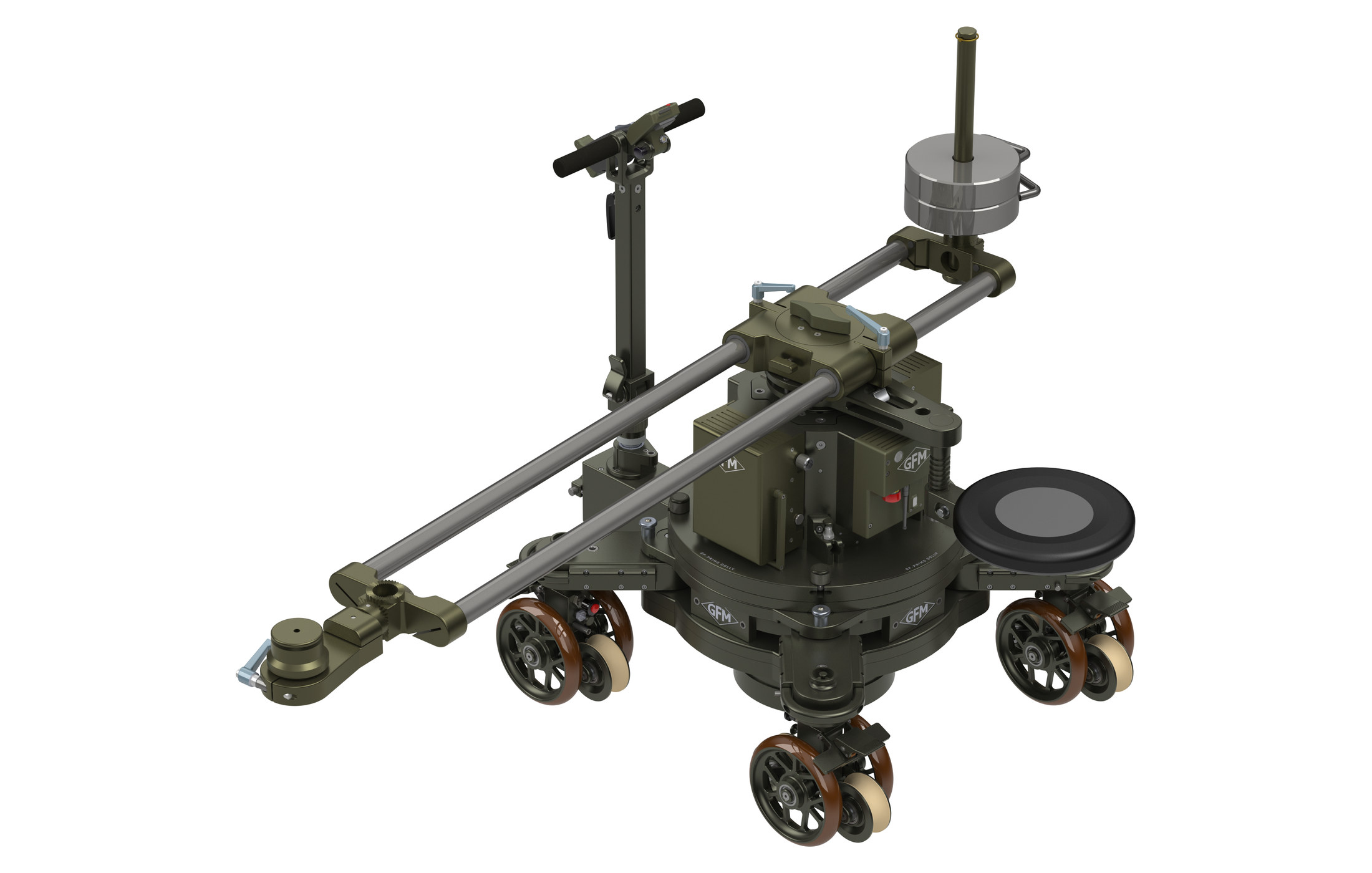

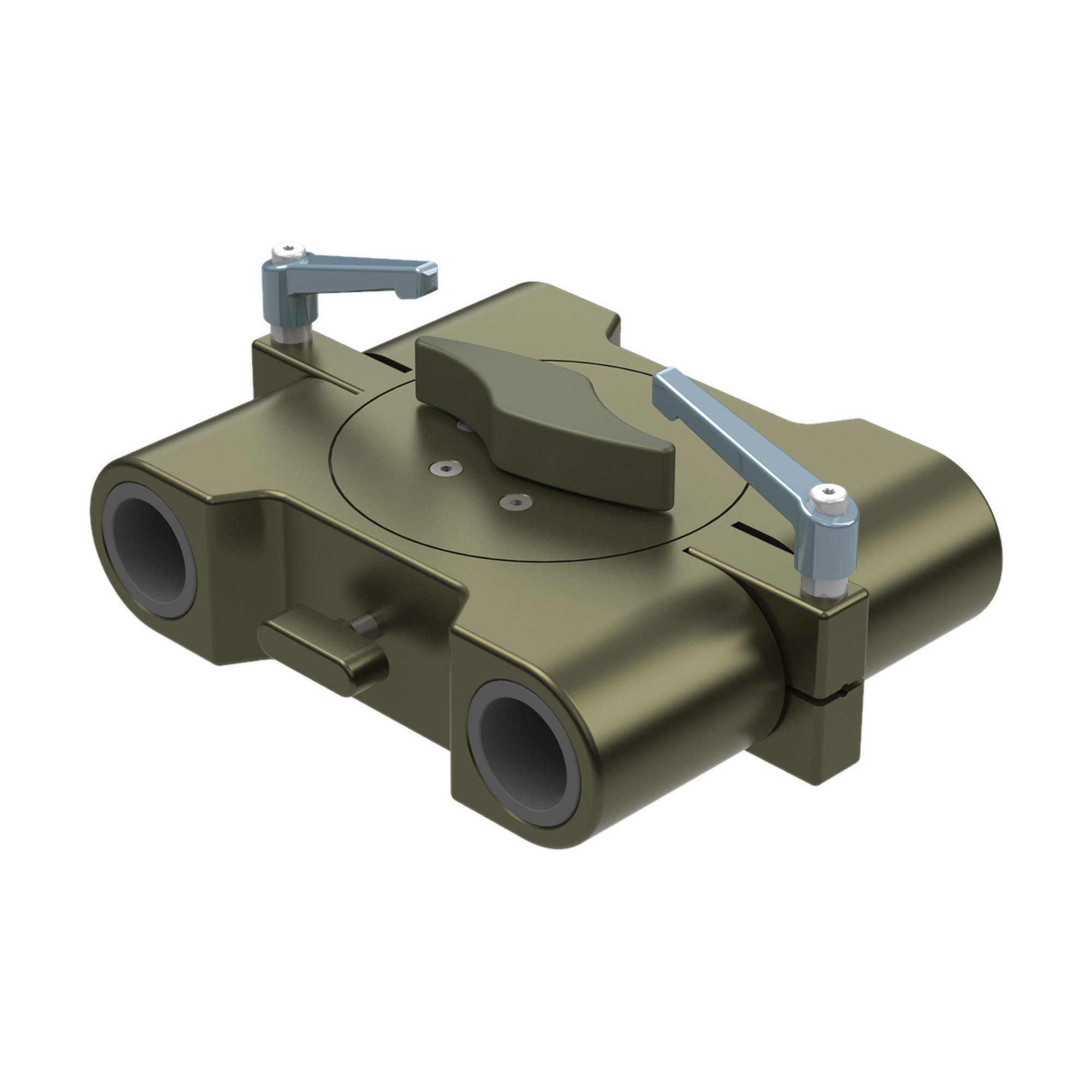

The Centre Part holds the pan axis and both brakes, so an offset can be set, locked and still panned. Reinforced bearings carry the load of a camera working a long way off the centre of a dolly, and the same part clamps flat or upright.
GF-Multi Offset Rig · Datasheet
| Parts per rig | ||
|---|---|---|
| Centre Part | 1 × 8.3 kg | 18 lbs |
| Tubes | 2 × same length | |
| End Mounts | 2 × 1.2 kg | 2.6 lbs |

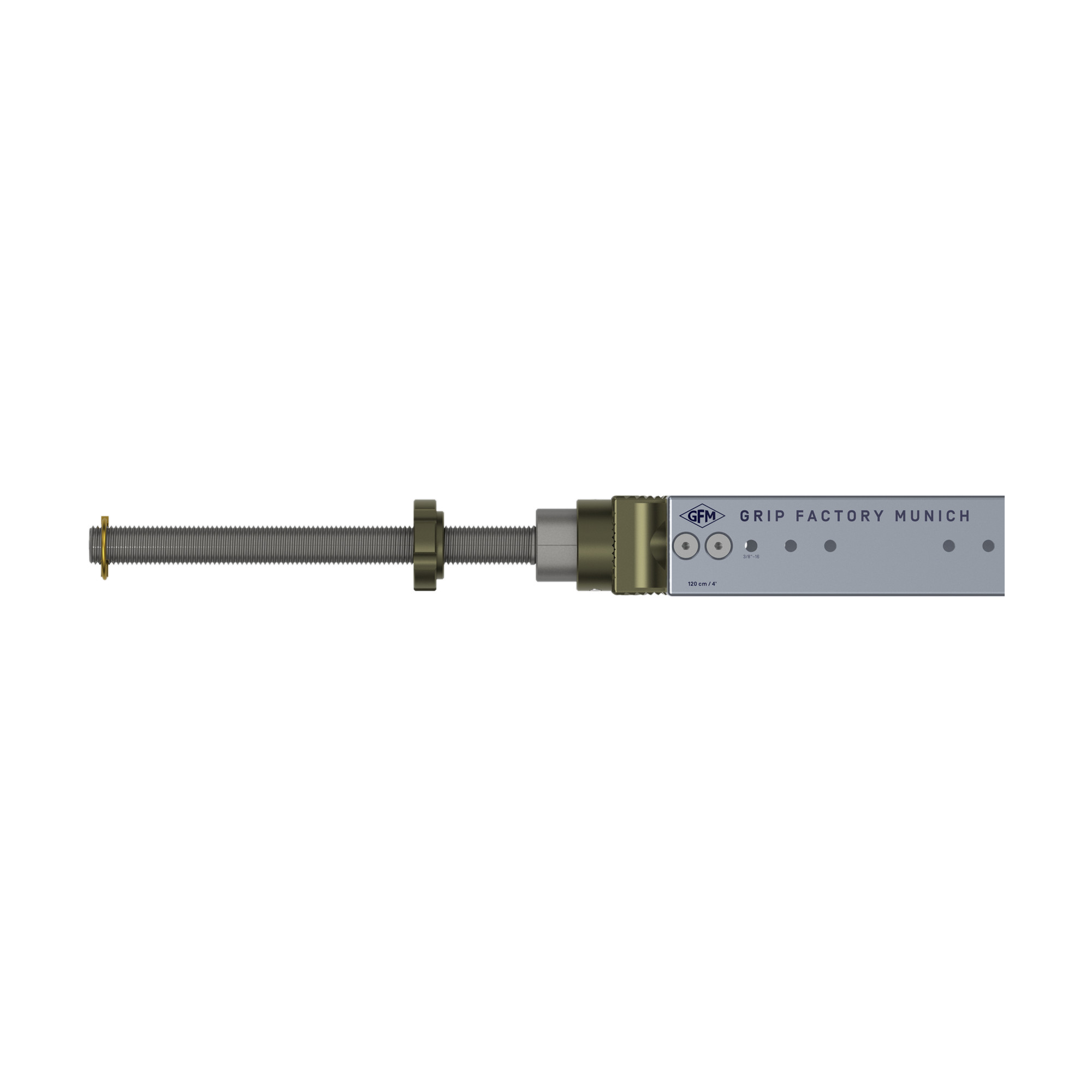

| Counterweight | Rod for jib or 1" gym weights | |
| Tube weights (per piece) | ||
|---|---|---|
| 100 cm | 5.7 kg | 13 lbs |
| 150 cm | 8.5 kg | 19 lbs |
| 200 cm | 11.4 kg | 25 lbs |
| Head fittings | ||
| Mitchell | Nose Mount (Mitchell) | |
| Mitchell, levelling | Nose Mount (Mitchell 4-Way) | |
| Bowl | 100 mm or 150 mm | |
| Euro | Nose Mount (Euro Clamp) | |
Horizontal or vertical, same rig

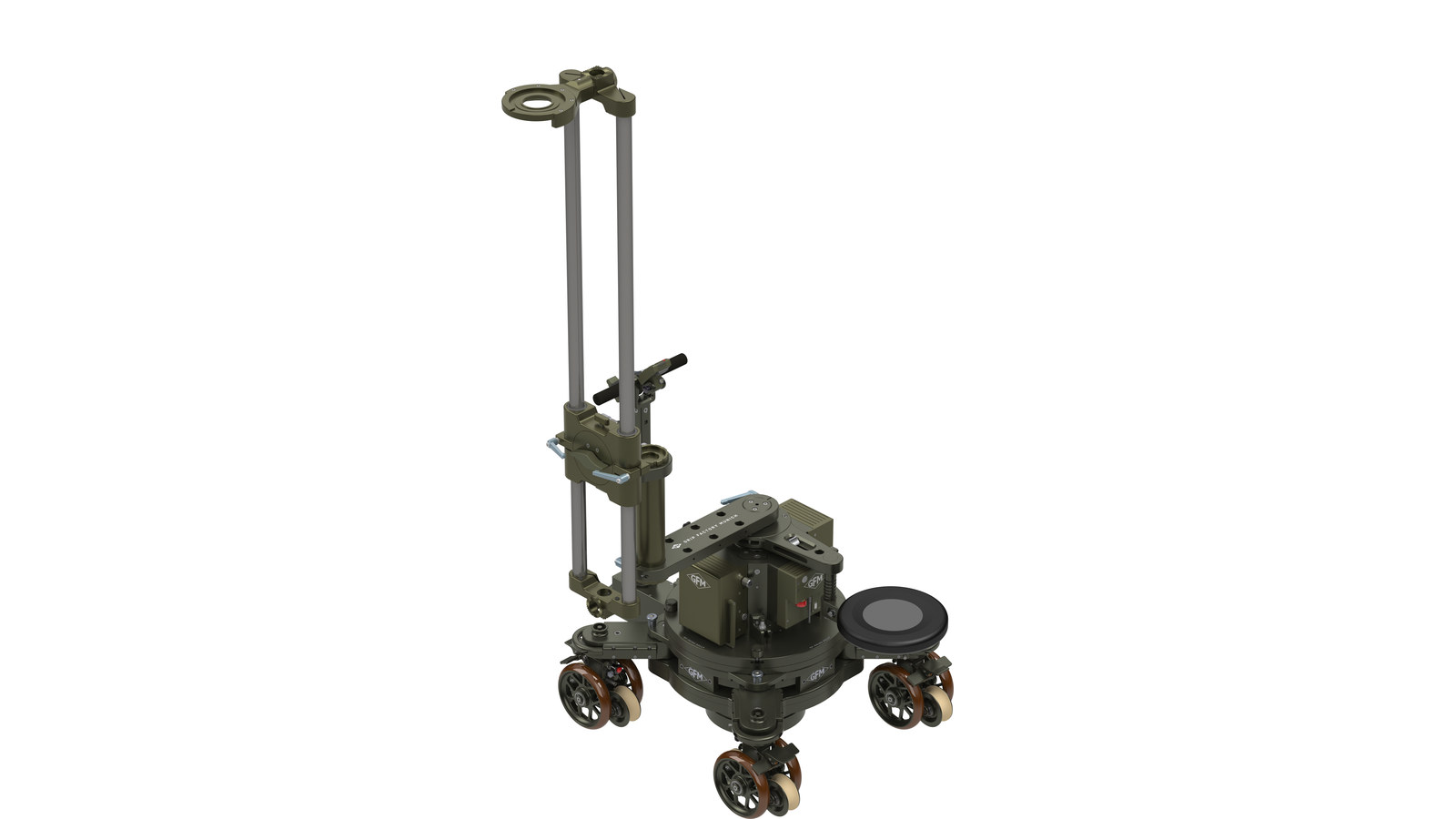

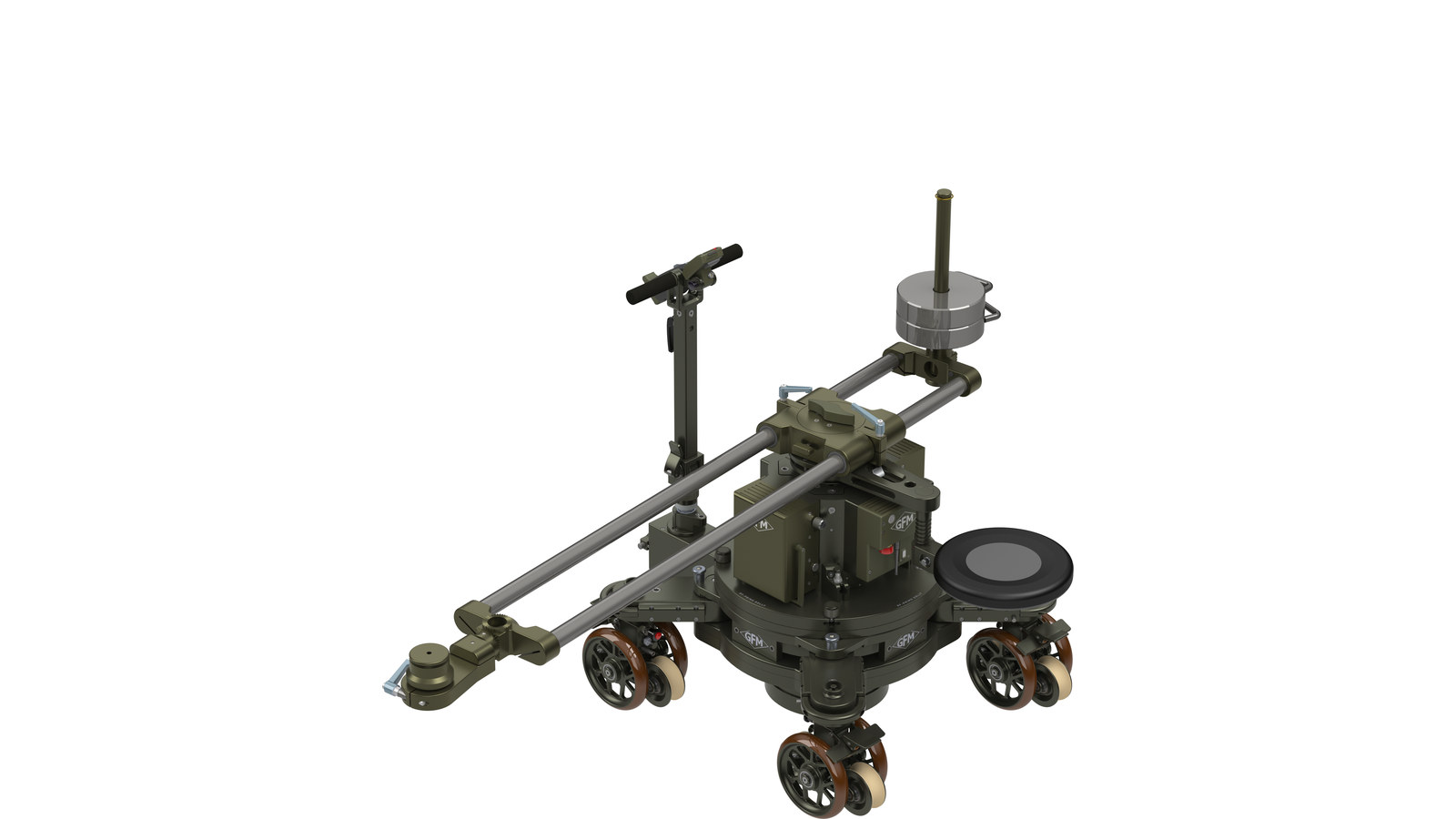

The Centre Part clamps to the dolly in two orientations. Laid flat it swings the camera out to the side, past the wheels and past the operator; stood upright it becomes a column that lifts the head above the dolly. Nothing is added or swapped between the two — the same five parts build both.
Three lengths of reach

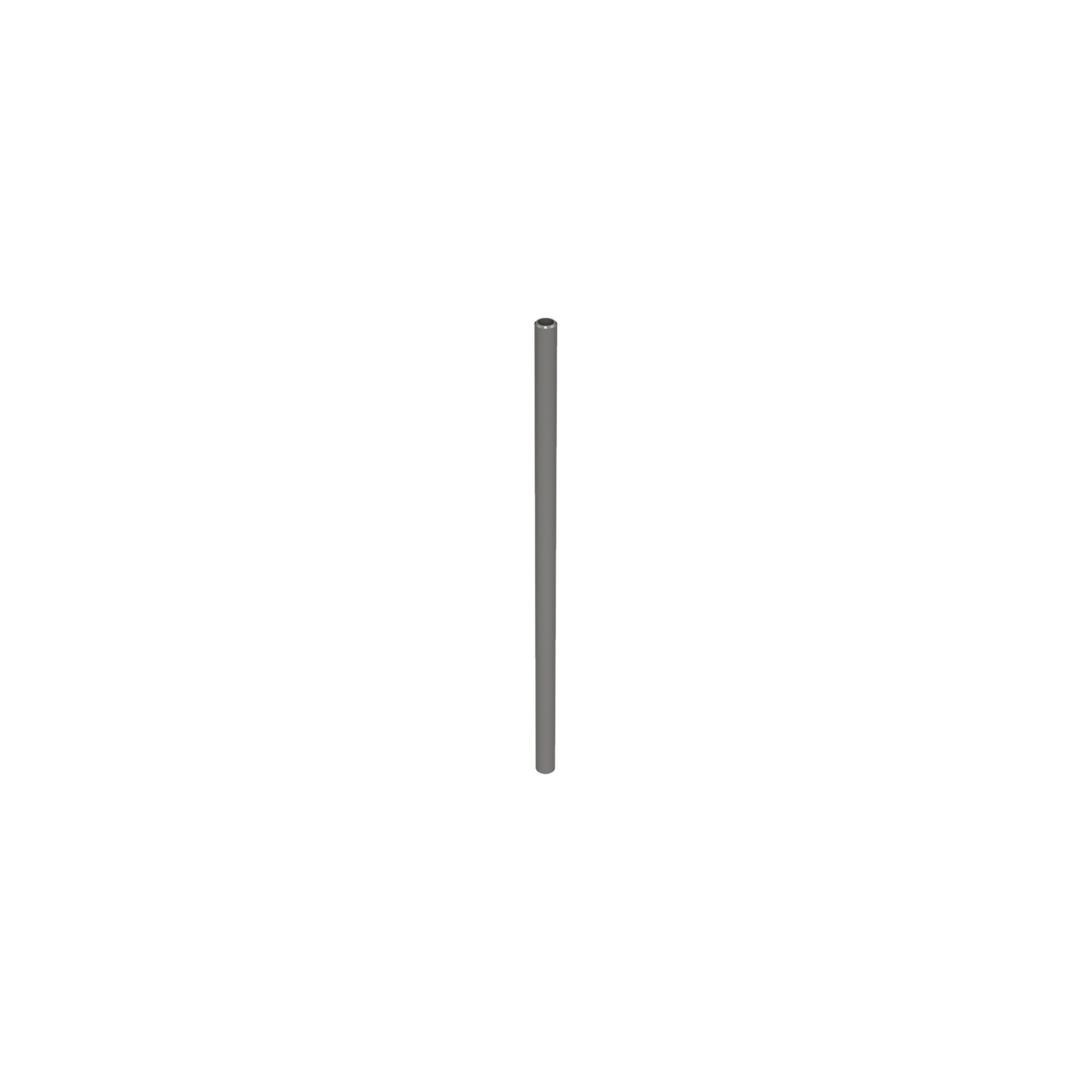

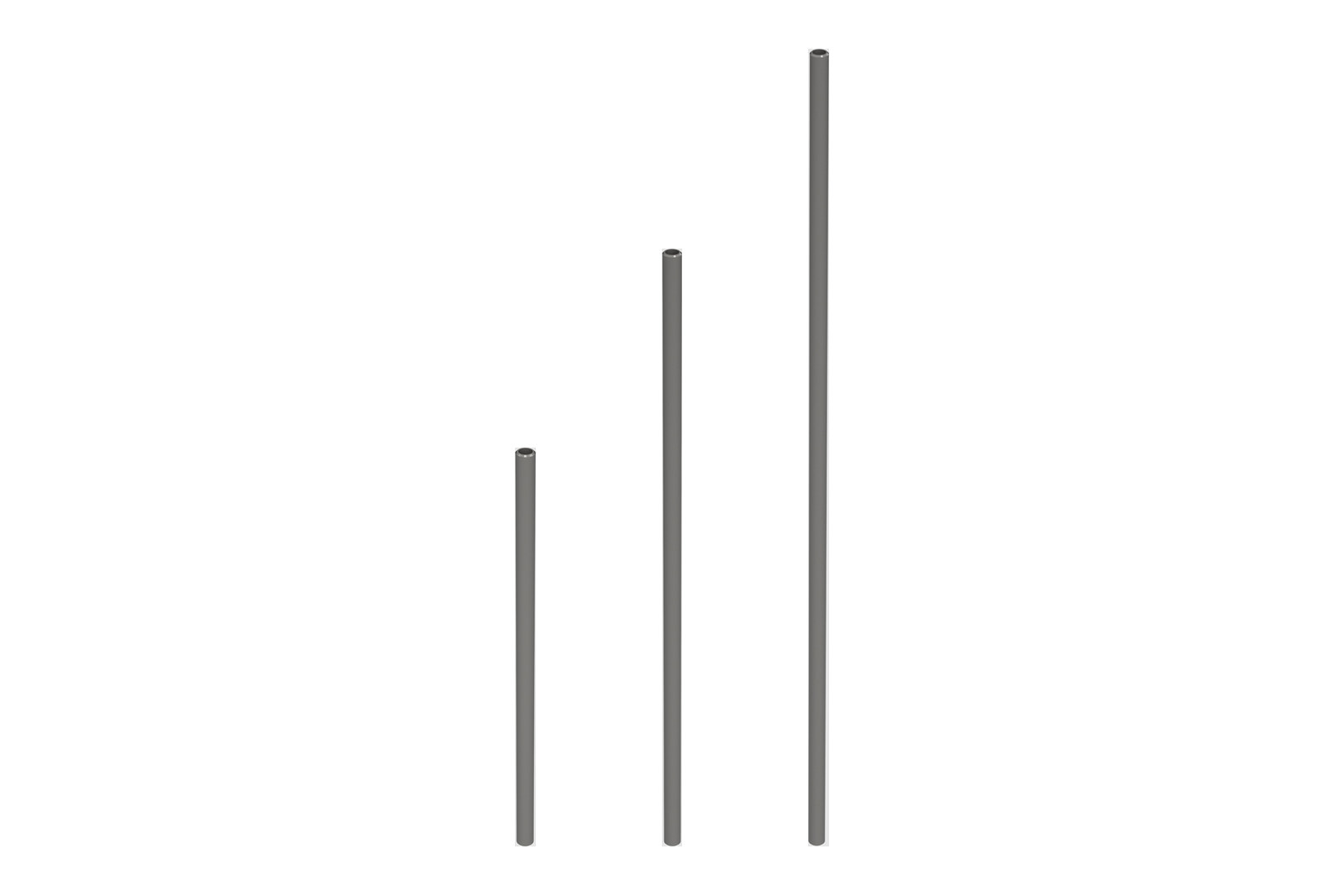

Tubes come in 100, 150 and 200 cm and set how far the rig reaches. They are the only part that changes between a tight offset in a corridor and a two-metre swing across a set, and swapping a pair is a two-minute job on set rather than a trip to the workshop.
Five parts, no tools

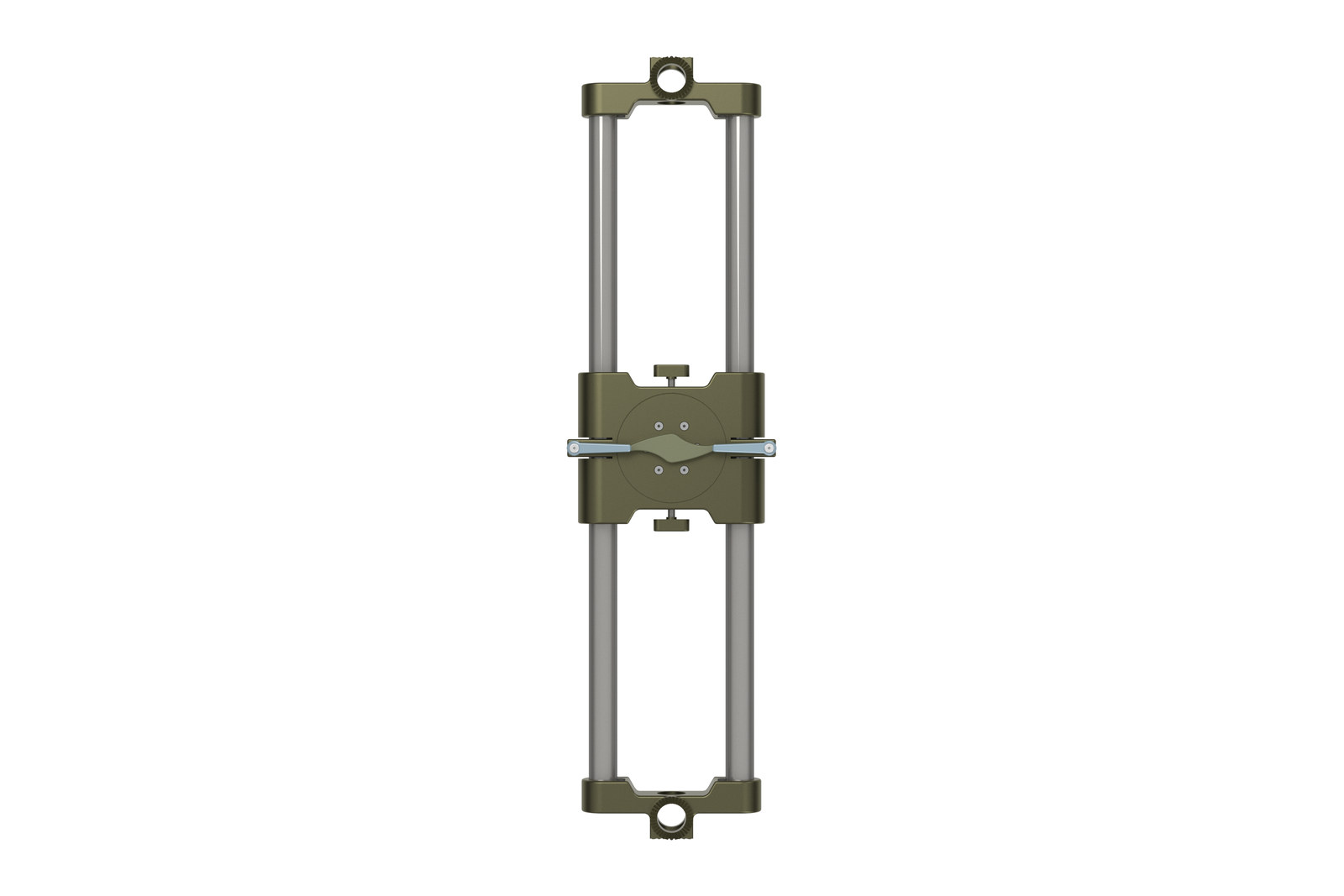

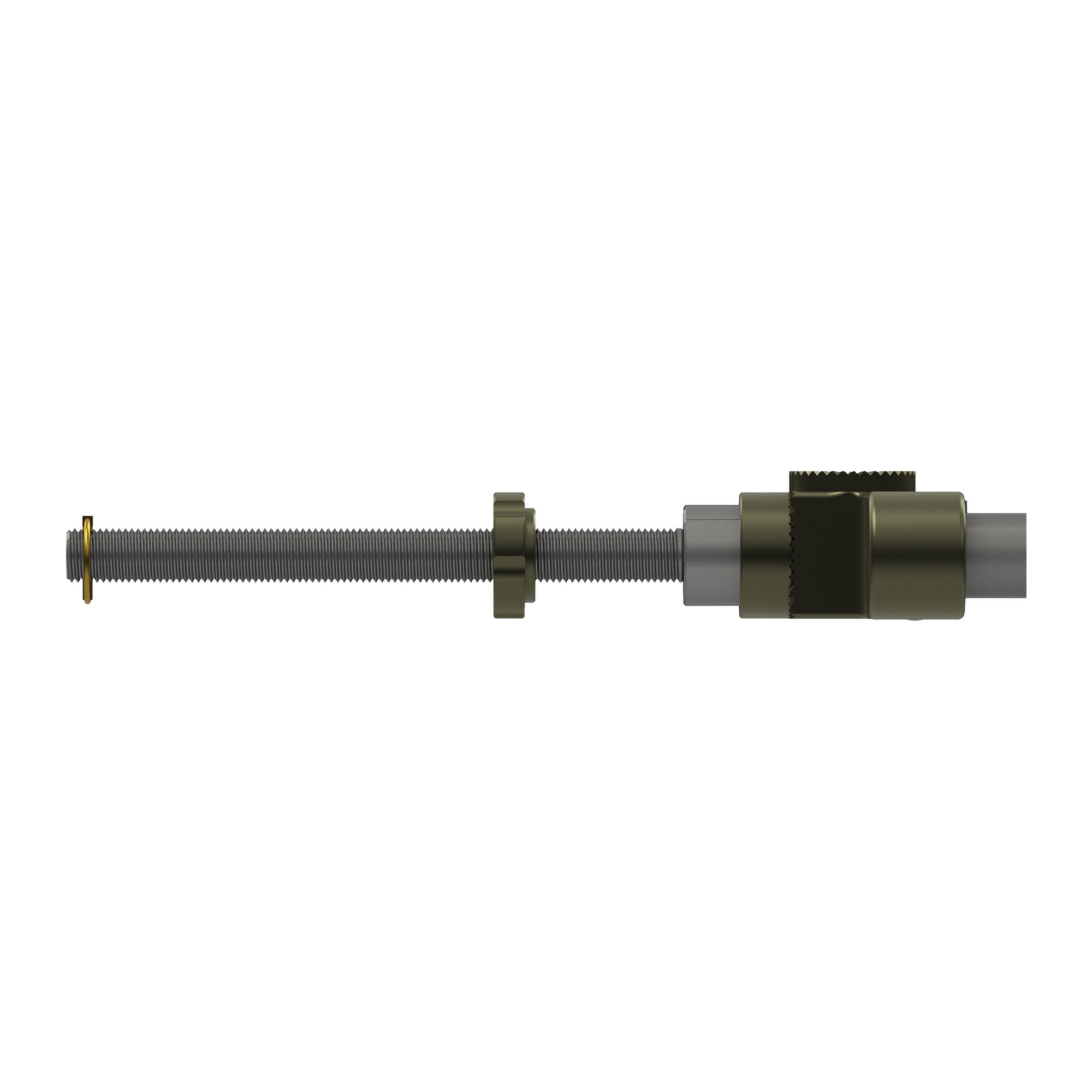

A complete rig is one Centre Part, two tubes and two End Mounts. The Centre Part holds the pan axis and both brakes; one End Mount carries the head, the other takes a counterweight rod to balance it. The tubes and mounts clamp — nothing in the rig itself needs a tool.
The head you already own

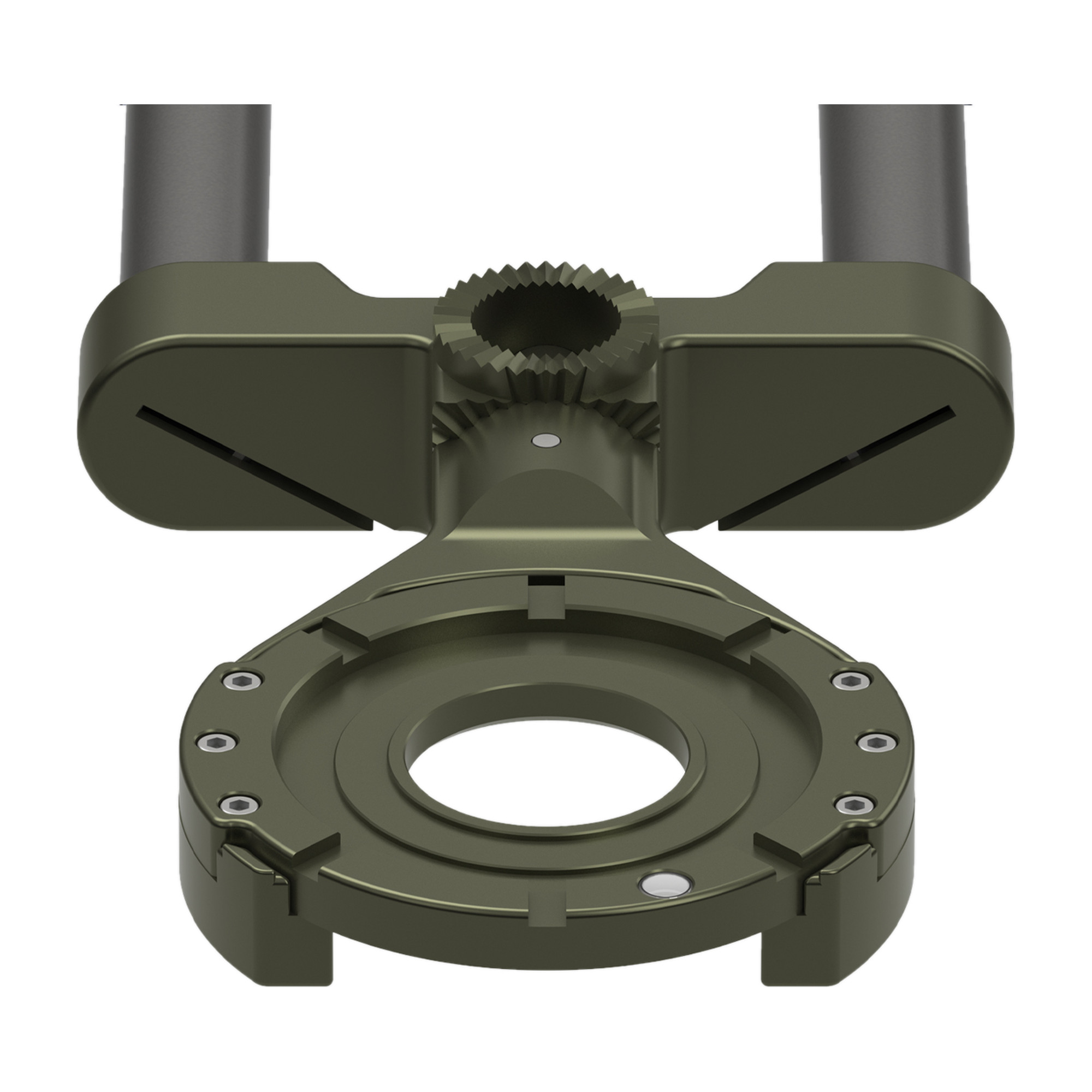

The End Mounts take the full range of GFM nose mounts, so the rig ends in whatever fitting the head on the truck expects. All five bolt to the same face — switching the interface is a spare part, not a second rig.

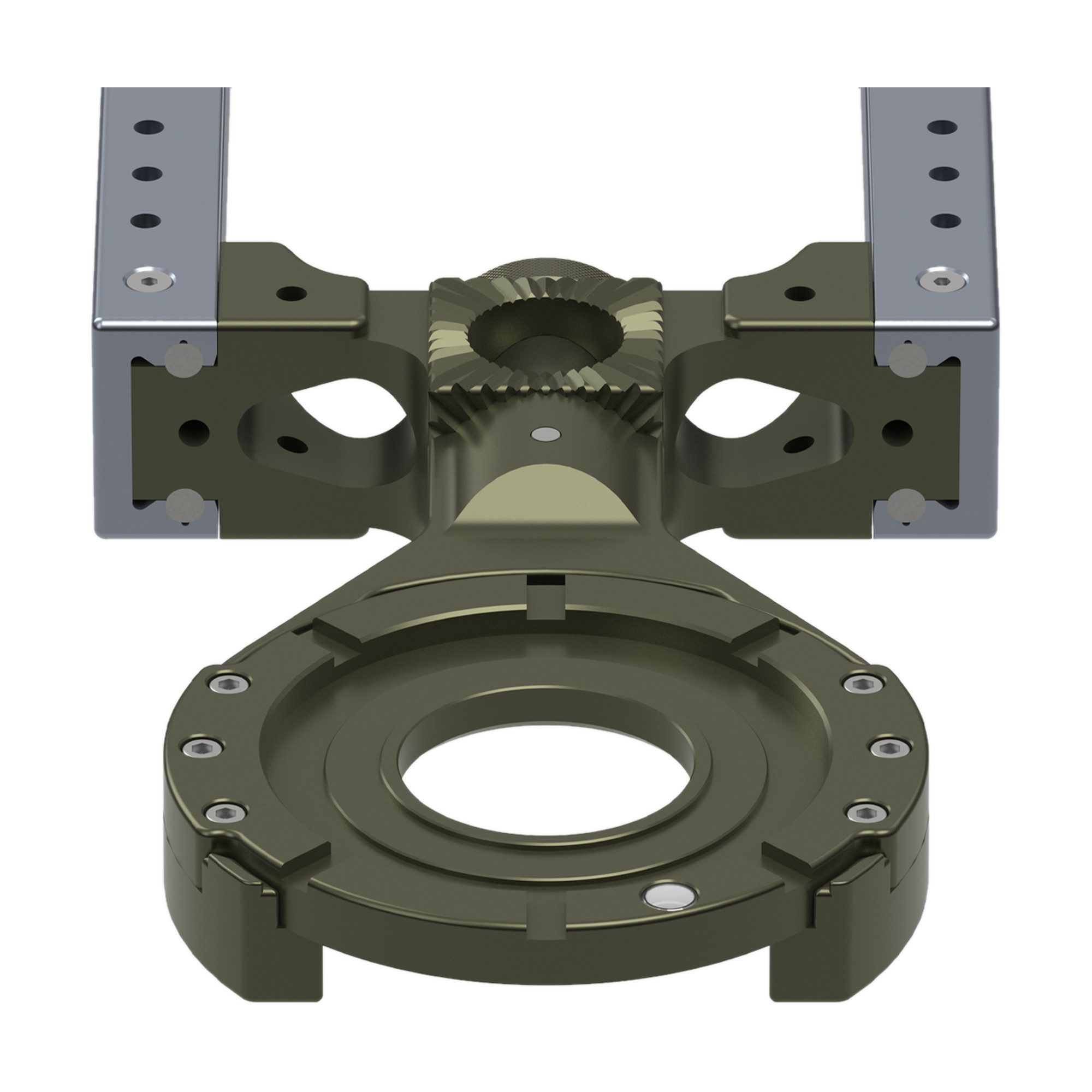

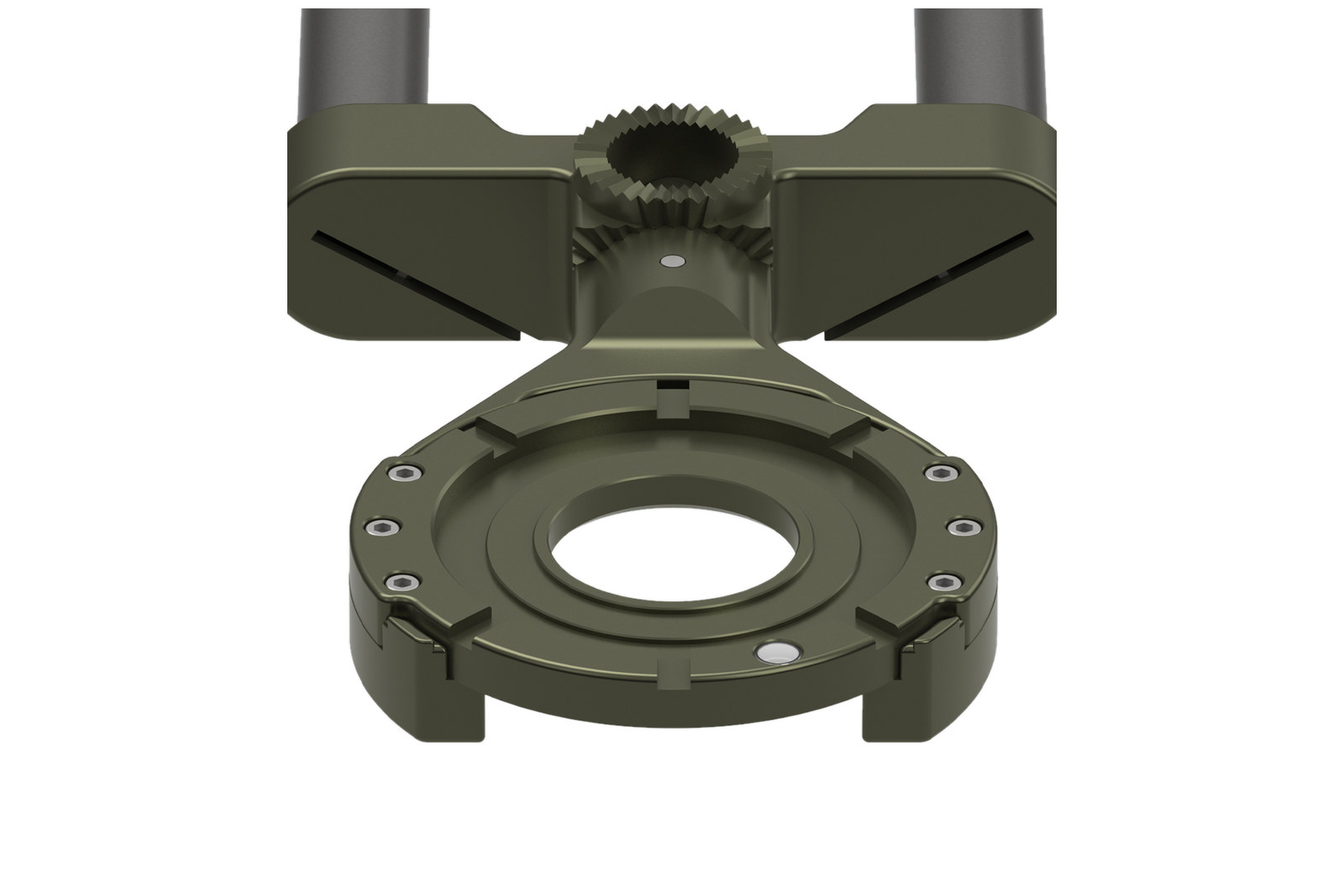

- Mitchell — for remote and fluid heads that land on a Mitchell

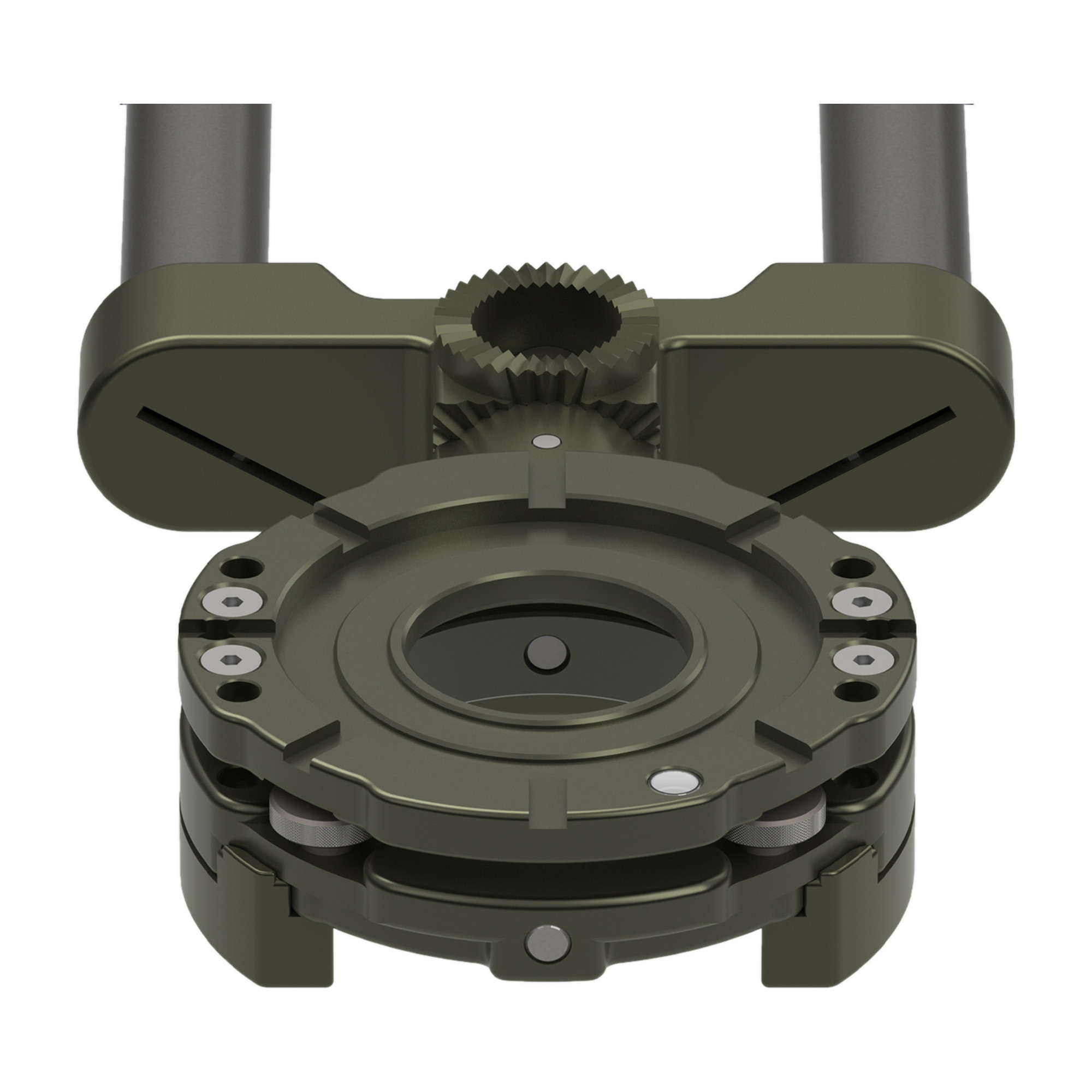

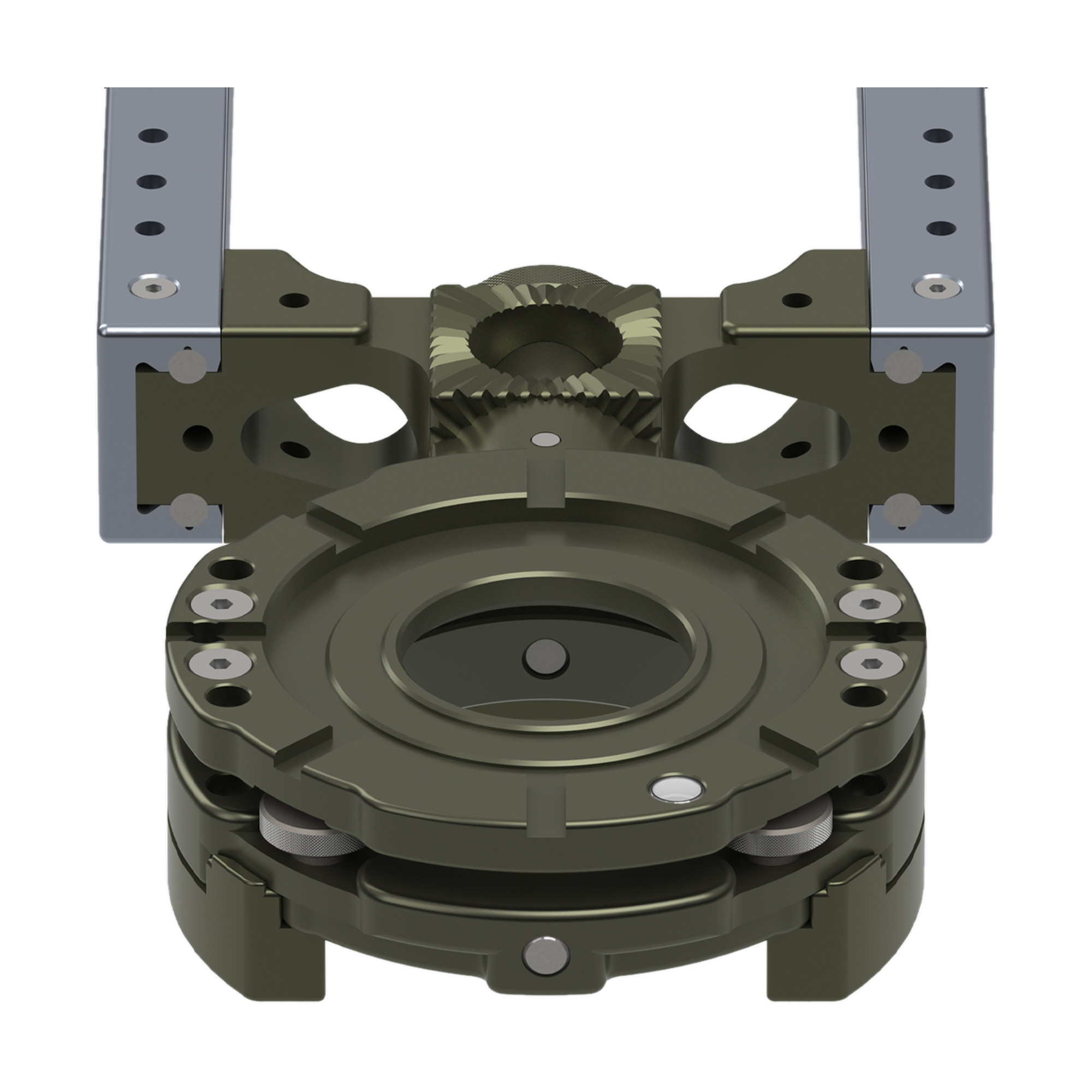

- Mitchell 4-Way — same fitting, with levelling at the camera end
- 100 mm bowl — bowl machined into the mount, no insert
- 150 mm bowl — for the larger fluid heads
- Euro clamp — straight onto the GFM accessory range
