Max Payloads

Maximum permissible loads per mounting orientation

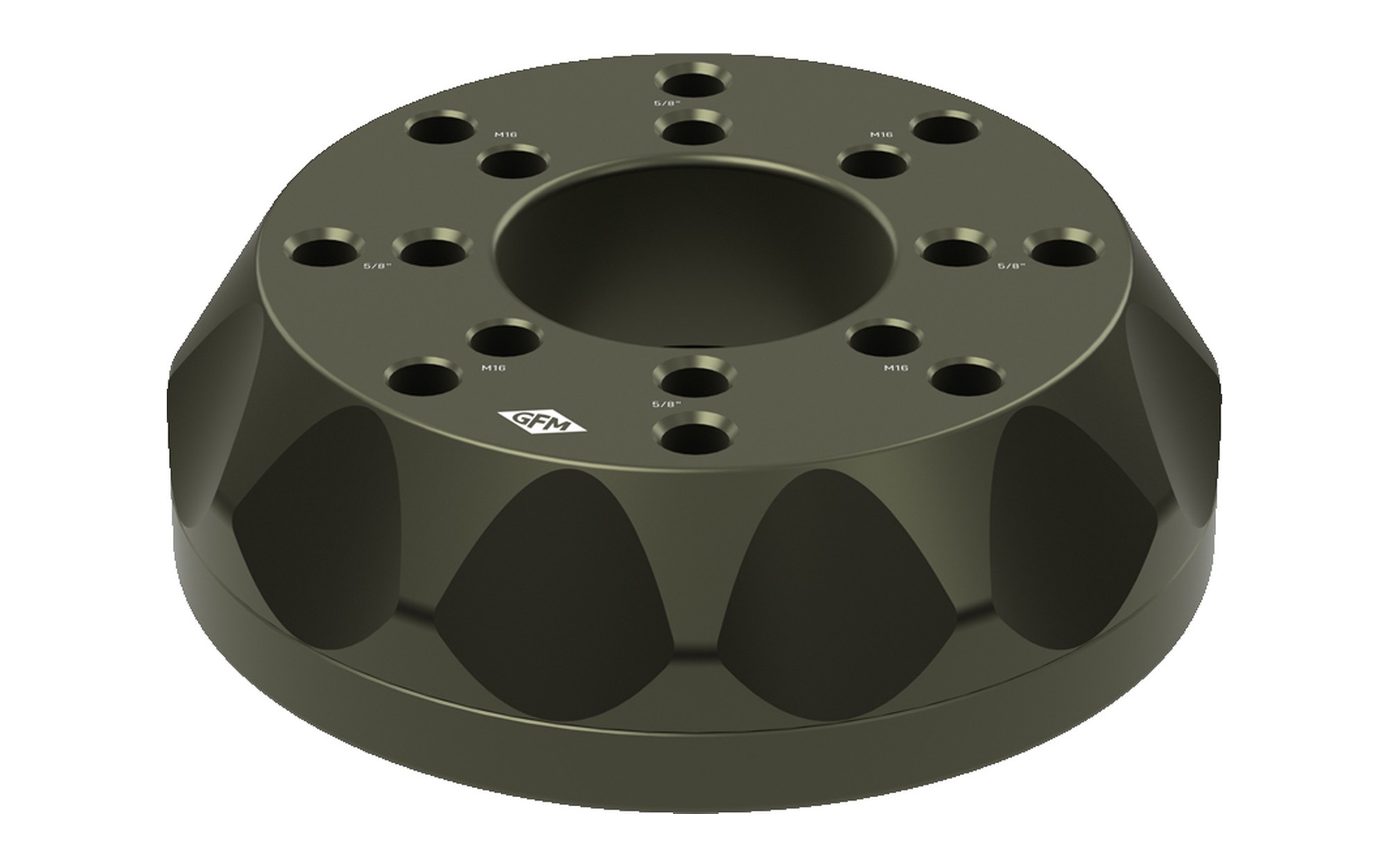

The Rotary Adapter (AL-1615) is the rotation unit for Modulus-X® rigs — a precision bearing rated for 10 kN centric load, with an open centre for routing components and cable straight through the axis of rotation. The four governing load cases below define the maximum permissible load for each mounting orientation. Values apply to each orientation individually and must not be superimposed.

Load Case 01

Maximum central load — overslung

F_D8000 N(800 kg)

Load Case 02

Maximum central load — underslung

F_Z5000 N(500 kg)

Load Case 03

Maximum transverse force

F_Q4000 N(400 kg)

Load Case 04

Maximum transverse force at maximum moment

F_QM2000 N(200 kg)

M1500 Nm

GFM-TD-001 · Rev 2026-07 · Technical changes reserved.
