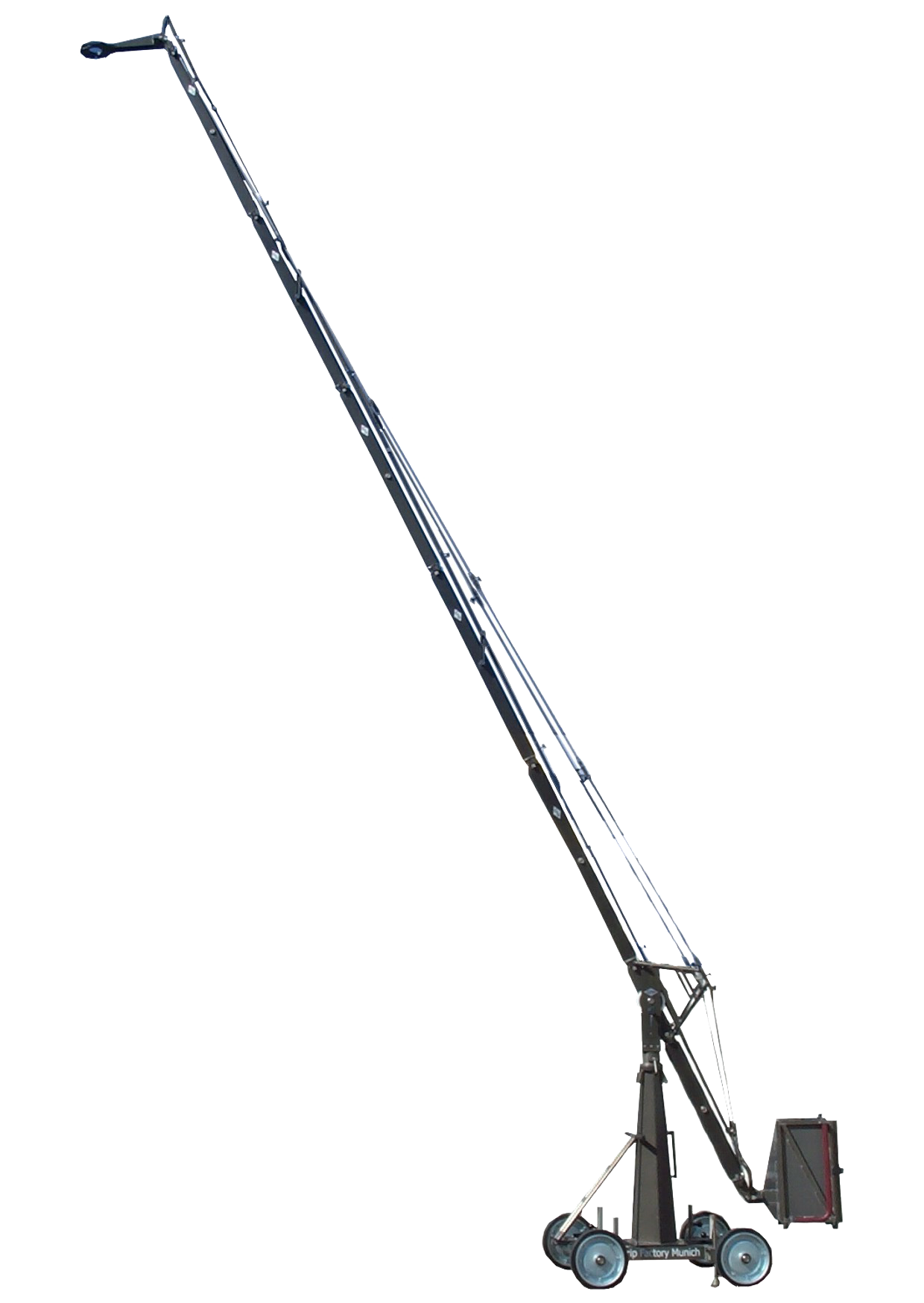

GF-9
Lightweight, modular reach for remote heads.

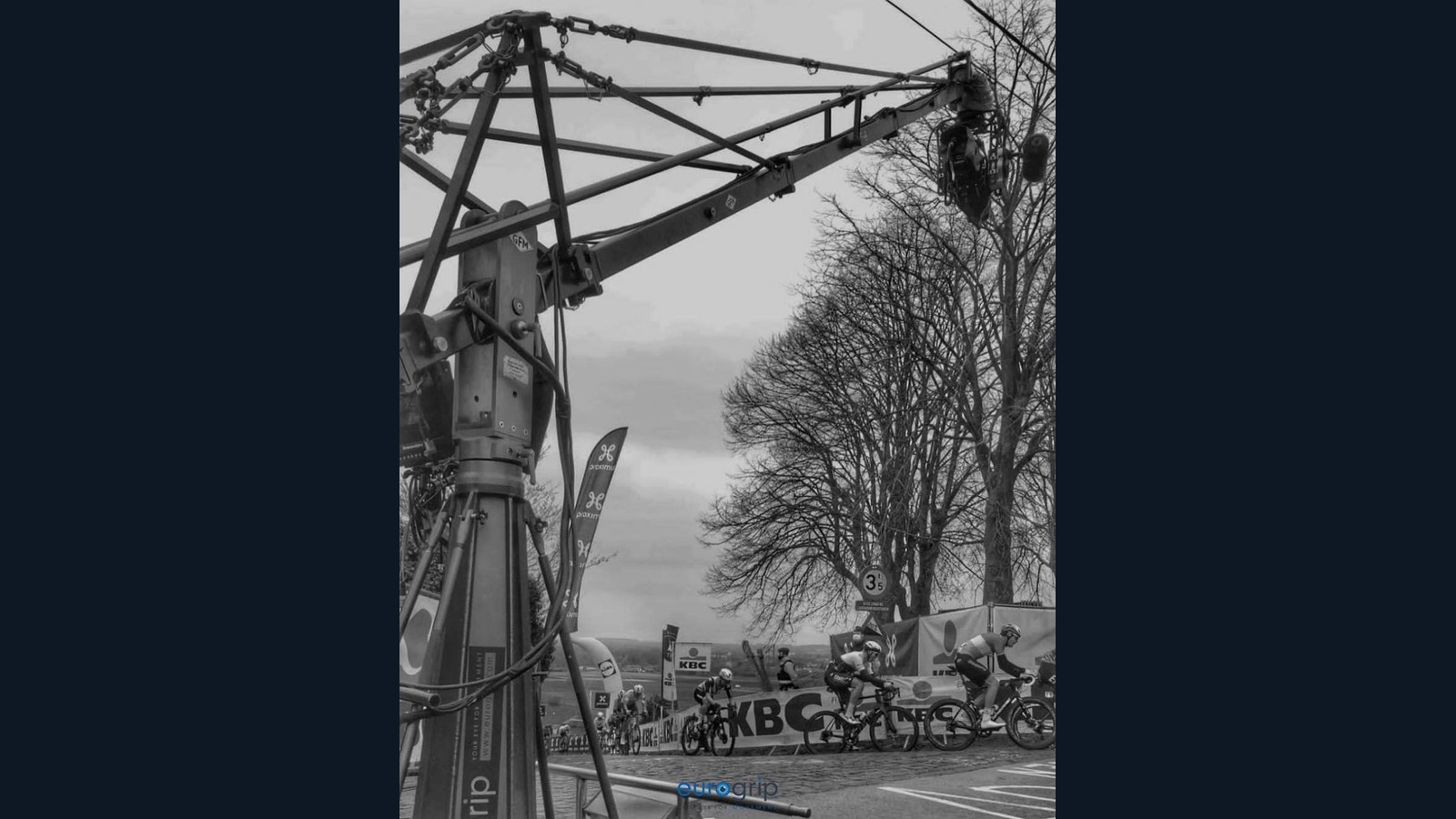

The GF-9 is a lightweight, modular crane built for remote-head operation. It builds as small as 1 m (3') and extends to 10.1 m (33'), carrying a 25 kg (55 lbs) remote head and camera at full height — and at least 30 kg (66 lbs) in every smaller build, up to 45 kg (99 lbs). The light construction does not cost it stiffness at the nose. It goes onto most common dollies through a Euro adapter or Mitchell mount, or onto the dedicated GF-Tripod, and every part of it packs and rigs without a second crew.
Inquire now →
GF-9 · Datasheet
| Max height by payload | ||
|---|---|---|
| On base dolly | On GF-Tripod | |
| w/ 25 kg (55 lbs) | 10.1 m33' | 9 m29'6" |
| w/ 30 kg (66 lbs) | 9.2 m30'2" | 8.2 m26'11" |
| w/ 45 kg (99 lbs) | 6 m19'9" | 5.4 m17'9" |
| Capacity & build | ||
|---|---|---|
| Operation | Remote head | |
| Finish | Hart-Coat® hardened | |
| Pivot height | ||
| On base dolly | 1.9 m | 6'2" |
| On GF-Tripod | 1.7 m | 5'8" |
From one metre to ten
The GF-9 builds in ten discrete versions — every stage between the 1 m minimum and the full arm is a defined, documented configuration. The angle adjuster system does the trick: the same sections work at every length, with no special front or back extensions along the way.
- Ten arm versions from 1 m to 10.1 m
- Lightweight aluminium parts, extremely stable arm
- From 92 kg (202 lbs) transport weight — without counterweights and dolly
- Surface-hardened Hart-Coat® finish
- TÜV certified and safety type tested
