Jib ArmsGF-7800S
GF-Jib Set incl. Accessories and Transport Trolley
€10,765.00excl. VAT

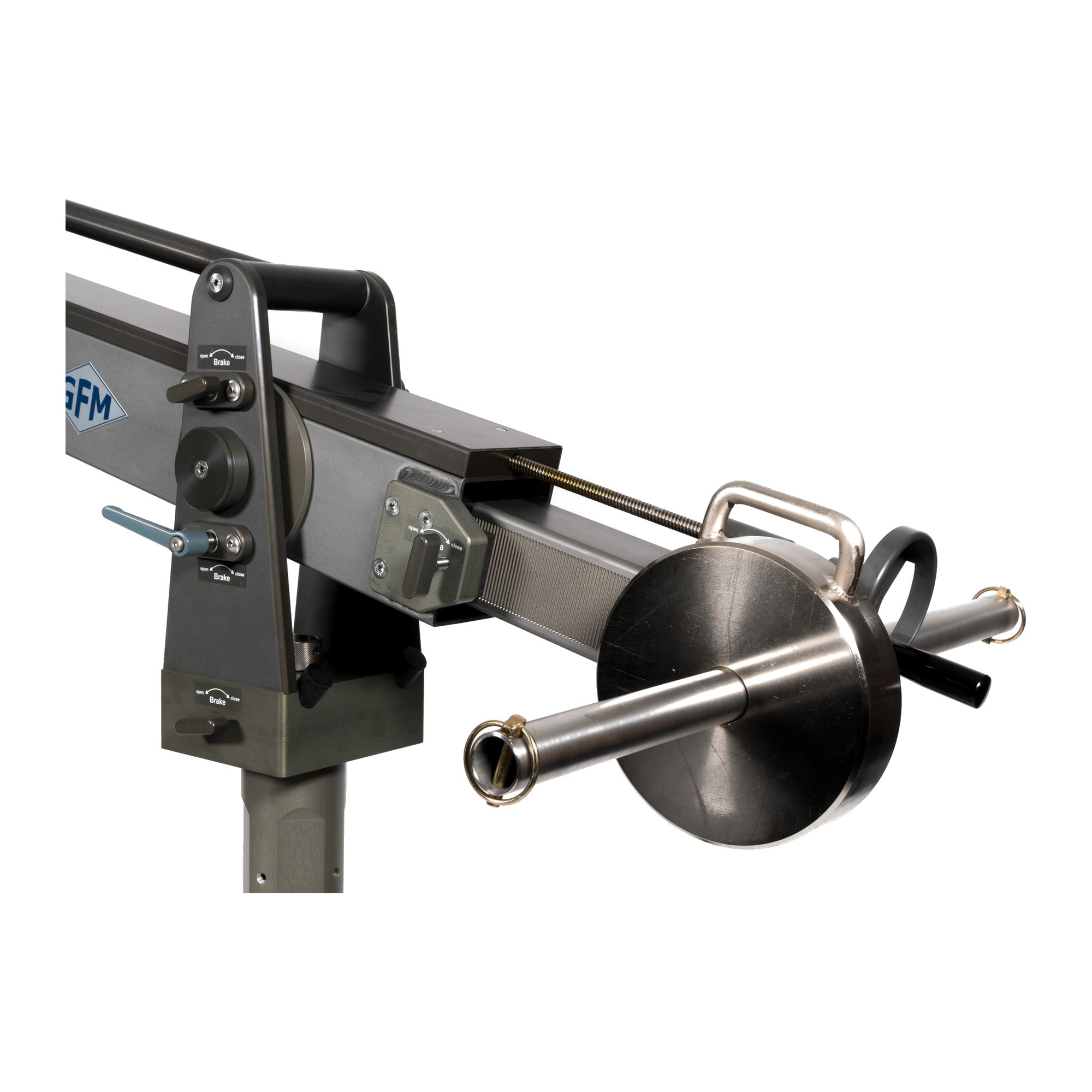

The GF-Jib is the heavy arm of the family: 60 kg of payload retracted, 40 kg at its full 188 cm of reach, and 227 cm of lift range. Length is adjusted by hand for a quick setup, and the telescopic counterweight arm follows with a few turns of the crank — so the arm stays balanced at any angle instead of being trimmed with weight after every move.

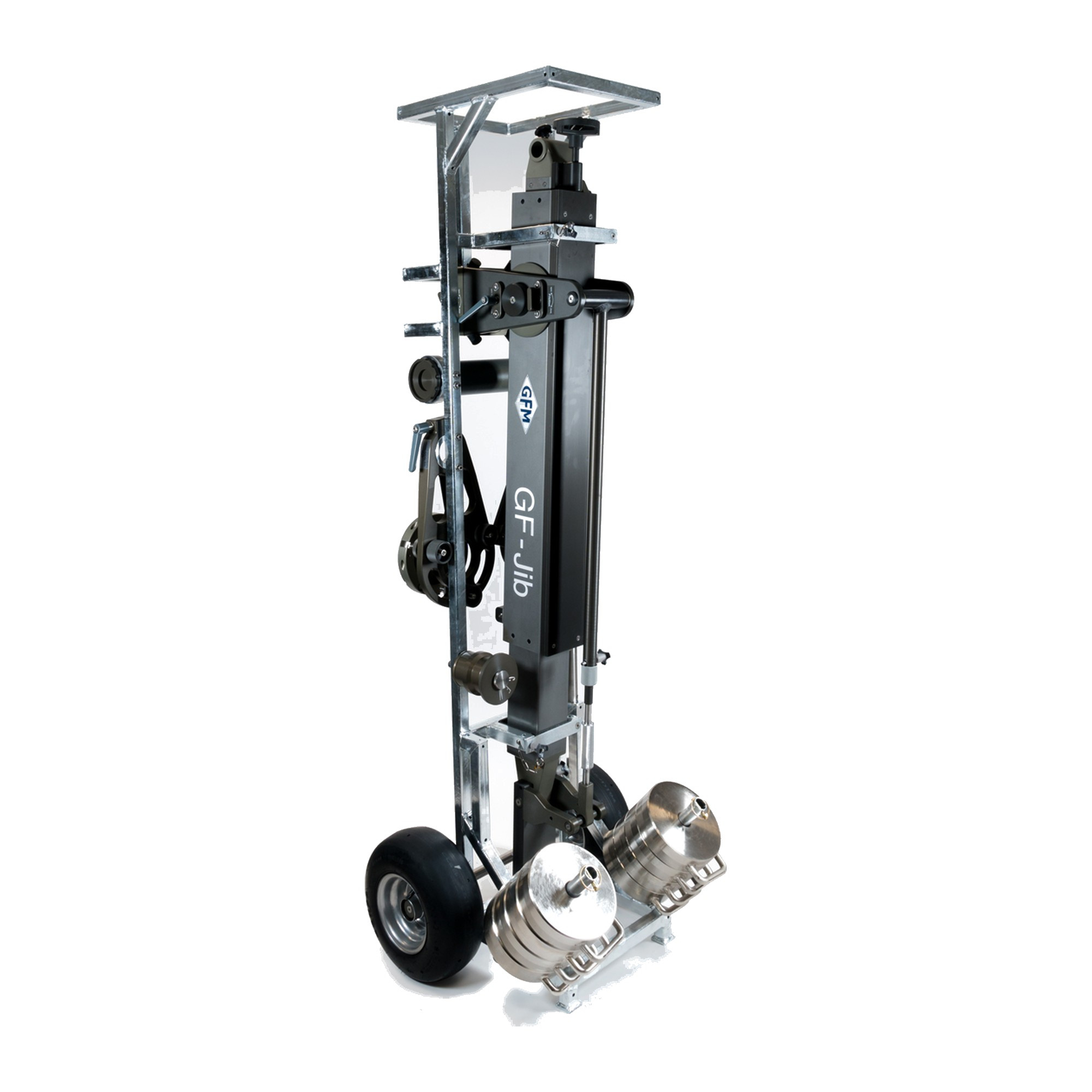

The set arrives on its own wheels: GF-Jib arm, double-ended Euro adapter, two safety plates for underslung mounting, a 35 cm extension tube, ten 12 kg counterweights and the transport trolley. Machined and assembled in Germany by Grip Factory Munich.
Including:
- GF-Jib (GF-7800)
- Double ended Euro Adapter (AL-2405)
- 2 × Safety Plate for Underslung (M12) (AL-2111)
- 80 mm Extension Tube with 2 Safety Screws - 35 cm (14") (AL-2366/2)
- 10 × Counterweight 12 kg (26 lbs) round (AL-2403)
- Transport trolley for GF-Jib (GF-7810)
Set weight207.0 kg
Made in Germany · Machined & assembled in Munich, Bavaria · Ships worldwide
GF-Jib · Datasheet
Reach
188 cm6'1"
Max payload
60 kg132 lbs
Lift range
227 cm7'5"
Jib weight
42 kg92 lbs
| Retracted / extended | ||
|---|---|---|
| Retracted | Extended | |
| Front | 133 cm4'4" | 188 cm6'1" |
| Rear | 48 cm1'7" | 103 cm3'5" |
| Lift range | 151 cm4'11" | 227 cm7'5" |
| Max payload | 60 kg132 lbs | 40 kg88 lbs |
| Geometry | ||
|---|---|---|
| Tilt angle | 43° | |
| Capacity | ||
| Max counterweight | 120 kg / 10 × 12 kg | 265 lbs |
| Configuration | ||
| Camera head | Mitchell 3-Way with integrated Double Swivel | |
| Jib mount | Euro Adapter (Mitchell available) | |
