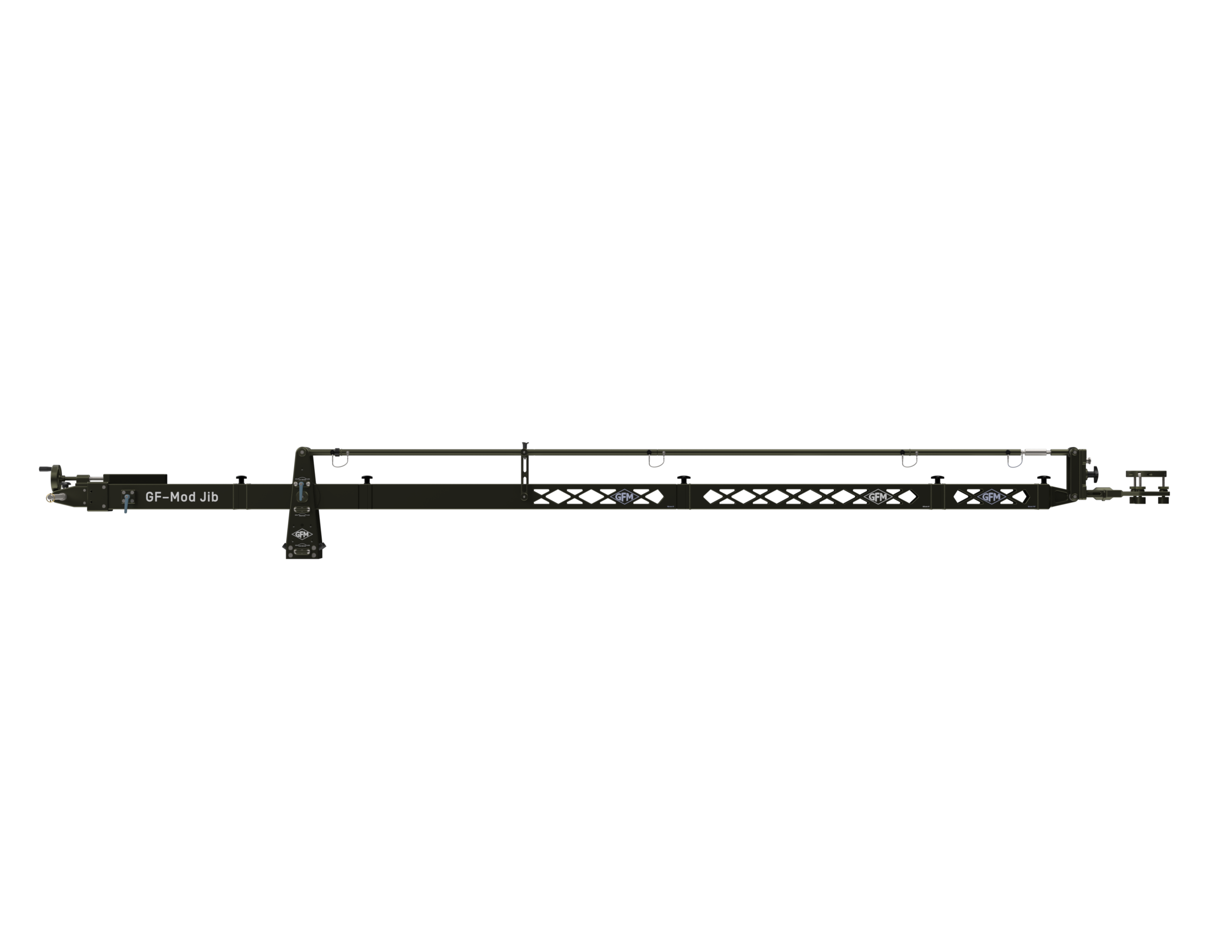

GF-Mod Jib
Modular. Stable. Slick.

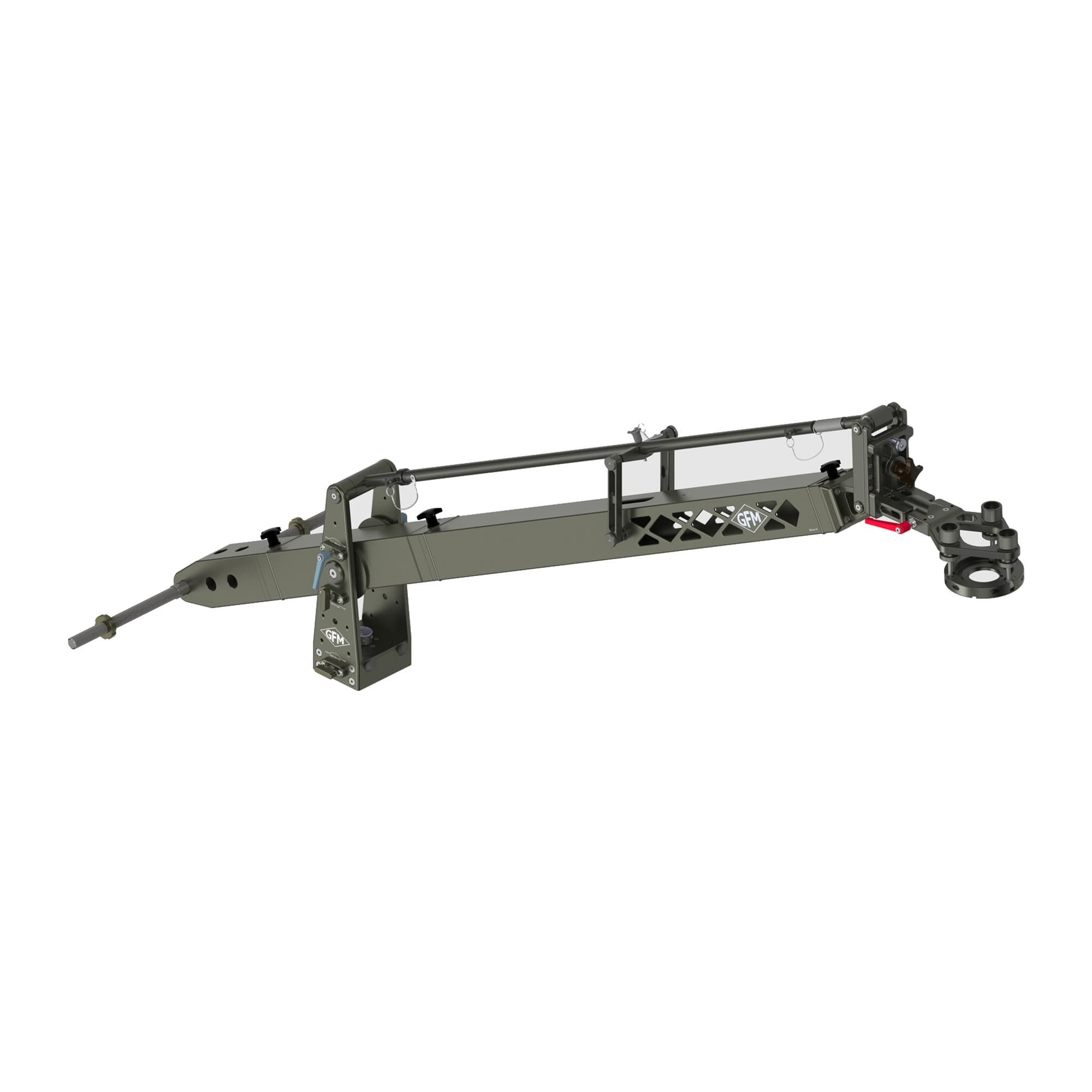

The GF-Mod Jib is the arm that builds to the shot: three extension modules and an 80 cm add-on connect in any order through a backlash-free dovetail system, from an 80 cm nose-only build to 480 cm of reach. Up in minutes, in open spaces and tight ones — and up to 60 kg of payload in the short builds.
GF-Mod Jib · Datasheet
| Geometry | ||
|---|---|---|
| Reach (minimum) | 80 cm | 2'7" |
| Reach (maximum) | 400 cm | 13'1" |
| Reach (with 80 cm add-on) | 480 cm | 15'9" |
| Lift range (minimum) | 52 cm | 1'8" |
| Lift range (maximum) | 610 cm | 20' |
| Tilt angle | 54° | |
| Capacity | ||
|---|---|---|
| Max payload (full length) | 35 kg | 77 lbs |
| Max payload (480 cm build) | 20 kg | 44 lbs |
| Max payload (short builds) | 60 kg | 132 lbs |
| Max counterweight | 160 kg / 8 × 20 kg | 350 lbs |
| Configuration | ||
| Camera head | Mitchell 3-Way with integrated Double Swivel | |
| Jib mount | Euro Adapter (Mitchell available) | |

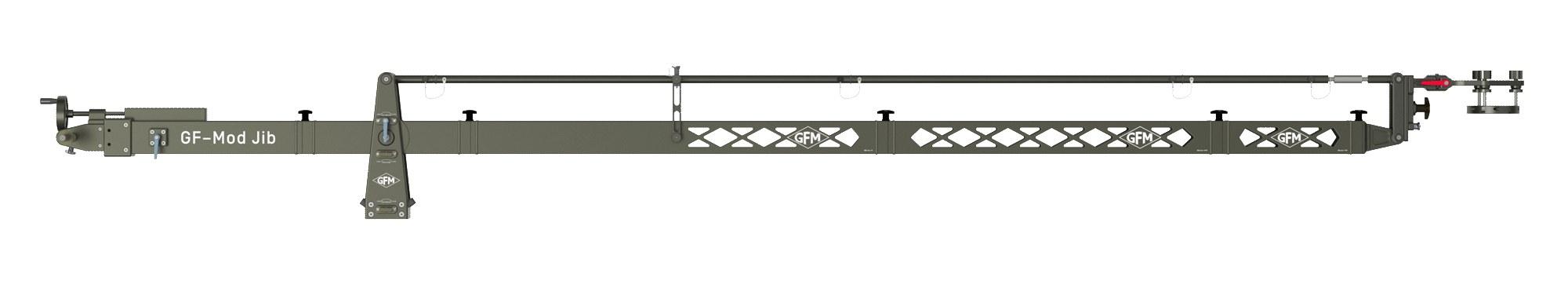

GF-Mod Jib · Builds

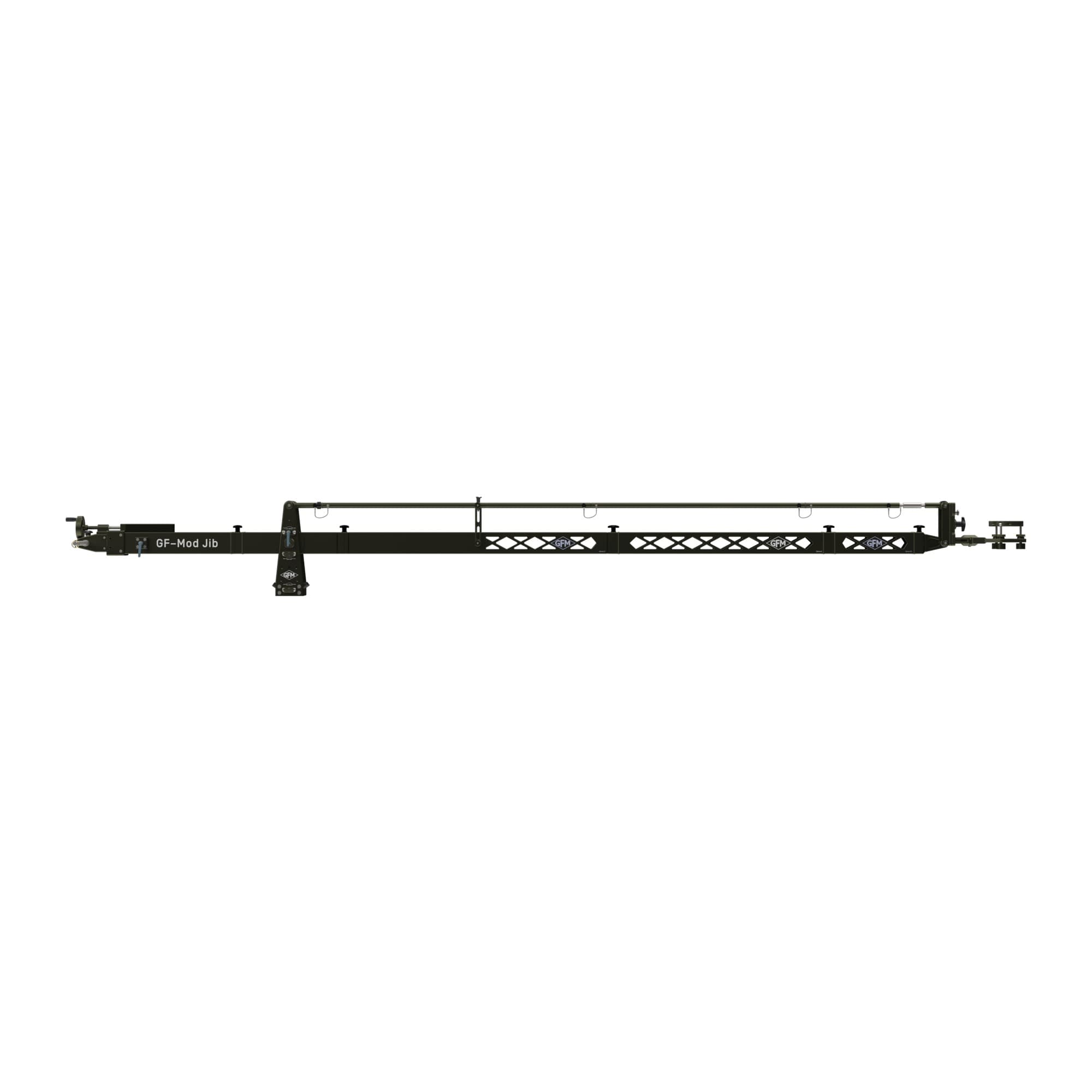

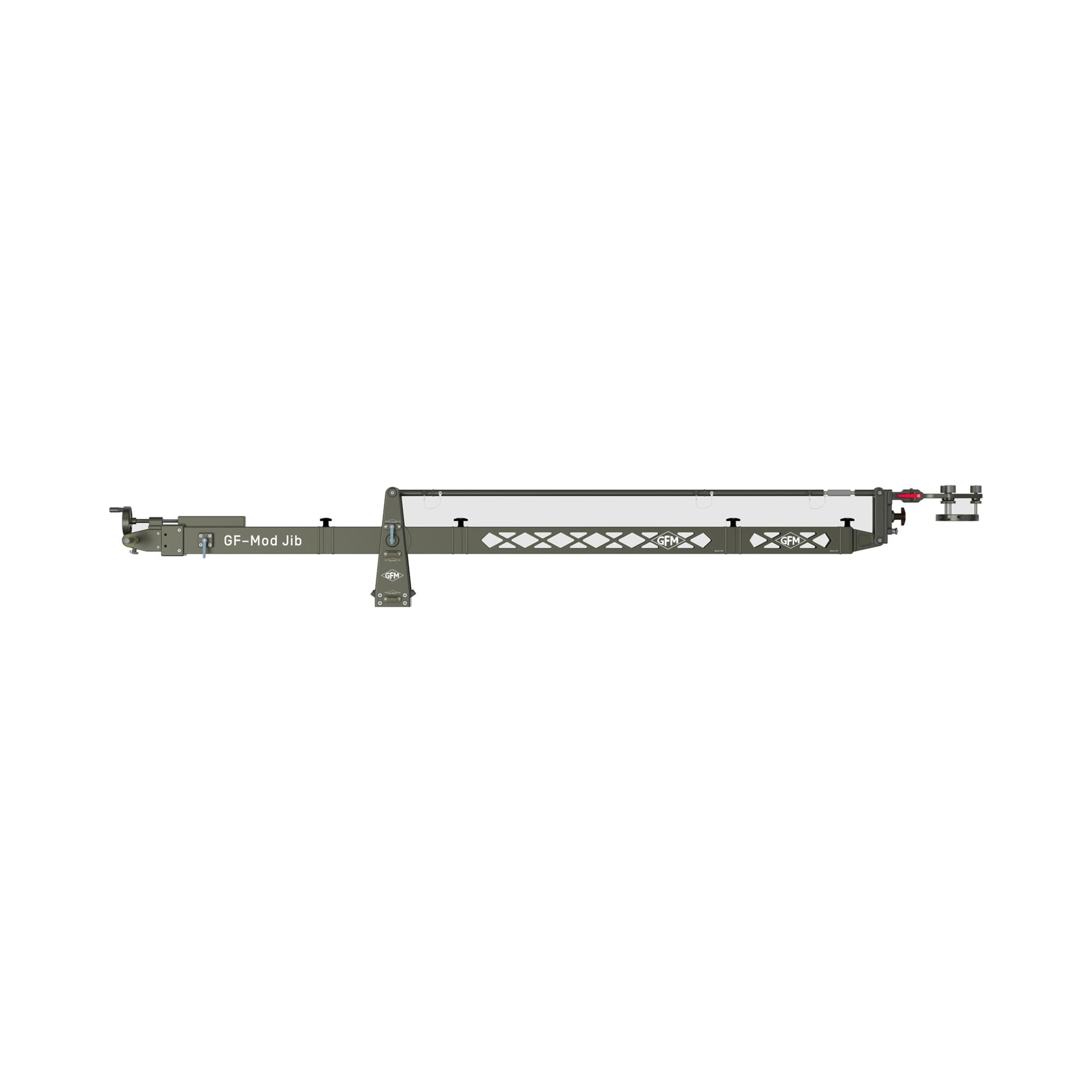

Every documented build from the version sheet, drawn to scale: pick the reach, read the modules.
Payload: 35 kg at the full 400 cm · 20 kg in the 480 cm add-on build · up to 60 kg in shorter setups.

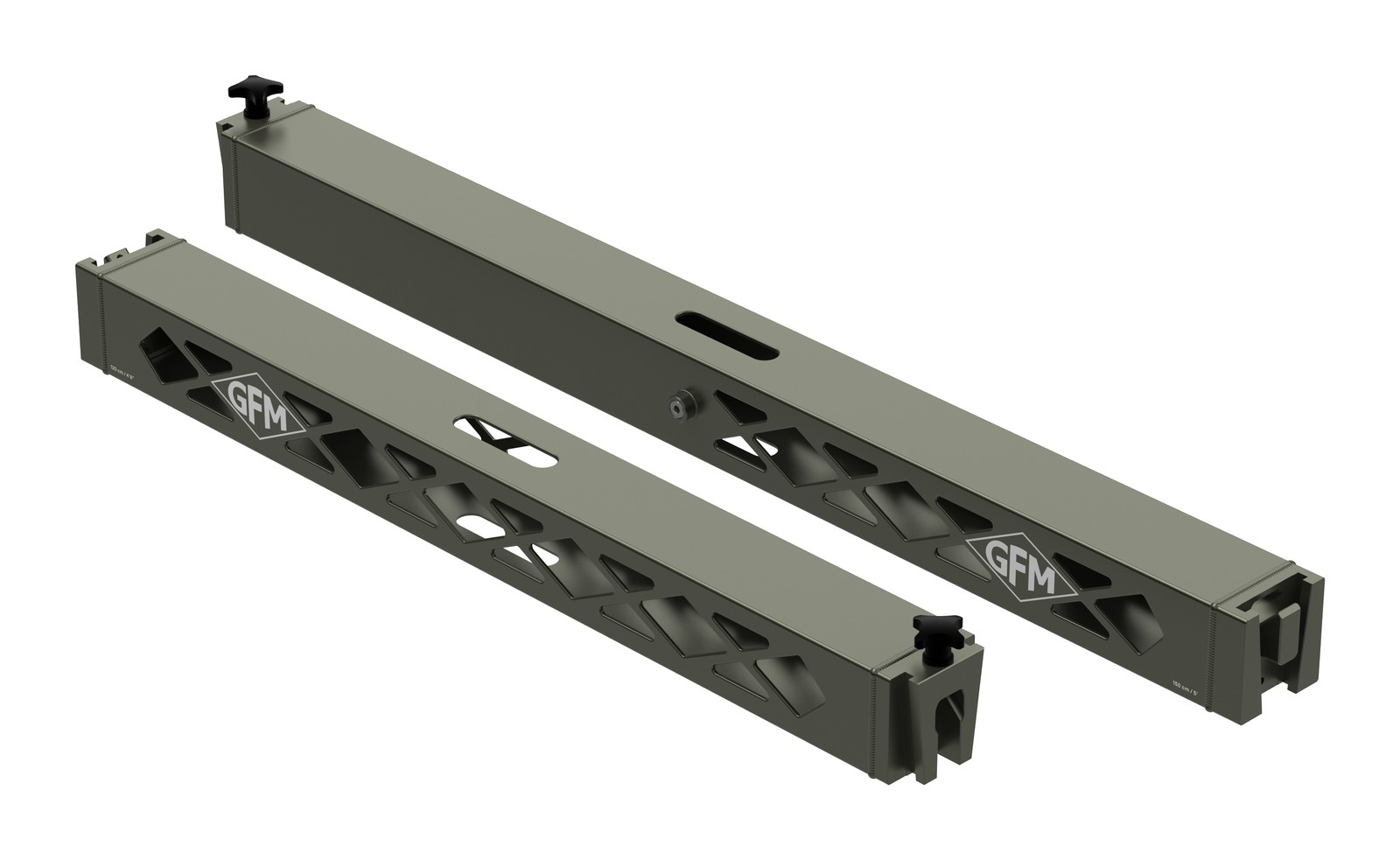

Connected by dovetail

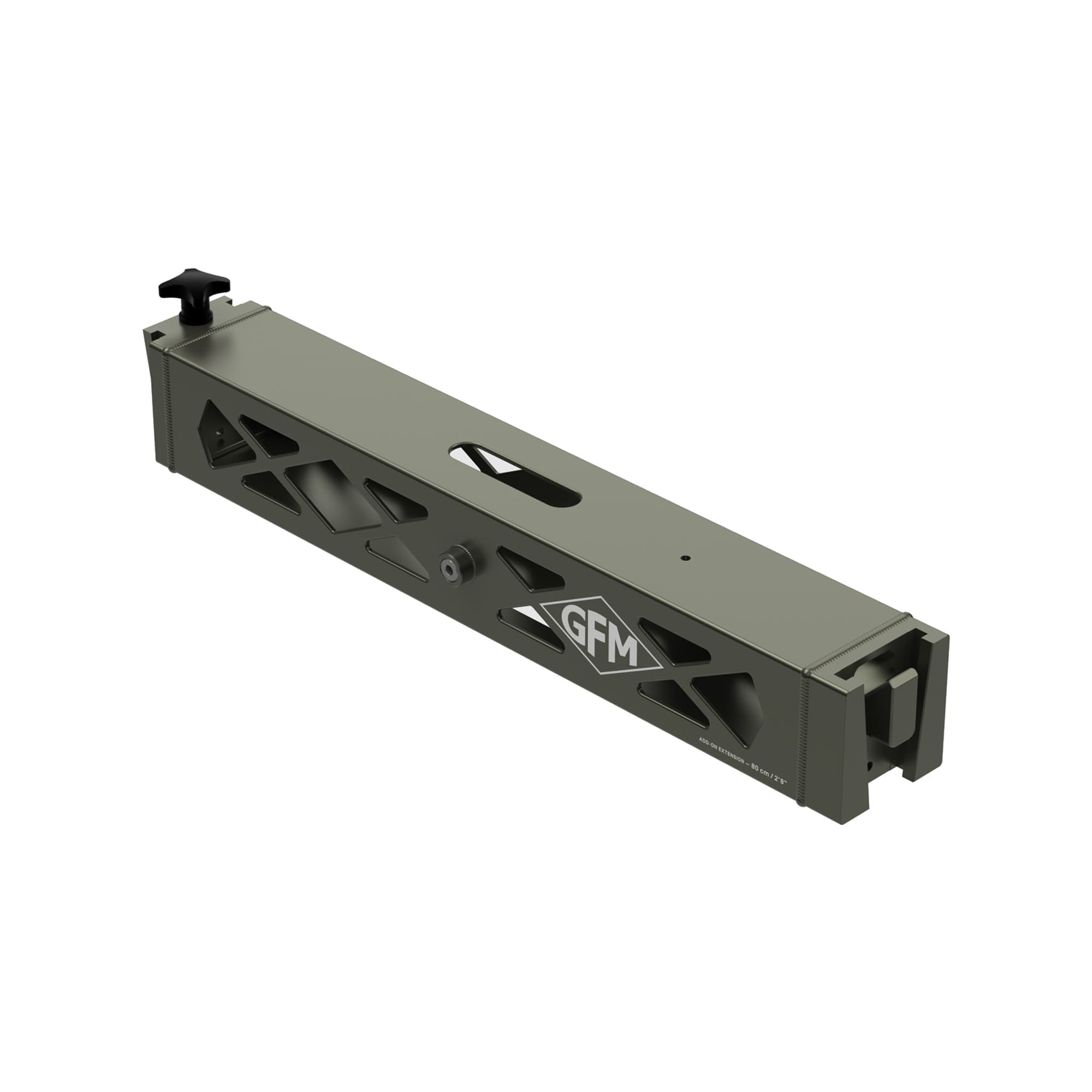

The 150, 120 and 50 cm modules join through a backlash-free dovetail, so the joints have no play and the assembled arm moves like one piece. Any order works, and the same connection carries the 80 cm add-on when the shot wants 480 cm.
Overslung or underslung

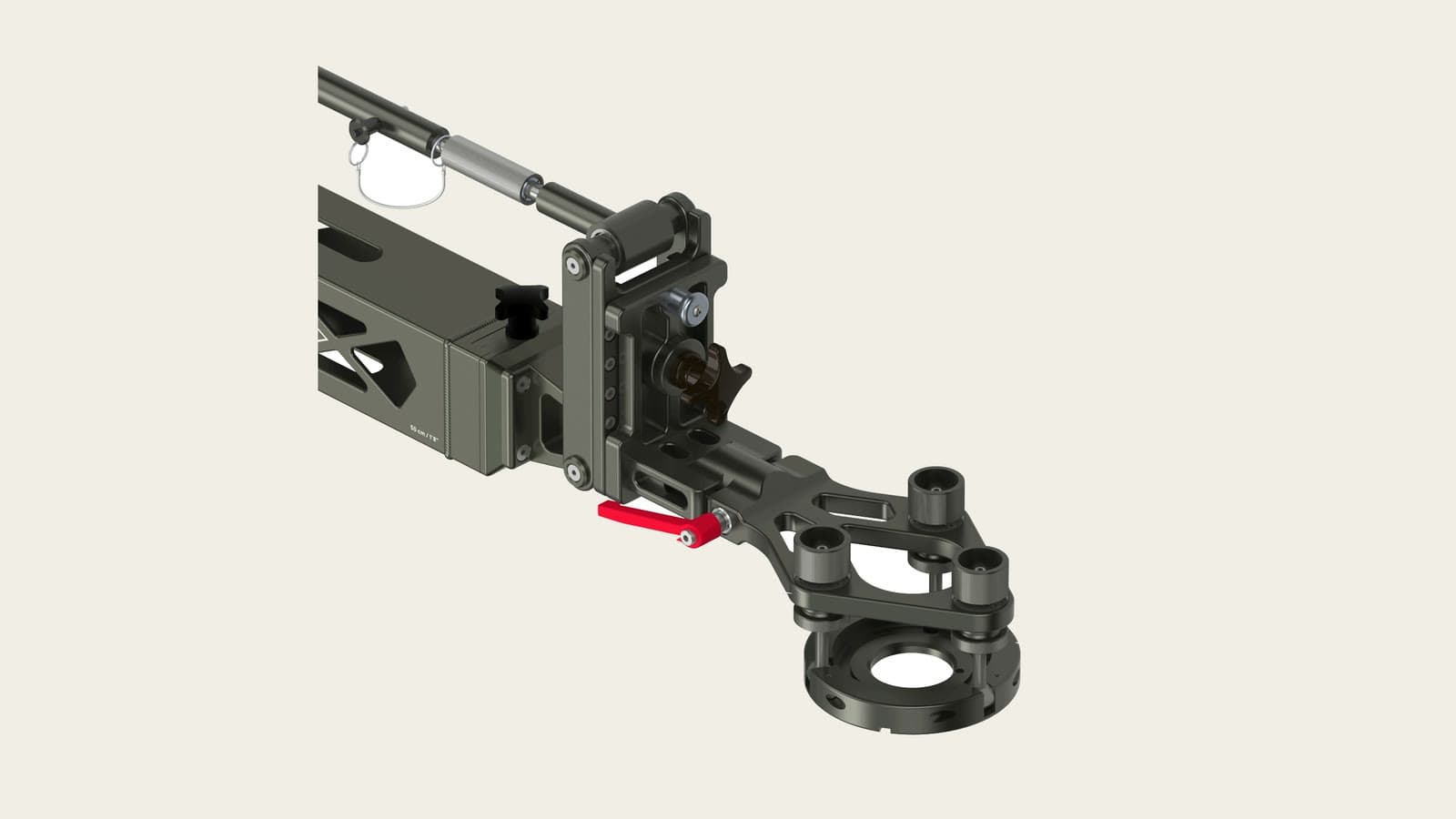

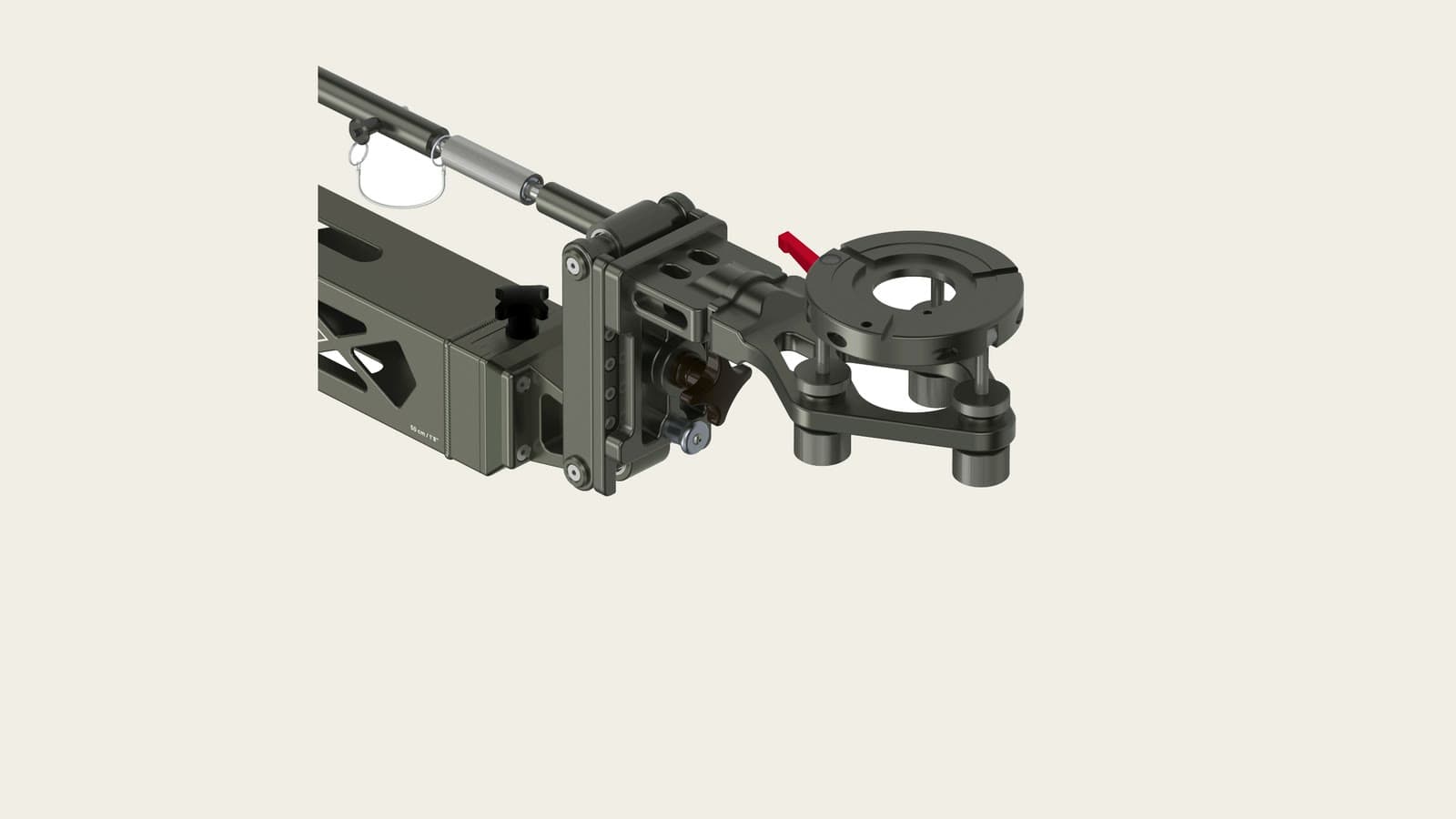

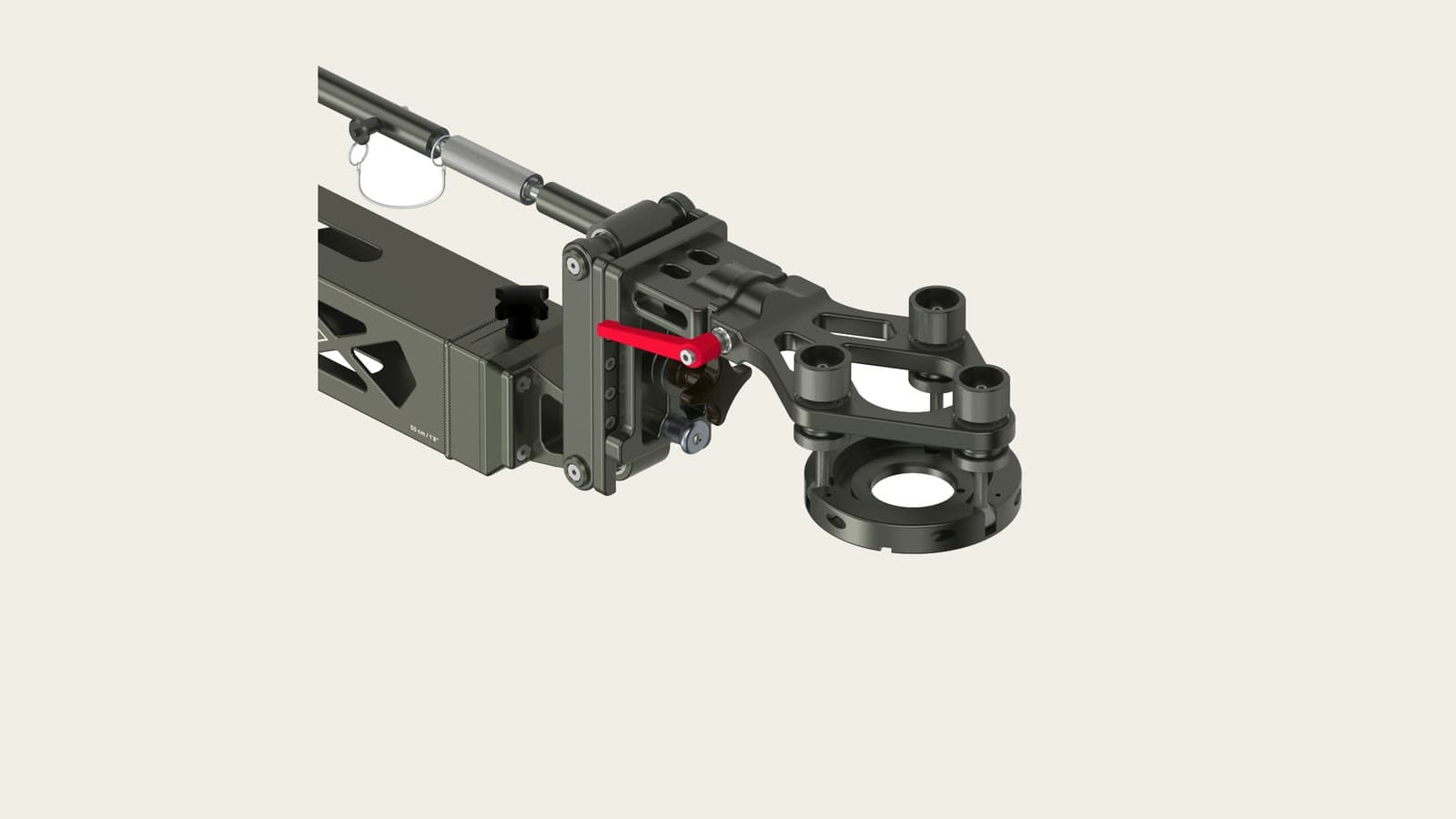

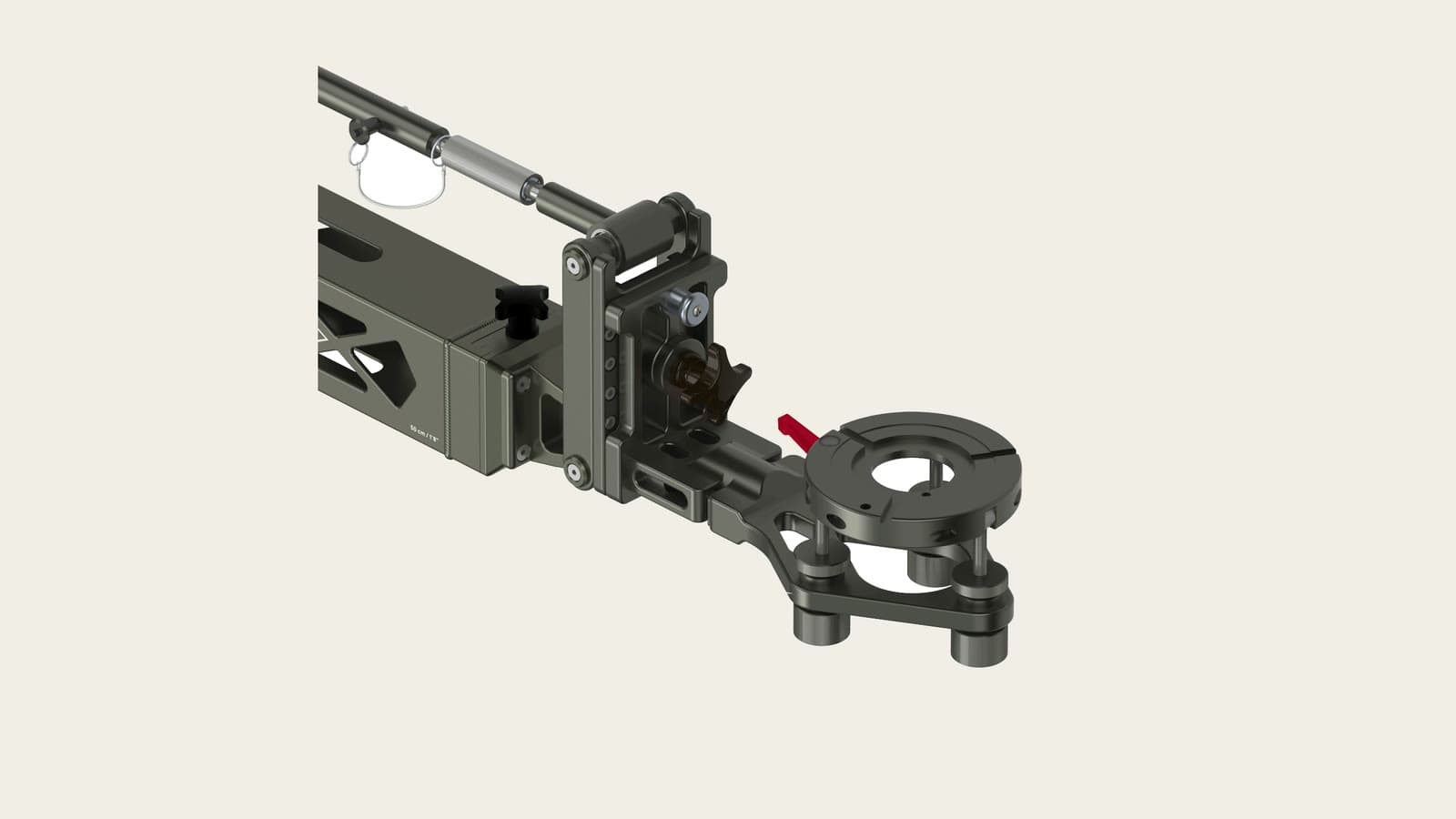

The nose carries a Mitchell 3-Way head with integrated double swivel: flip the arm to work overslung or underslung and the head follows, without a bracket to add or anything to rebuild.

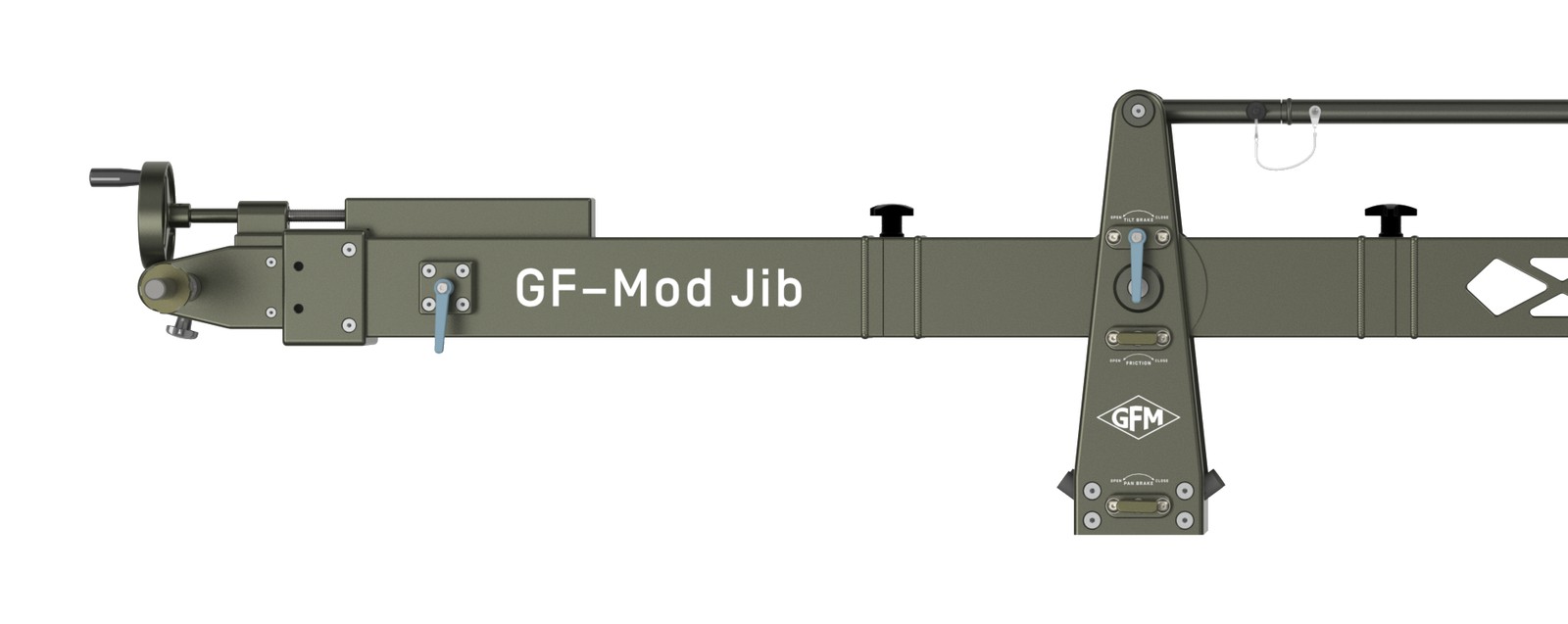

Balanced by crank
The telescopic counterweight arm adjusts with a few turns of a crank, so the arm stays balanced at any angle instead of being re-trimmed after every move. For short builds in tight corners, the short counterweight arm keeps the rear end compact.
