GF-Mod Jib Full Set (incl. Counterweights and Transport Case)
Thanks to its unique modular concept and different extensions, the GF-Mod Jib can be set up in a large variety of ways, fully utilising its potential, both in open and in tight spaces and perfectly fitting the circumstances on set — making it incredibly easy for grips to get it up and ready within minutes.
The three different modules (150 cm, 120 cm and 50 cm extensions) and the 80 cm add-on extension can be connected in any order through our backlash-free dovetail system and allow operation from a minimum reach of 80 cm to a maximum reach of 400 cm (480 cm with 80 cm add-on extension).
Reach (Minimum)
80 cm (2'7")
Reach (Maximum)*
400 cm (13'1")
Lift Range (Minimum)
52 cm (1'8")
Lift Range (Maximum)
610 cm (20')
Payload (Full Length)**
35 kg (77 lbs)
Tilt Angle
54 degrees
Jib Weight
75 kg (165 lbs)
Jib Mount
Euro Adapter (Mitchell available)
Camera Head
Mitchell 3-Way with integrated Double Swivel
Max Counterweight
160 kg – 8x 20 kg (350 lbs – 8x 44 lbs)
* 480 cm (15'9") with 80 cm Add-on Extension at 20 kg Payload
** up to 60 kg (132 lbs) in Shorter Setups

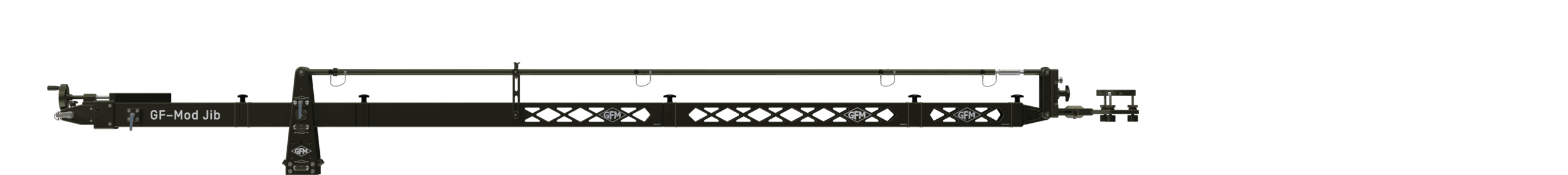

Reach → 400 cm
150 cm + 120 cm + 50 cm + 35 cm Nose
Reach → 350 cm
150 cm + 120 cm + 35 cm Nose
Reach → 280 cm
150 cm + 50 cm + 35 cm Nose
Reach → 230 cm
150 cm + 35 cm Nose
Reach → 250 cm
120 cm + 50 cm + 35 cm Nose
Reach → 200 cm
120 cm + 35 cm Nose
Reach → 130 cm
50 cm + 35 cm Nose
Reach → 80 cm
35 cm Nose
Reach → 480 cm
150 cm + 120 cm + 50 cm + 80 cm (Add-on) + 35 cm Nose
→ GF-Mod Jib (GF-7900)
→ 80 cm Add-on Extension for GF-Mod Jib (GF-7901)
→ Short Counterweight Arm for GF-Mod Jib (GF-7902)
→ GF-Mod Jib Balancing Weight (GF-7905)
→ 7x 20 kg (44 lbs) Counterweight
→ 2x 10 kg (22 lbs) Counterweight
→ Transport Case 175 x 67 x 70 cm (K-1563)
→ Add-on Tray for GF-Mod Jib Transport Case (K-1563/1)
→ Transport Solution for Counterweights
Modular Design. Maximum Flexibility.
A setup just the way you need it. The 150 cm, 120 cm and 50 cm extension modules are connected through our innovative play-free dove tail system – enabling operators to work with a minimum reach of 80 cm up to a maximum reach of 400 cm in a regular setup. Add-on for more reach. By adding the 80 cm add-on extension, the GF-Mod Jib's maximum reach may be extended up to 480 cm. GF-Mod Jib Key Features
Mitchell 3-Way with Integrated Double Swivel
The GF-Mod Jib allows for overslung as well as underslung operation of the jib arm with an integrated Mitchell 3-Way Double Swivel.
Counterweight Arm with Crank Mechanism
The GF-Mod Jib features a crankable telescopic counterweight arm for comfortable adjustments of the arm.
Ultra Lightweight Construction
The GF-Mod Jib's design philosophy puts an emphasis on its extremely lightweight construction while also providing maximum stability.
Backlash-free Dovetail System
The different modules of the GF-Mod Jib connect through our innovative backlash-free dove tail system, making the jib arm extremely sturdy.
